CVB1540 Fixed Screen

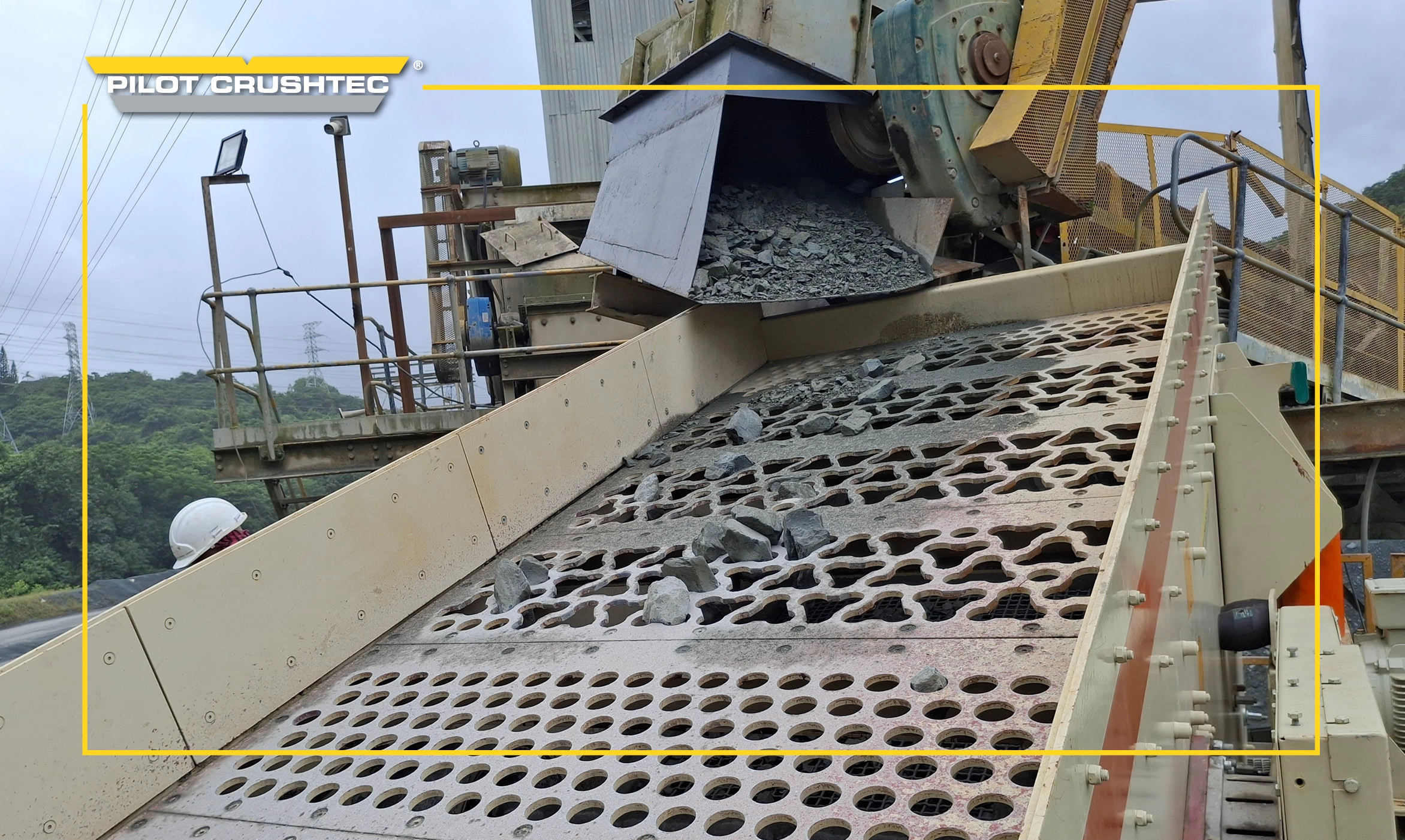

The Metso inclined CVB1540 3M screen provides efficient, reliable, and compact performance for mid-range screening tasks. Equipped with a 1.5 m × 4.0 m screening surface (6.0 m² total area), it delivers balanced capacity and precision in a highly portable design. Engineered for consistent material flow and accurate separation, this durable 3-deck module integrates seamlessly into both stationary and mobile plants.

The CVB1540 3M is a modular 3-deck screen optimised for secondary/tertiary screening, delivering precise classification of finer materials following primary crushing.
Ideal for quarries, gravel pits, smaller mining operations, crushing contractors, and portable applications, the CVB1540 3M ensures dependable operation in space-constrained or moderate-throughput environments.

All models in the Compact CVB Series™ are inclined, circular-motion vibrating screens designed for efficient screening in aggregates, quarries, mining, and portable applications. Optimized for high portability and rapid setup, they support adjustable stroke, RPM, and screening media (tensioned or modular snap-on panels) for versatile performance.

metso logo

Product Downloads

Product Features

icon

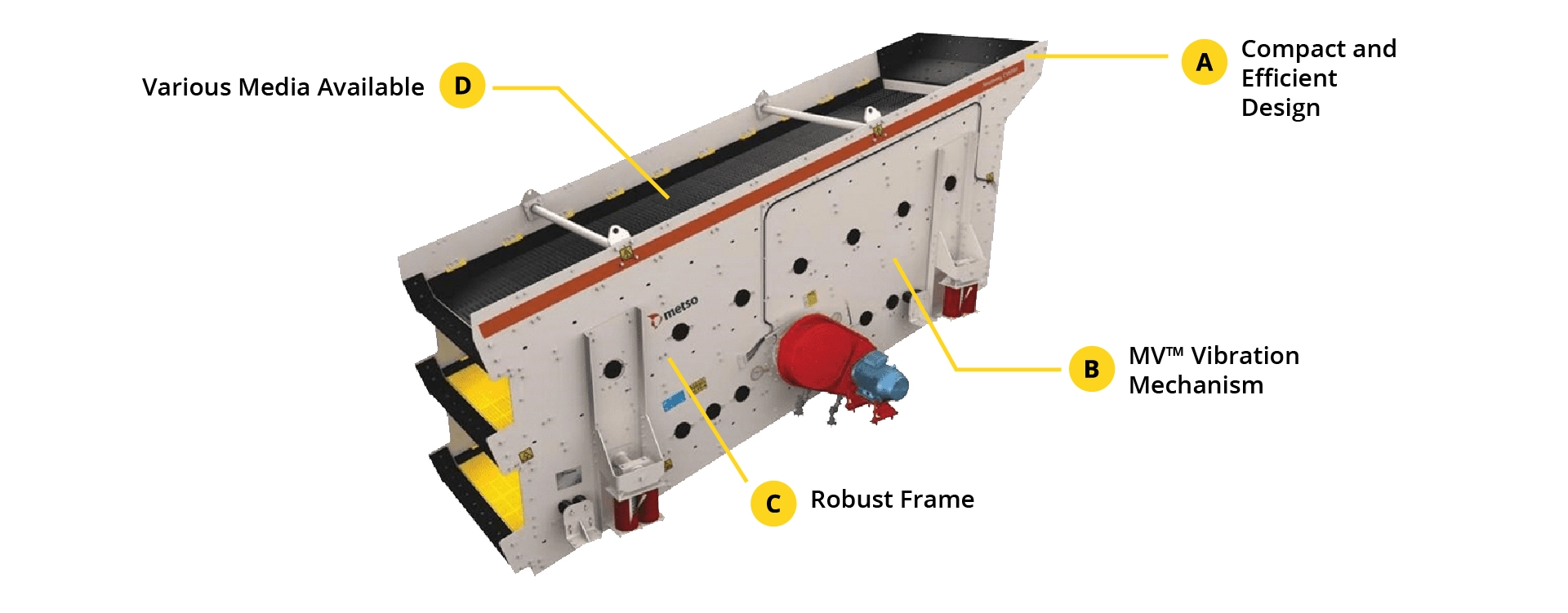

The CVB1540 3M screen delivers high-efficiency screening in a minimal footprint

icon

Equipped with Metso’s reliable Modular Vibrators (MV2™), flange-mounted to side walls and synchronised via cardan shaft, ensuring smooth, energy-efficient circular motion and long-term operational reliability.(see red area in center)

icon

The S2.11, with its wide fines conveyor, excels in processing high volumes of material while ensuring accurate separation.

icon

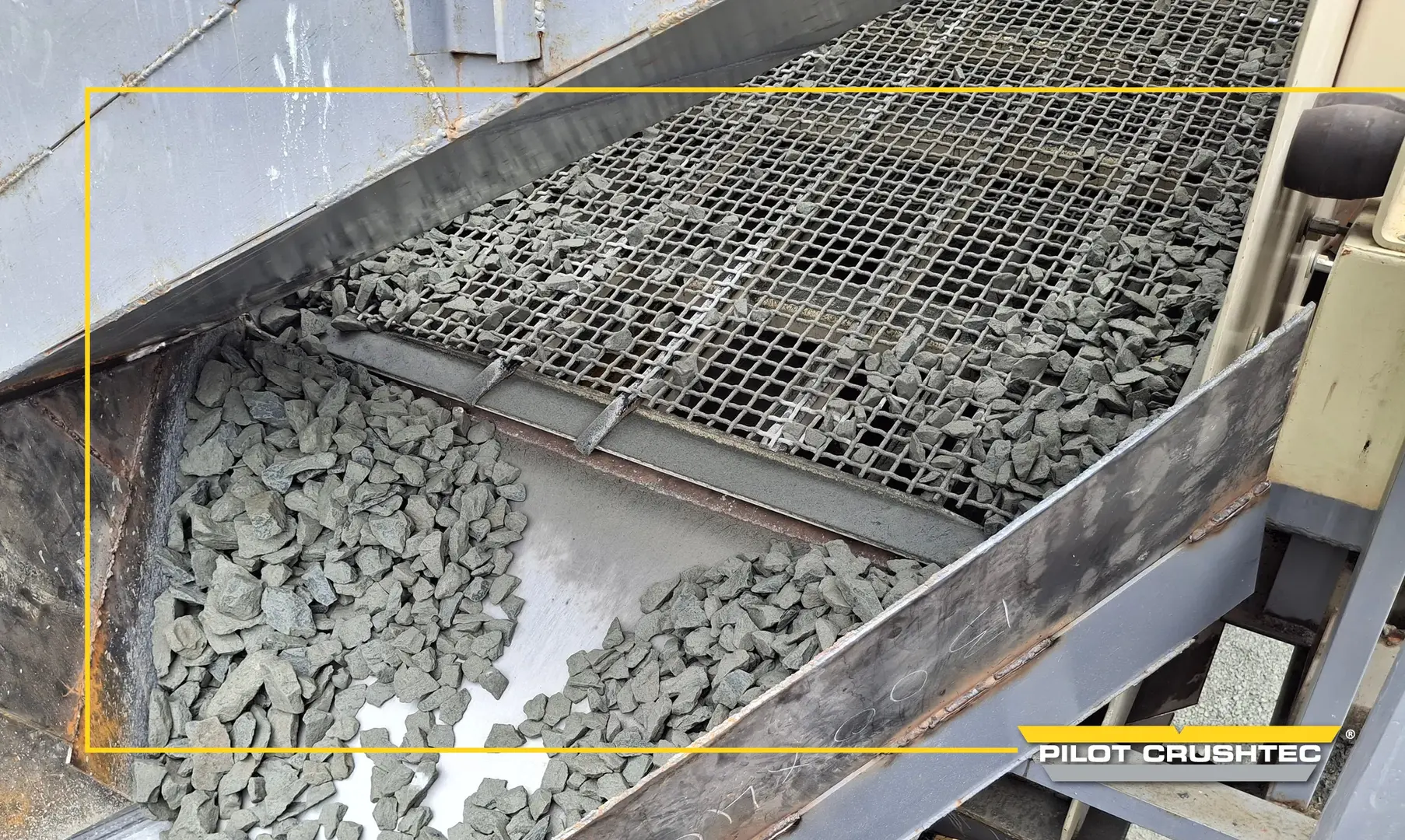

Configured with three decks and fully compatible with a wide range of media types (tensioned wire, polyurethane, rubber, or modular panels) to adapt to diverse material and application needs.

Extended Benefits

01Rapid Setup & Deployment

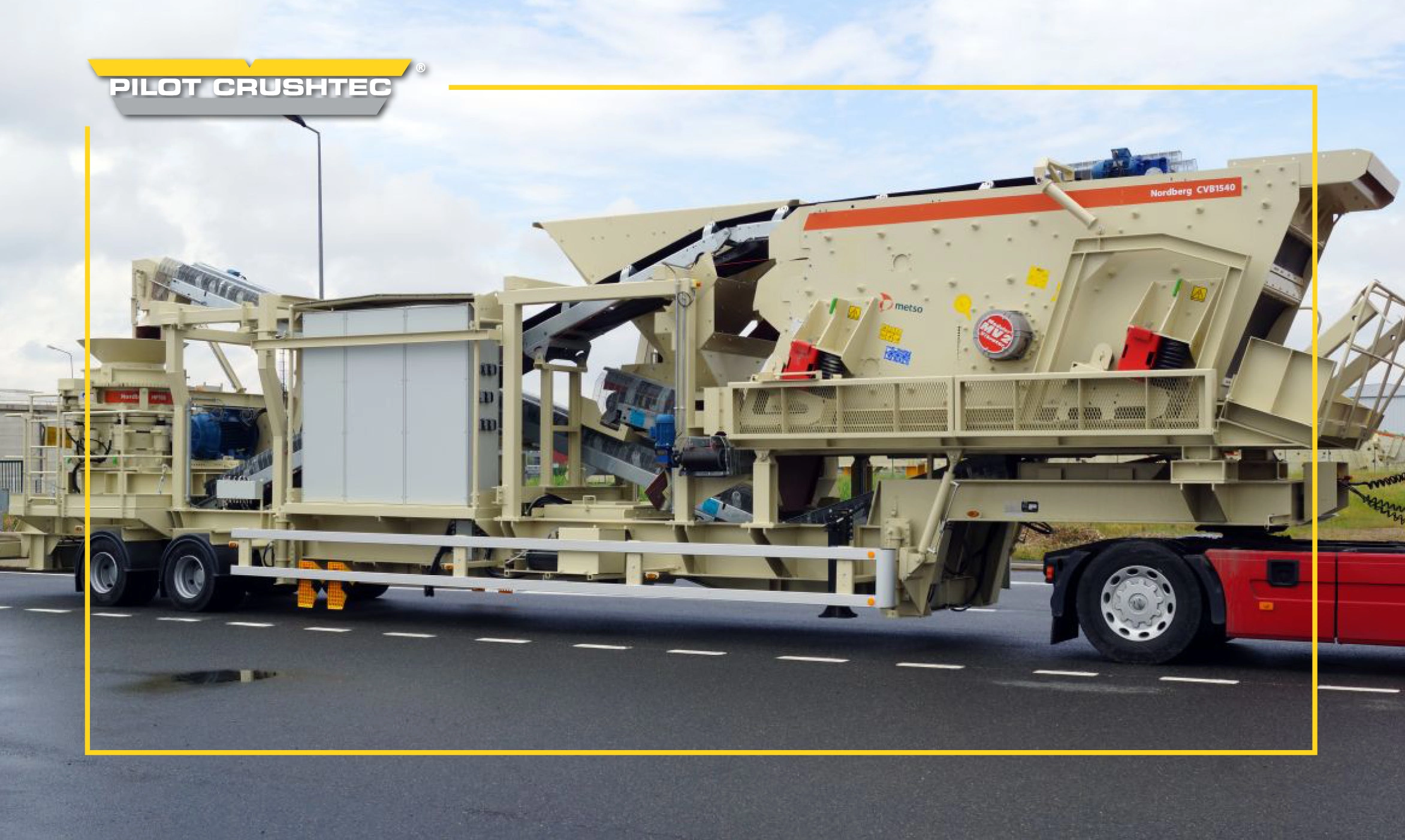

Engineered for fast installation and immediate operation. The lightweight, compact design of the CVB1540 screen ensures seamless performance in both fixed plants and mobile fleets – ready to screen in minutes.

02Unmatched Uptime

Reliability Powered by Metso’s field-proven technology and high-grade components, the CVB1540 screen delivers consistent operation with minimal unplanned stops.

03Cost-Efficient Operation

Advanced vibration efficiency and low-maintenance architecture reduce power consumption, servicing needs, and total cost of ownership.

04Superior Screening Accuracy

Optimized material stratification and precise cut points produce cleaner fractions – boosting product quality and downstream process efficiency.

05Prolonged Service Life

Heavy-duty build, abrasion-resistant liners, and robust MV2™ vibrators ensure exceptional durability under harsh, high-load conditions.

06Broad Application Flexibility

Adapts effortlessly to a wide range of materials – from fine sands and aggregates to recycling streams and industrial minerals.

07Safe & Service-Friendly

Design Intuitive access platforms, guarded moving parts, and quick-change components make maintenance safer and faster.

08Seamless Plant Integration

Modular, plug-and-play construction fits effortlessly into new plants or retrofits into existing crushing circuits.

Product Information

TECHNICAL SPECIFICATIONS
Screen Dimensions (W × L) 1.5 m × 4.0 m
Screening Area (per deck) 6.0 m²
Total Screening Area 18.0 m² (3 decks)
Number of Decks 3
Incline Angler 18° (adjustable options available)
Feed Size (Max) 75 mm (top deck opening)
Overall Height (Transport) ~3.2 m (approximate; fits standard trailers)
Transport Length ~5.5 m (including feed box)
Transport Width 2.0 m
Performance & Operation
Capacity (Indicative Max Feed) 300 t/h
Stroke (Adjustable) 8–12 mm
Speed (RPM) 900–1,000 (adjustable)
Motion Type Circular motion
Vibration Frequency Variable via RPM adjustment
