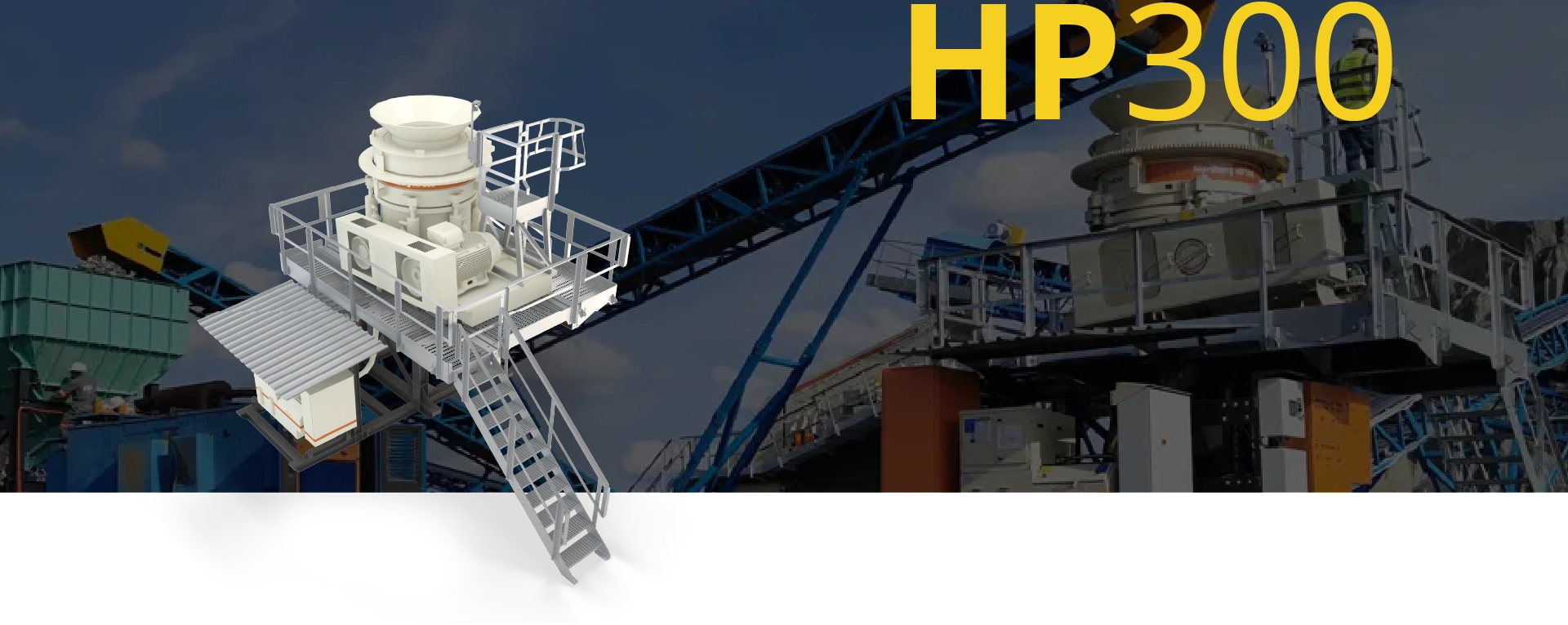

Pilot Modular Metso HP300 Cone Crusher Module

HP300Modular Cone Crusher

The Pilot Modular Metso HP300 Cone Crusher Module is a complete plug and play all-round secondary and tertiary cone crusher module.

The Module is supplied complete with a heavy-duty skid frame structure, galvanised handrails, staircase, composite Non-slip grating, discharge chute, inspection platform and sheltered structure for Lubrication unit and IC Control module.

This pre-designed module integrates seamlessly into Pilot Modular plants or alternatively into existing plants for replacement or expansion of production capabilities. The Metso HP300 cone crusher is widely known for being an exceptional machine for production when product shaping or when producing high quality aggregates and mineral ore.

This plug and play module is designed for ease of assembly and installation on-site, longevity, access, ease of maintenance and operations on site.

metso logo

Product Downloads

Product Features

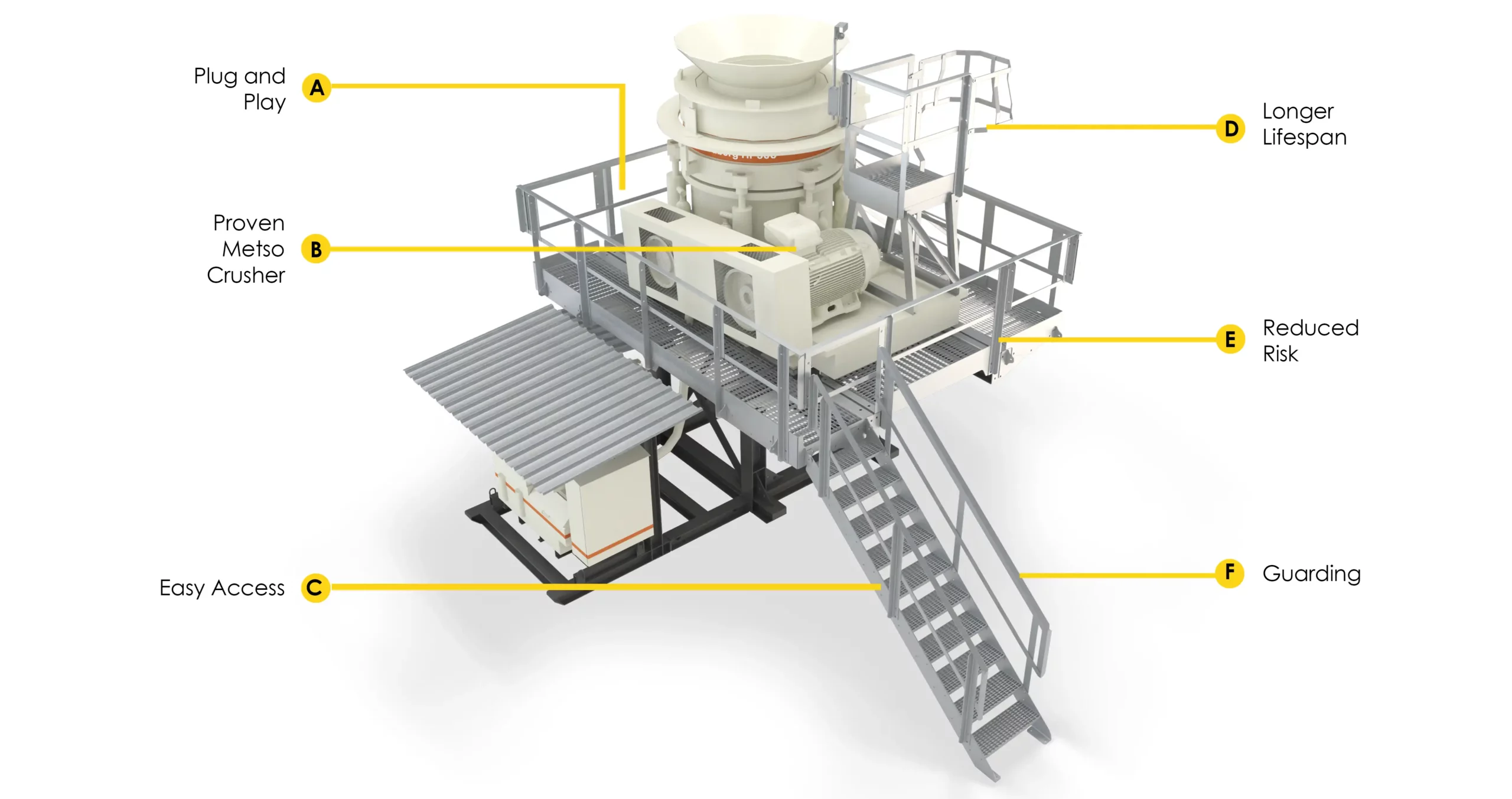

Pilot Modular Metso HP300 Cone Crusher Module
icon

Ready to run, the module is an all-inclusive package that is simple to install, connect power supply and begin running.

icon

The Metso Nordberg HP cone crusher reigns supreme with unmatched efficiency, producing finer aggregates in fewer stages to slash energy costs by up to 20% while delivering reliable, high-output performance in the toughest mining operations.

icon

With a walkway designed around the crusher, access to the crusher for maintenance is simple and easy for operators and maintenance teams.

icon

Galvanised structures reduce corrosion and maintenance on the structures and increase lifespan of the primary structures in and around the feeder and crusher.

icon

Having an all-encompassing proven design for the cone crusher module means that you reduce the risk of ‘one-off’ bespoke designs trying to integrate feeders, crushers and discharge conveyors into a production environment.

icon

Safety first! All guarding and covers are made from robust materials to ensure safety for operators and a lightweight overall design.

Extended Benefits

01Less Crushing Stages

The Metso HP300 creates a streamlined workflow, where a single HP300 can often replace multiple traditional crushers, reducing equipment costs and simplifying plant layouts.

025 Year/10,000-hour Warranty

No other warranty in the industry is as comprehensive as the Metso EPS Warranty. Extending the standard warranty from 1 year/2,000 to 2 years/4,000 hours and major components covered from year 1 to year 5.

03Reduced Time Frame

Pre-designed modules are either in stock and available immediately or faster to fabricate and manufacture than having to design and source a bespoke primary module. Reduce the time frame from order to deployment with a Pilot Modular crushing module.

04Tried and Tested

The Pilot Modular Metso HP300 Cone crusher module has been manufactured, deployed and operated on numerous sites across Southern Africa, consistently delivering production.

05Minimize costs and downtime

The HP300’s robust construction and high crushing force result in exceptional reliability, reducing unexpected breakdowns even under harsh conditions like processing abrasive ores.

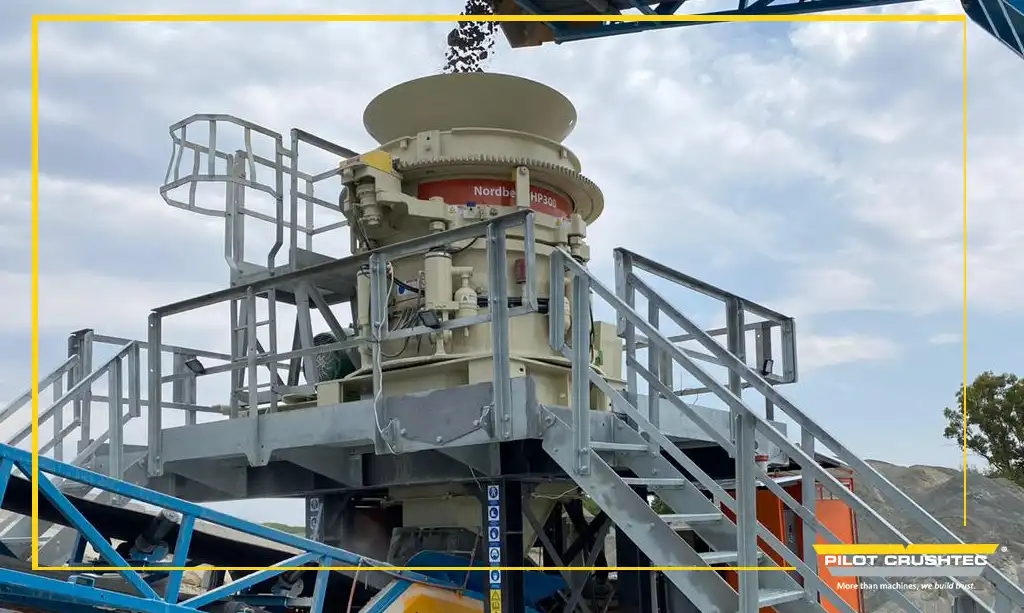

Pilot Modular HP300 Module Feed Material
Pilot Modular HP300 Module Feed Material

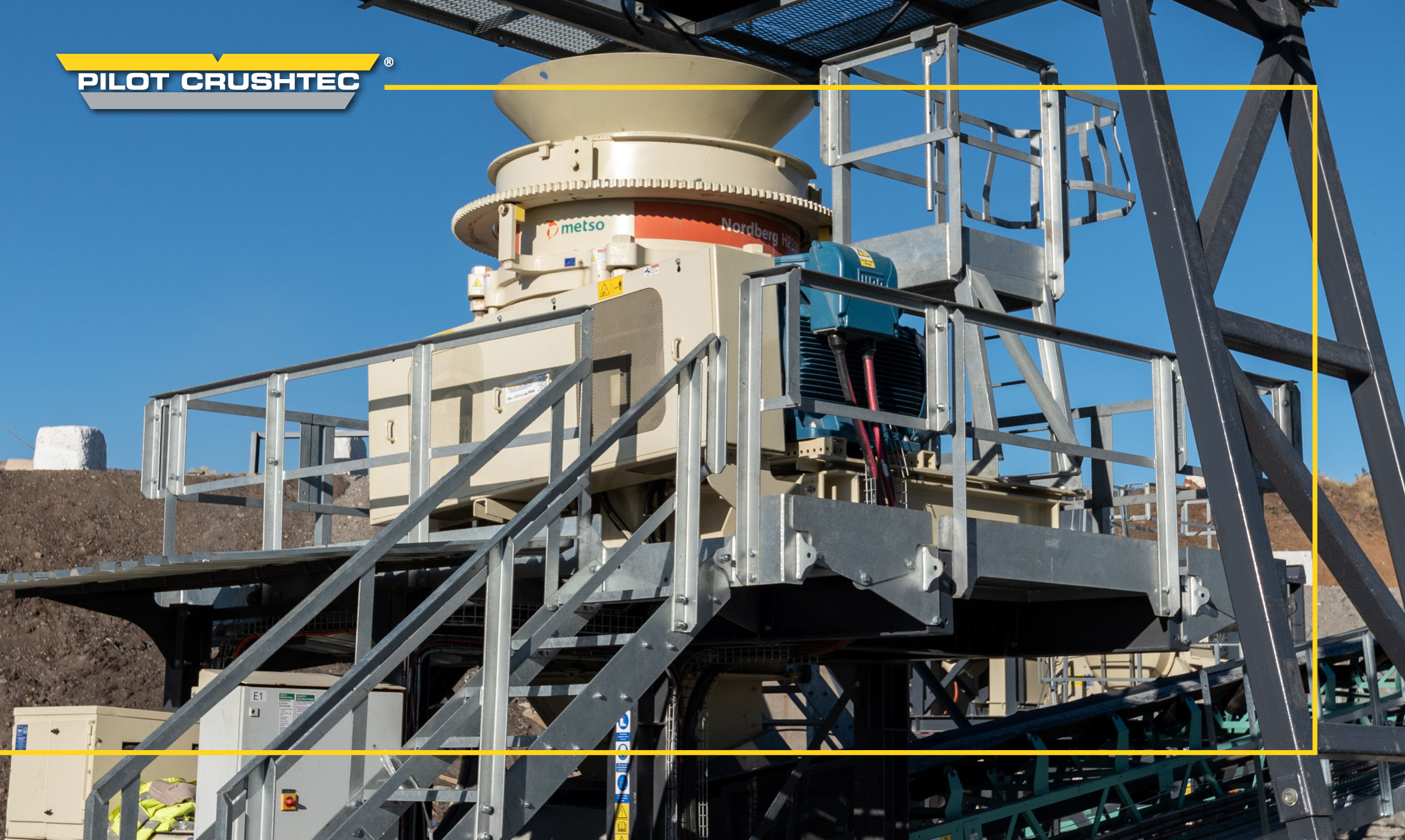

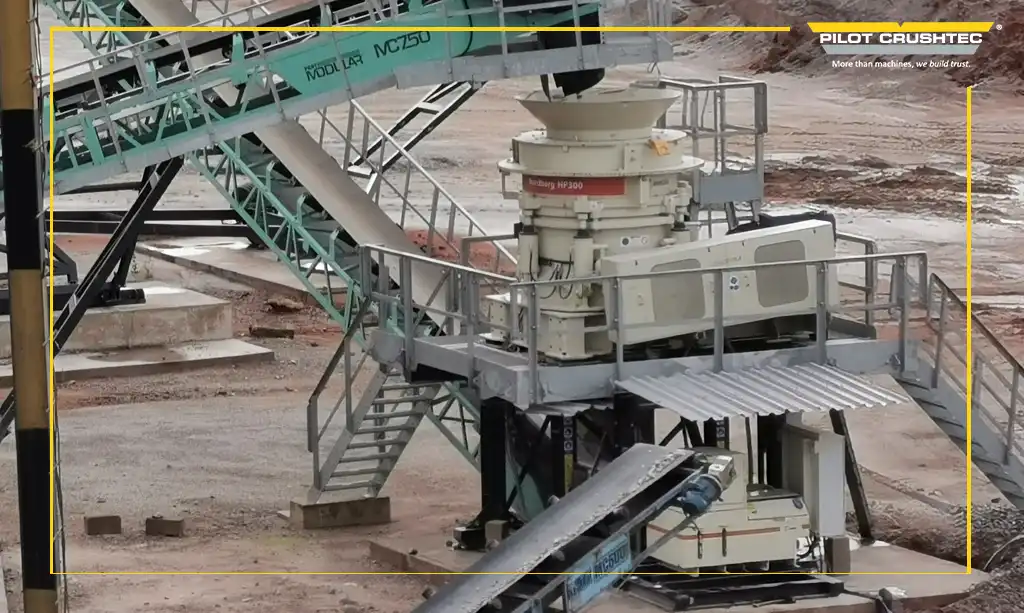

Pilot Modular HP300 Module In Plant

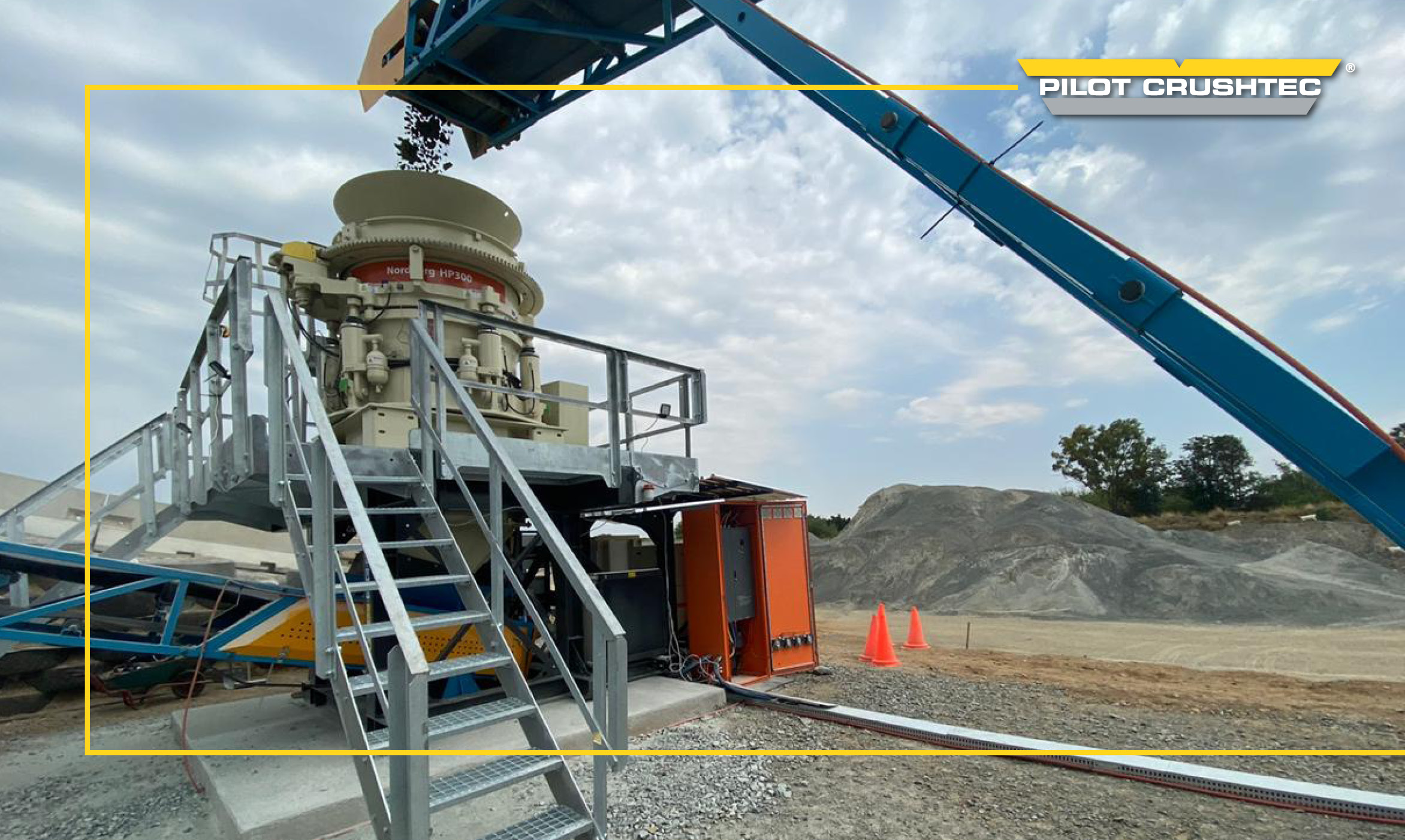

Pilot Modular HP300 Module Installation Aggregates Plant

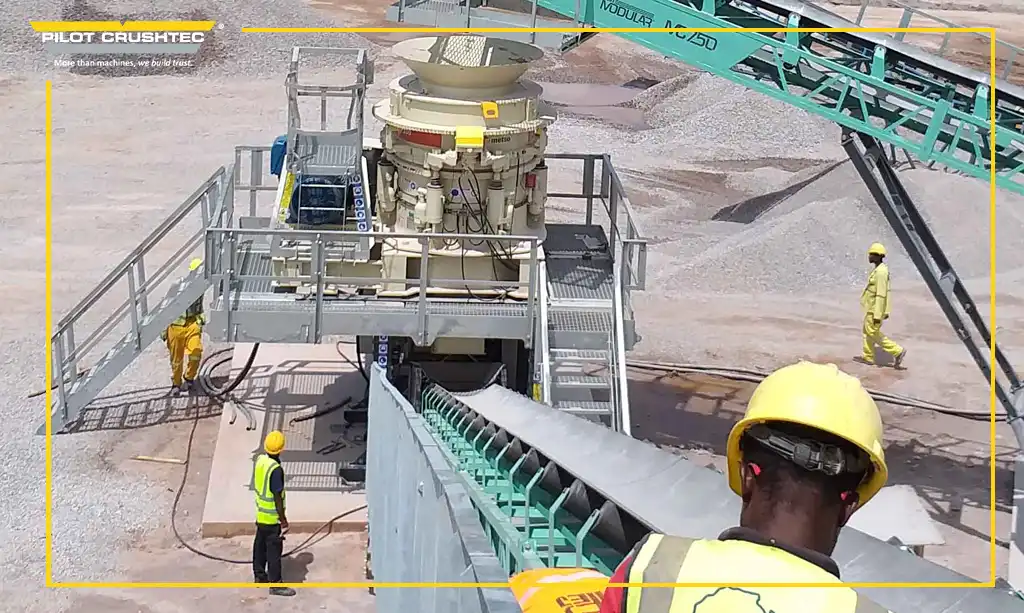

Pilot Modular HP300 Module Installation

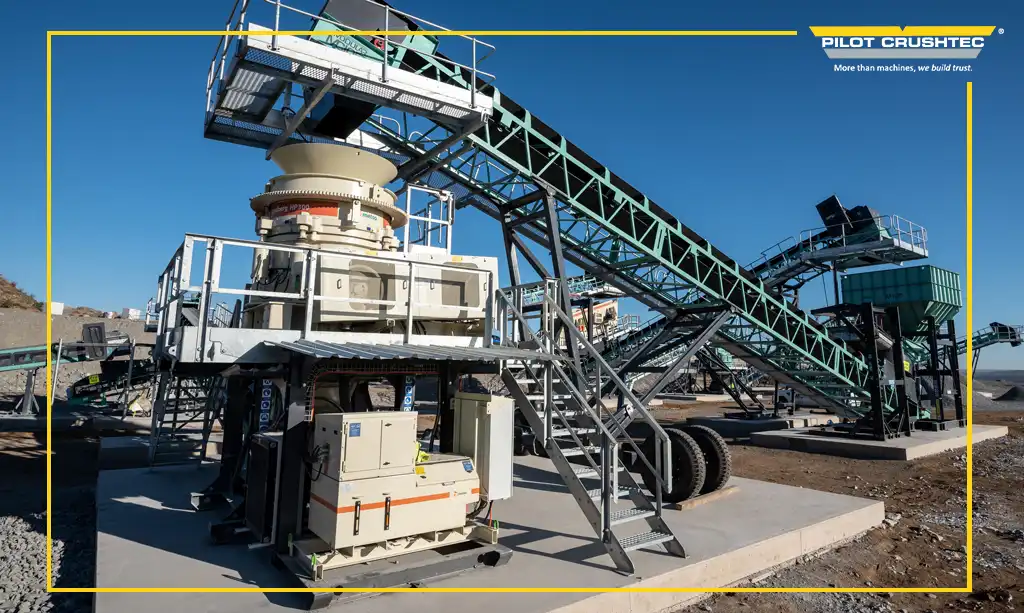

Pilot Modular HP300 Module Processing Plant

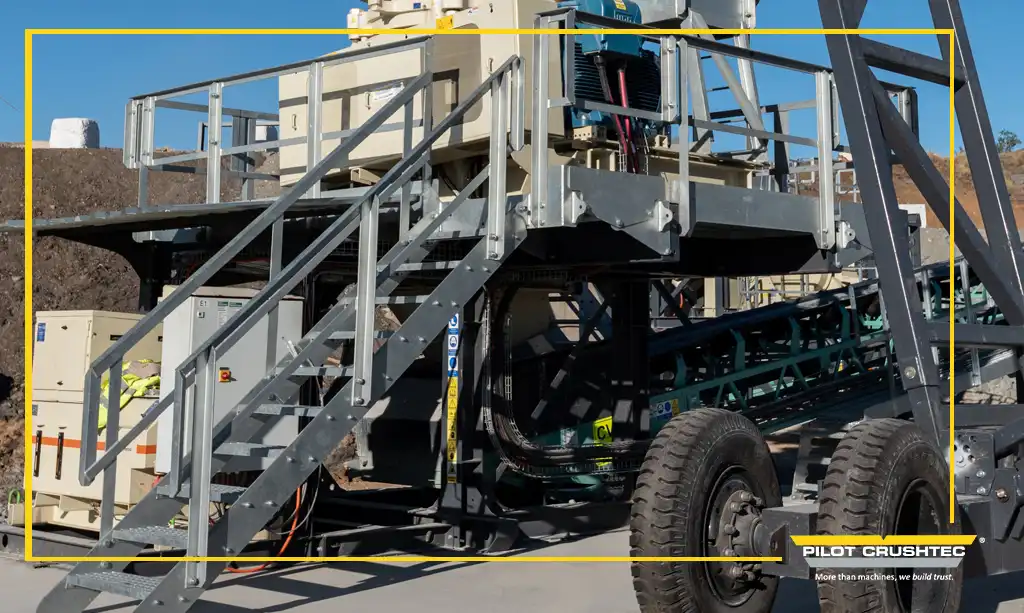

Pilot Modular HP300 Module Skid Structure

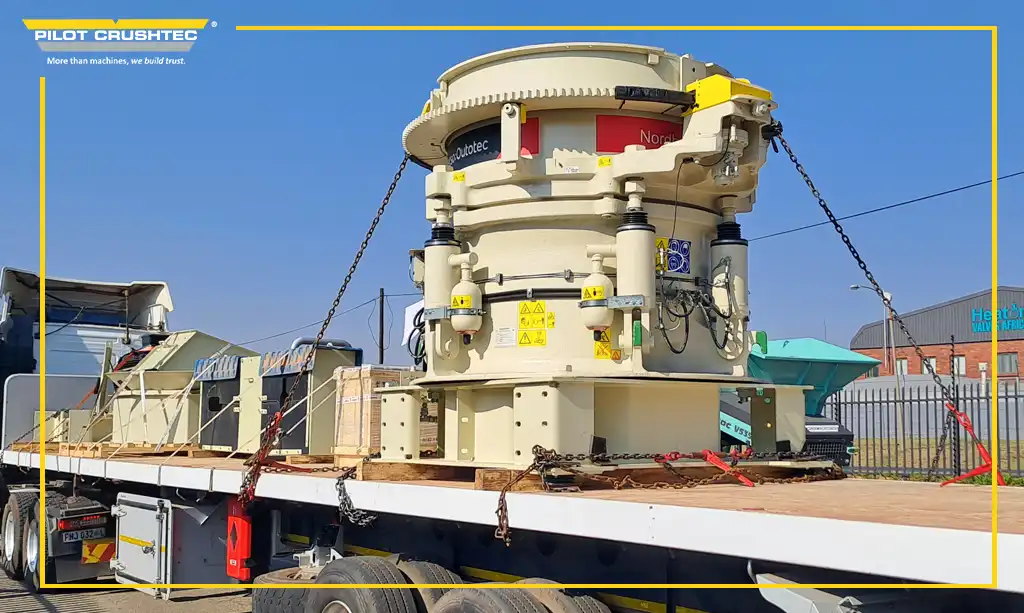

Pilot Modular HP300 Transport Cone Crusher

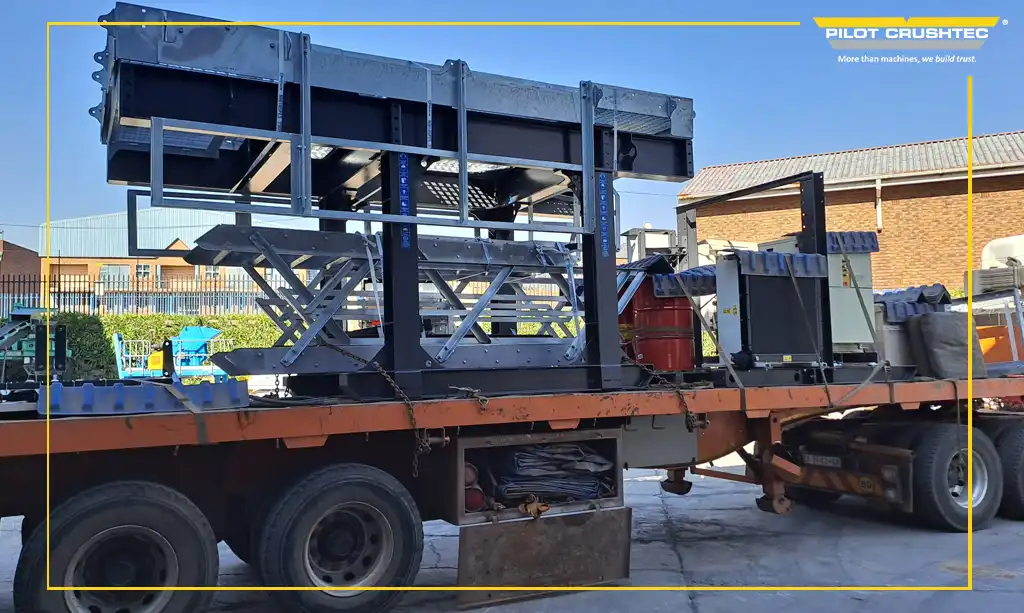

Pilot Modular HP300 Transport

Product Information

CONE CRUSHER: METSO GP300
Head Configuration Standard and Short Head
Head Diameter 1 120mm (44”)
Frame Composite case and fabricated body. Heat treated-Cast steel
Adjustment Threaded bowl. Rotation via hydraulic motor and pinion gear onto a geared ring
Linear Range Interchangeable extra fine, fine, medium, coarse and extra coarse
Lubrication 300l Lubrication system with 1.5kW electric power pack. 1.5kW Air blast cooler. Oil heater. High temperature cut-out. Heater thermostat. Cooler thermostat. Lubrication oil pressure and flow switches. Dual oil filtration.
Tramp Relief Automatic, hydraulic cylinders with relief valve and remote accumulator
Maximum Feed Opening 107mm (STD fine liner), 150mm (STD medium liner), 211mm (STD coarse liner), 233mm (STD Extra coarse liner)
25mm (SH Extra fine liner), 25mm (SH fine liner), 53mm (SH medium liner), 77mm (SH coarse liner)(Recommended maximum reduction ratio 4:1)
Close side setting (CSS) 13mm (STD fine liner), 16mm (STD medium liner), 20mm (STD coarse liner) to 25mm (STD Extra coarse liner)
6mm (SH Extra fine liner), 6mm (SH fine liner), 8mm (SH medium liner) to 10mm (SH coarse liner)
Capacity 115mtph to 440mtph
Operating Speed Application dependent
POWER 220kW 380V electric motor
SKID FRAME
FRAME Heavy duty support structure
ACCESSORIES Access ladder, handrails & safety guards, crusher discharge chute, full access maintenance platform
ESTIMATED WEIGHT
TOTAL 23,450kg
