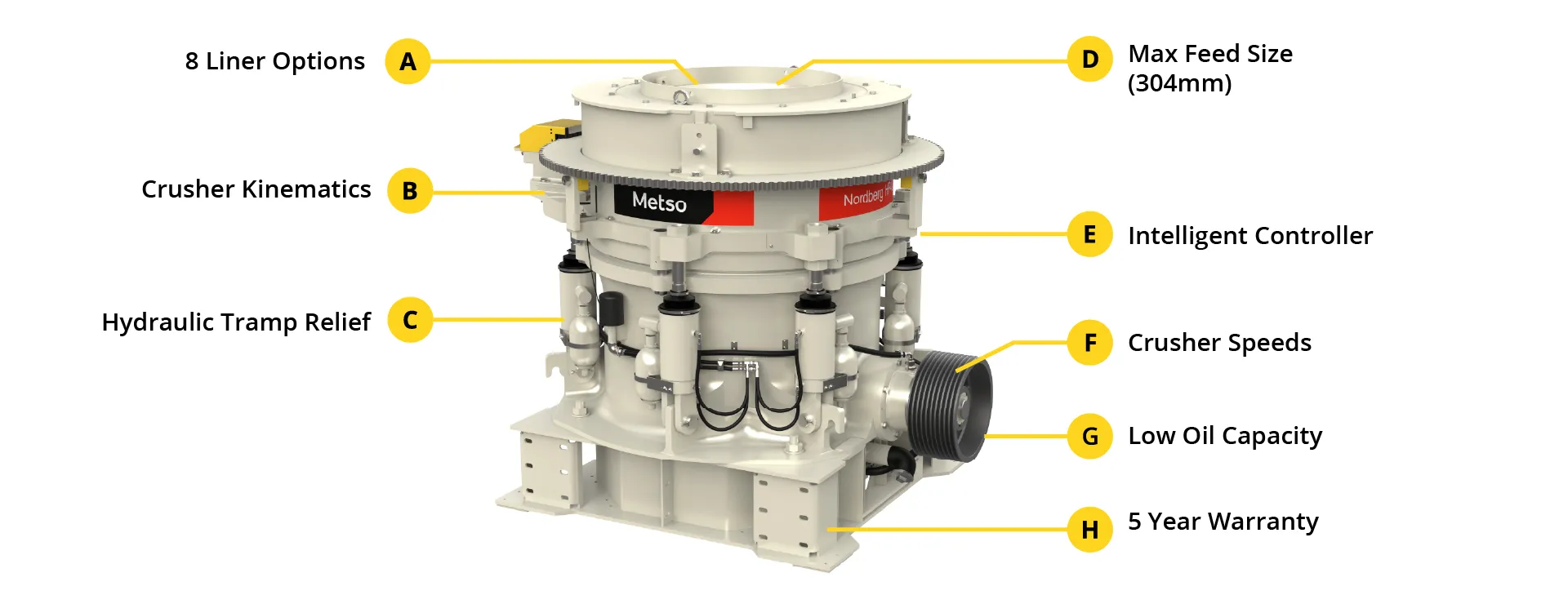

Product Features
With eight liner profile options, the HP400 allows for tailored configurations to meet specific operational requirements – enhancing efficiency, product quality, and cost-effectiveness.
The kinematics of the HP400 cone crusher are centred around a combination of crusher speed, throw, crushing forces, and cavity design, which work together to optimise performance. The cone crusher can be configured in either a standard or reduced version. The reduced version decreases the stroke length, which powers the crusher’s capacity and power consumption.
The HP400 offers dual-acting hydraulic tramp-release cylinders allowing the crusher to safely pass uncrushable material and deliver a large clearing stroke when required.
The HP400 cone crusher accommodates a maximum feed opening of approximately 304 mm. The closed side setting (CSS) is adjustable – typically ranging from 92 mm to 111 mm – depending on the liner configuration and application, allowing for optimised product size and throughput.

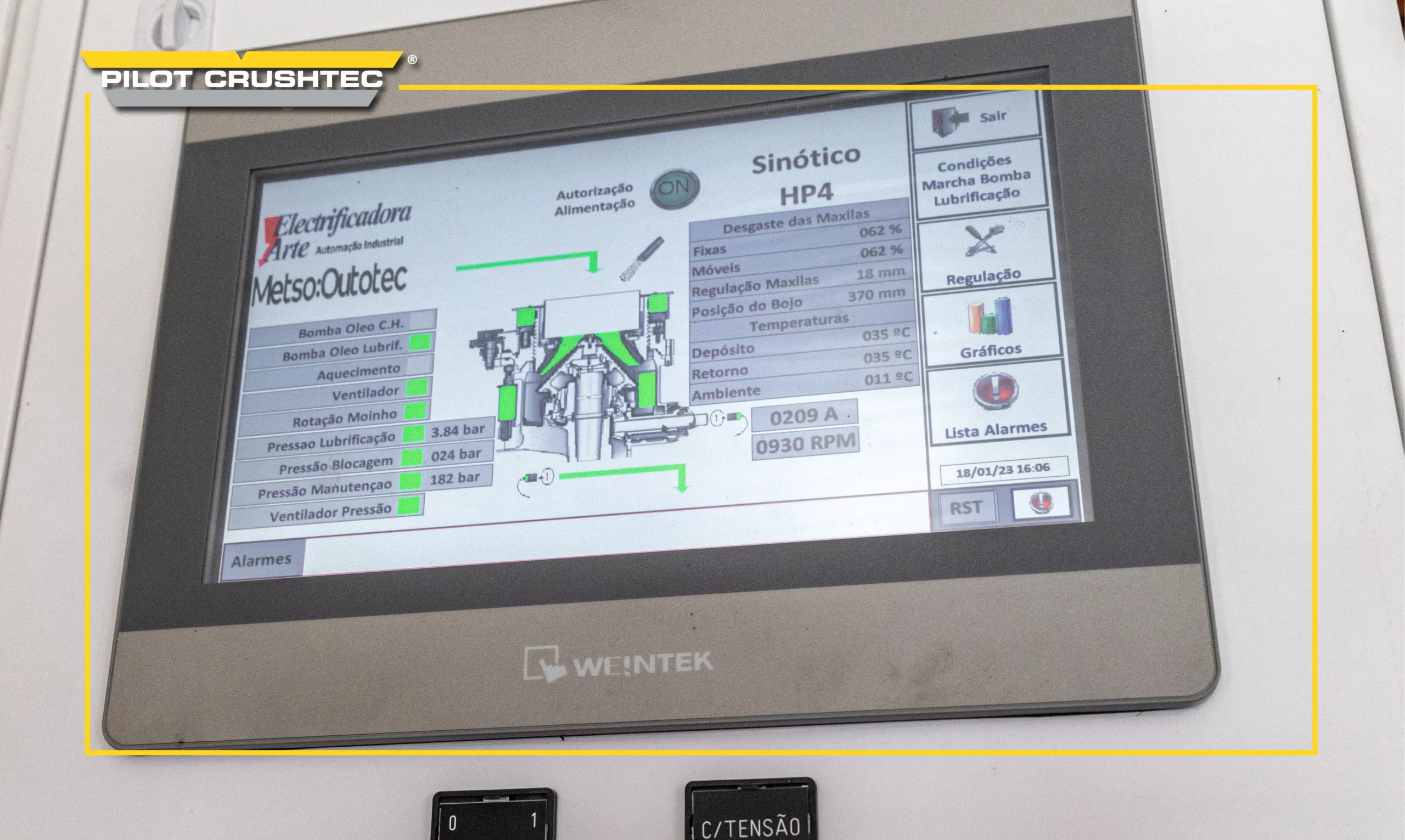

Featuring the advanced Metso IC™ intelligent controller, the HP400 cone crusher is designed to optimise crushing performance through real-time monitoring and automated adjustments.
The crusher speed for the HP400 typically ranges between 750 and 1,200 RPM, depending on the configuration and the application.
The HP400 cone crusher features a low-capacity lubrication system that enhances operational efficiency and lowers operating costs. By requiring less hydraulic oil, the system reduces environmental impact and simplifies maintenance and oil management.
No other warranty in the industry matches the coverage of the Metso EPS Warranty. It extends the standard warranty from 1 year/2,000 hours to 2 years/4,000 hours, with major components additionally covered from year 1 through year 5.
