Product Features

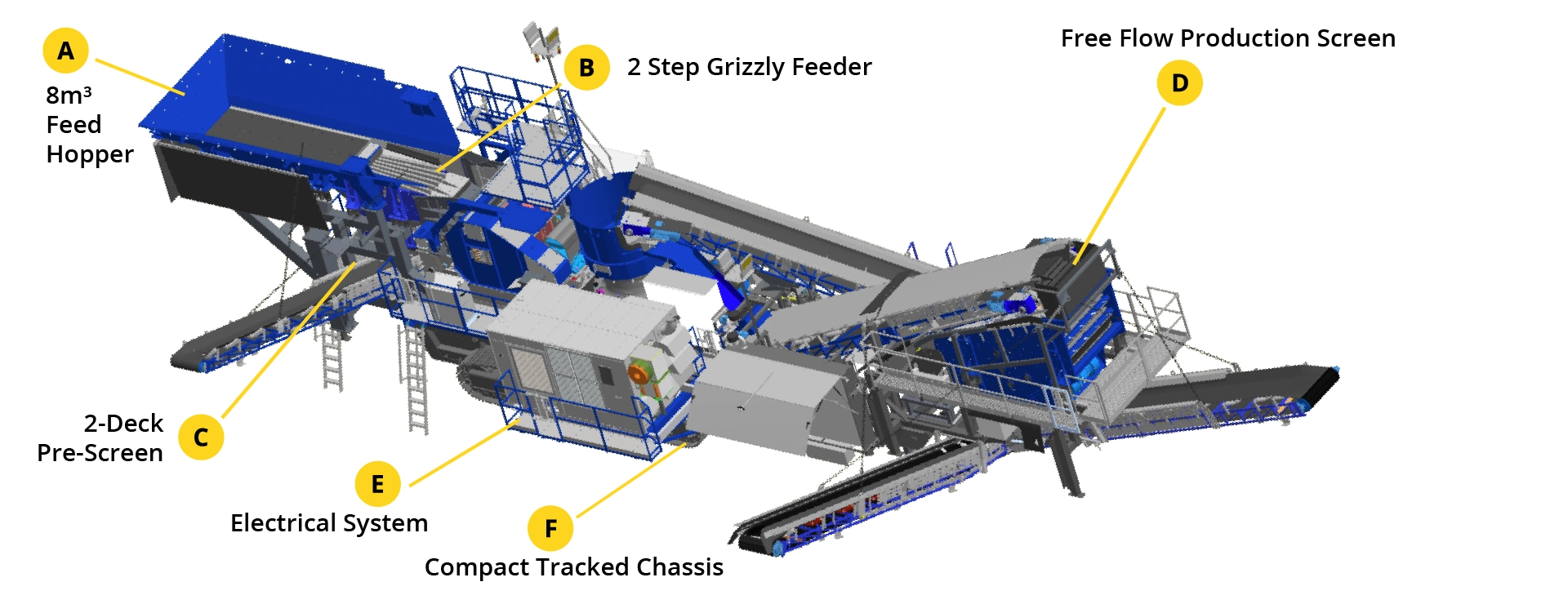

The L120-330 features an 8m³ feed hopper, extendable to 18 m³, with thick Hardox-lined walls and a removable feeder/hopper section for durable, high-capacity material handling and easy transport.

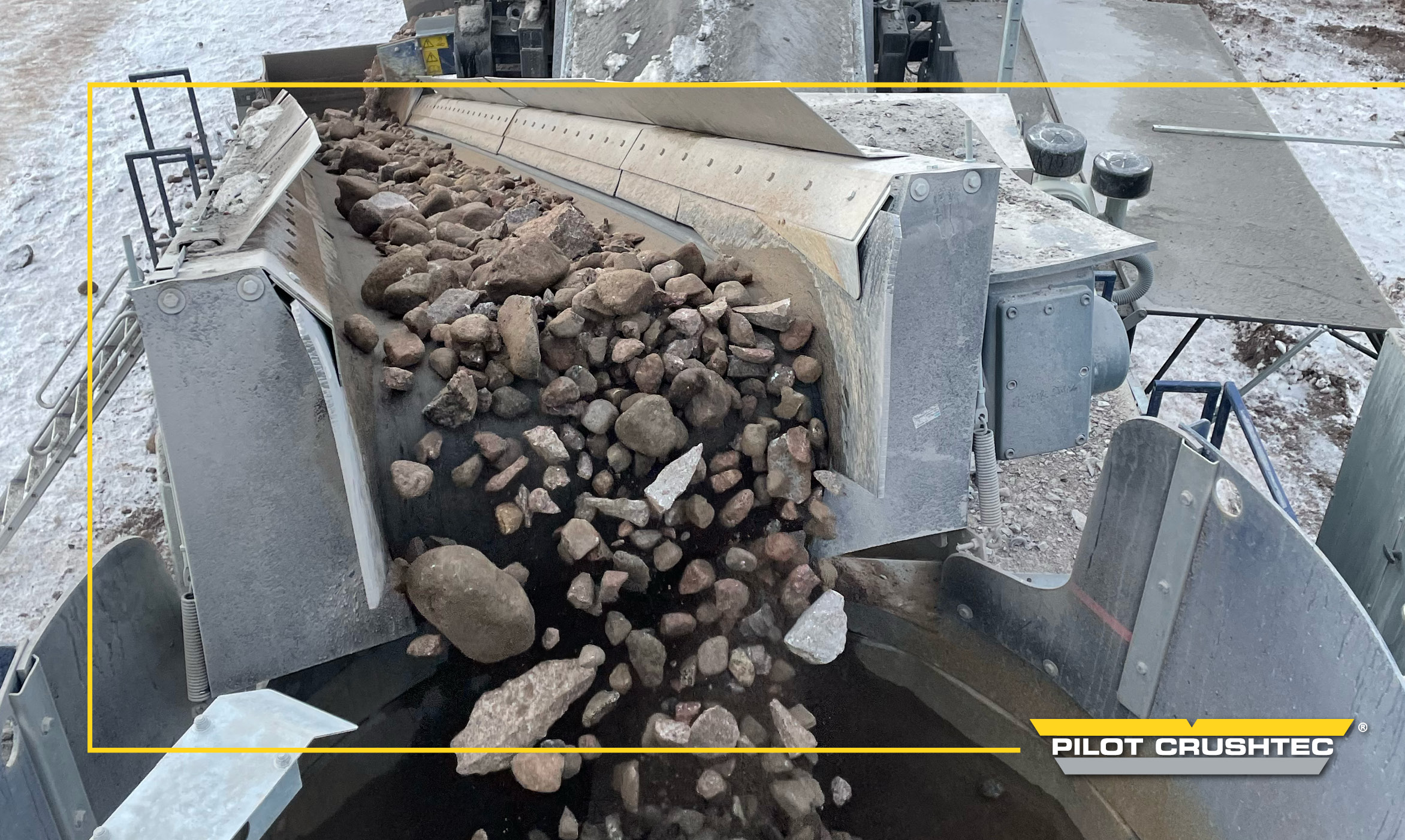

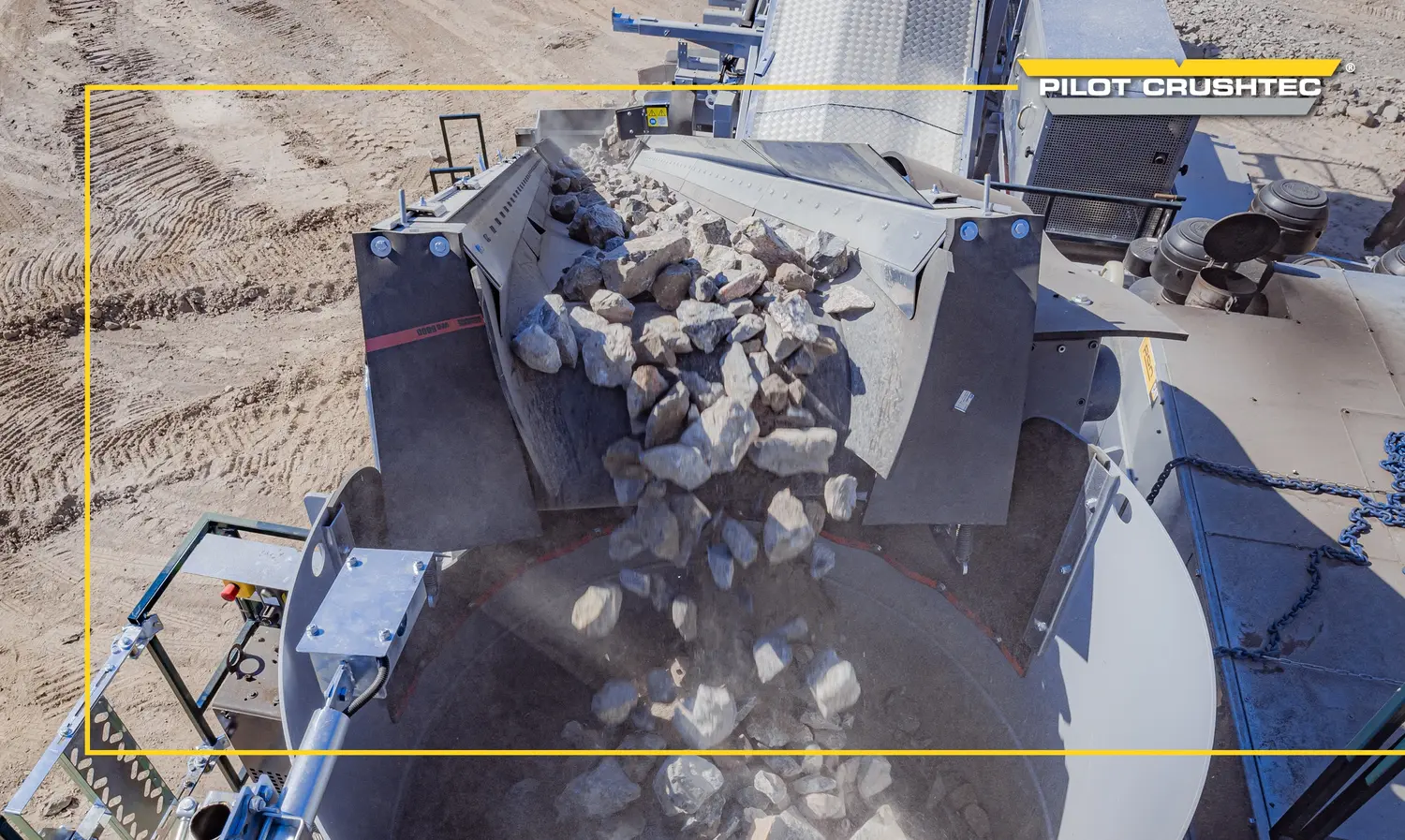

A robust 2-step grizzly feeder with replaceable bars/cassettes, rubber-lined pan, large discharge, 2×9.8 kW motors, screening deck with rubber cloth, and frequency converter/level sensor for optimal crusher feeding.
The pre-screen, with a 2-deck design, vibrates independently to remove fines efficiently, maximizing process utilization even when the feeder stops.

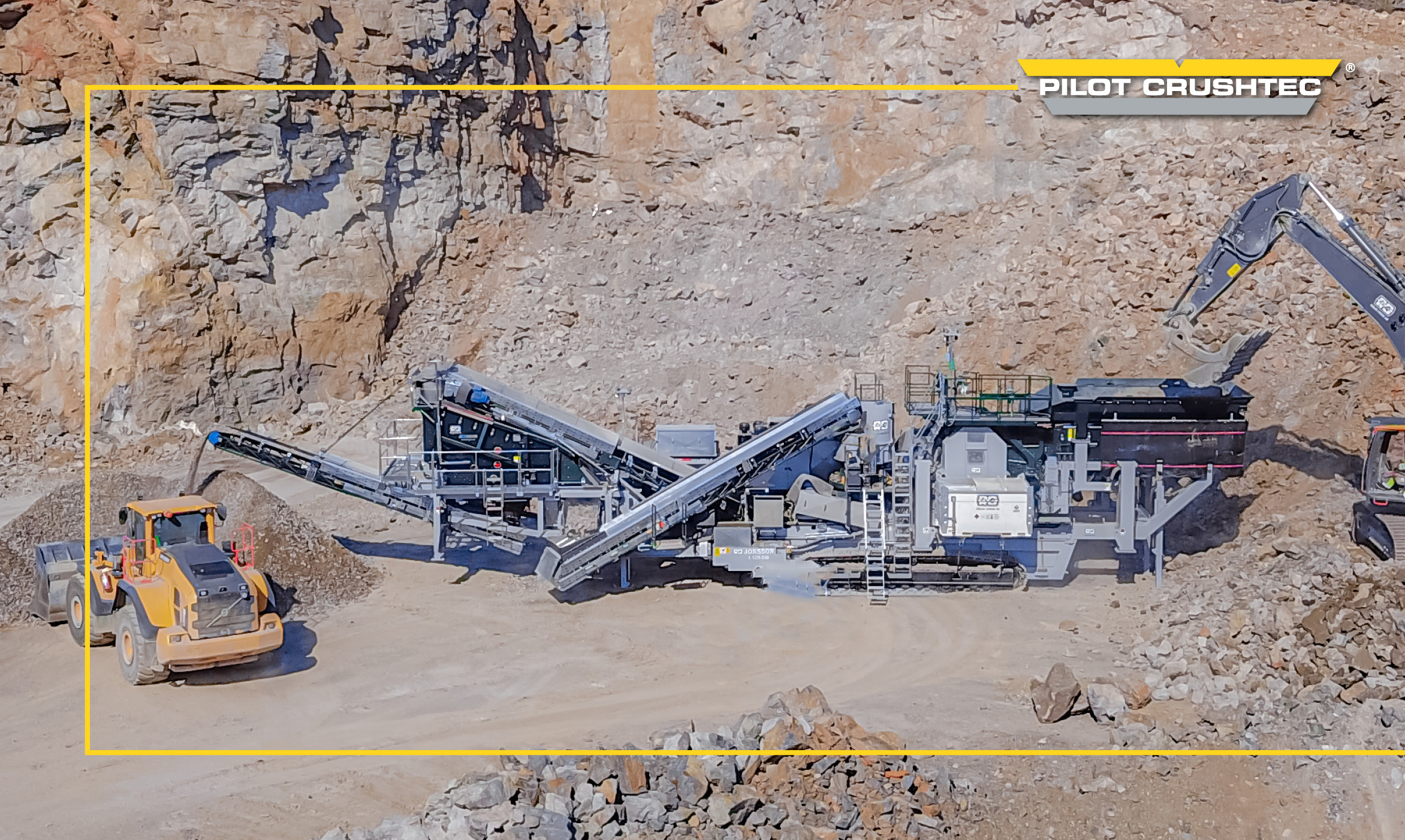

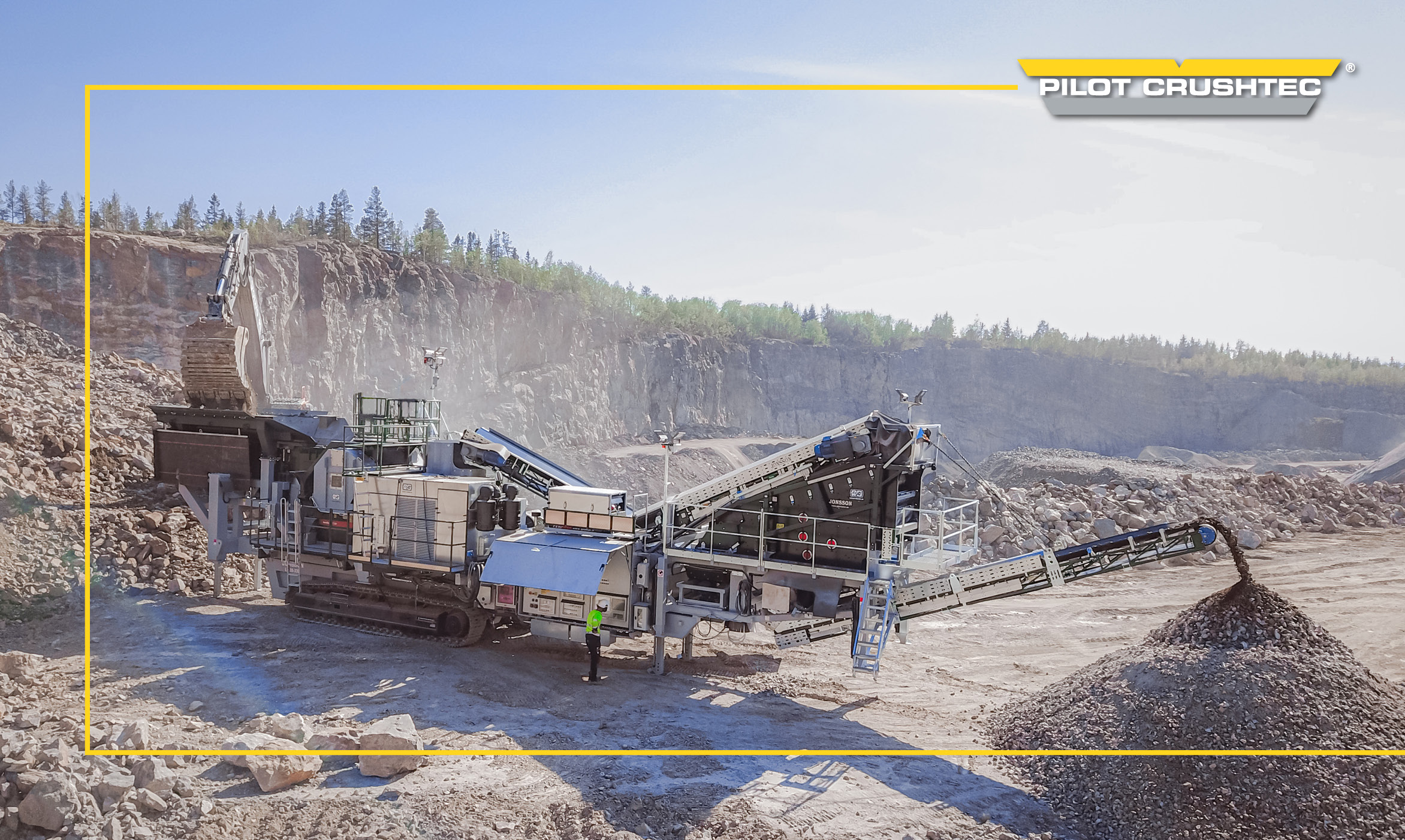

Combines Nordberg® C120 (up to 800 mtph) and GP330 (up to 420 mtph) crushers on one chassis for streamlined crushing.

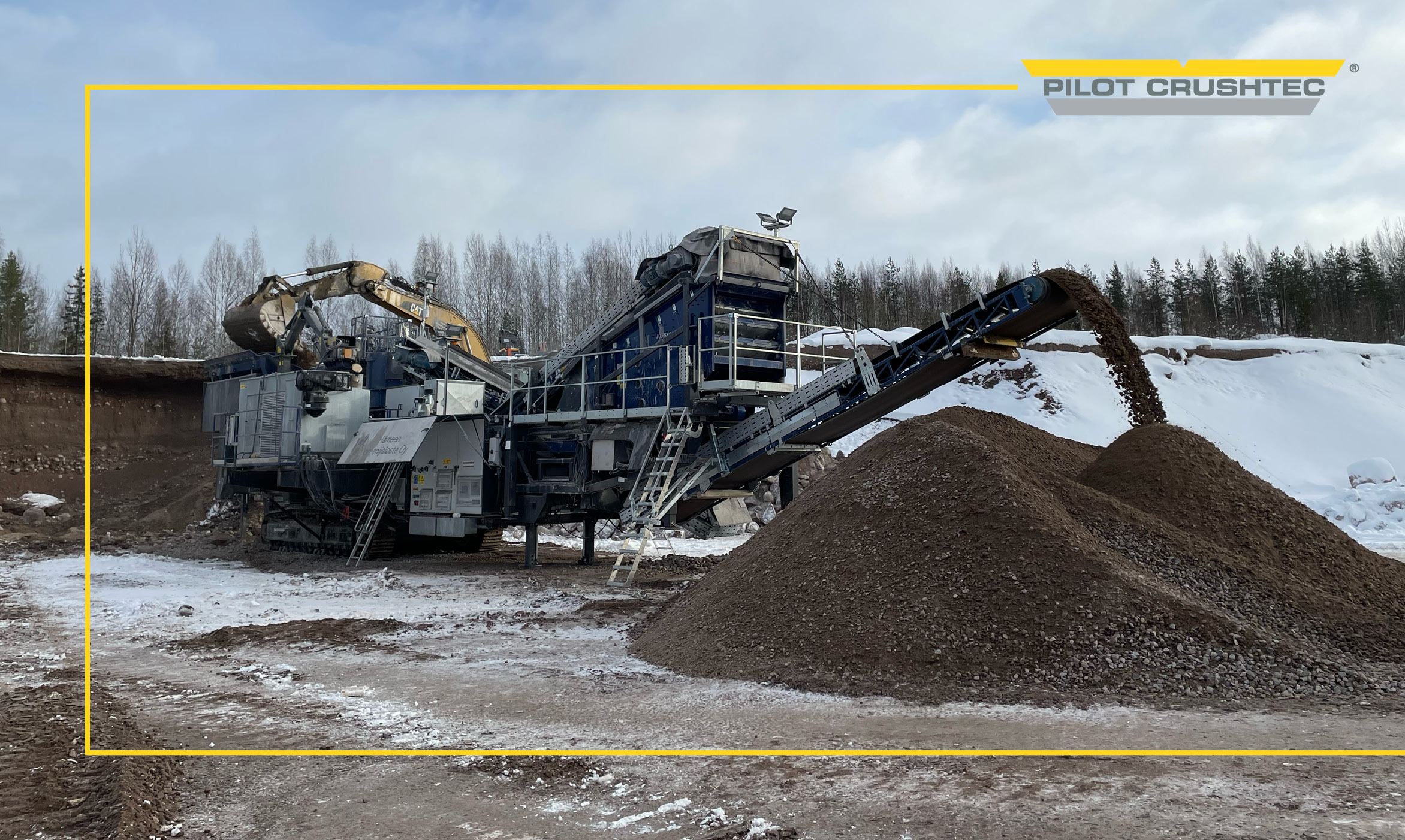

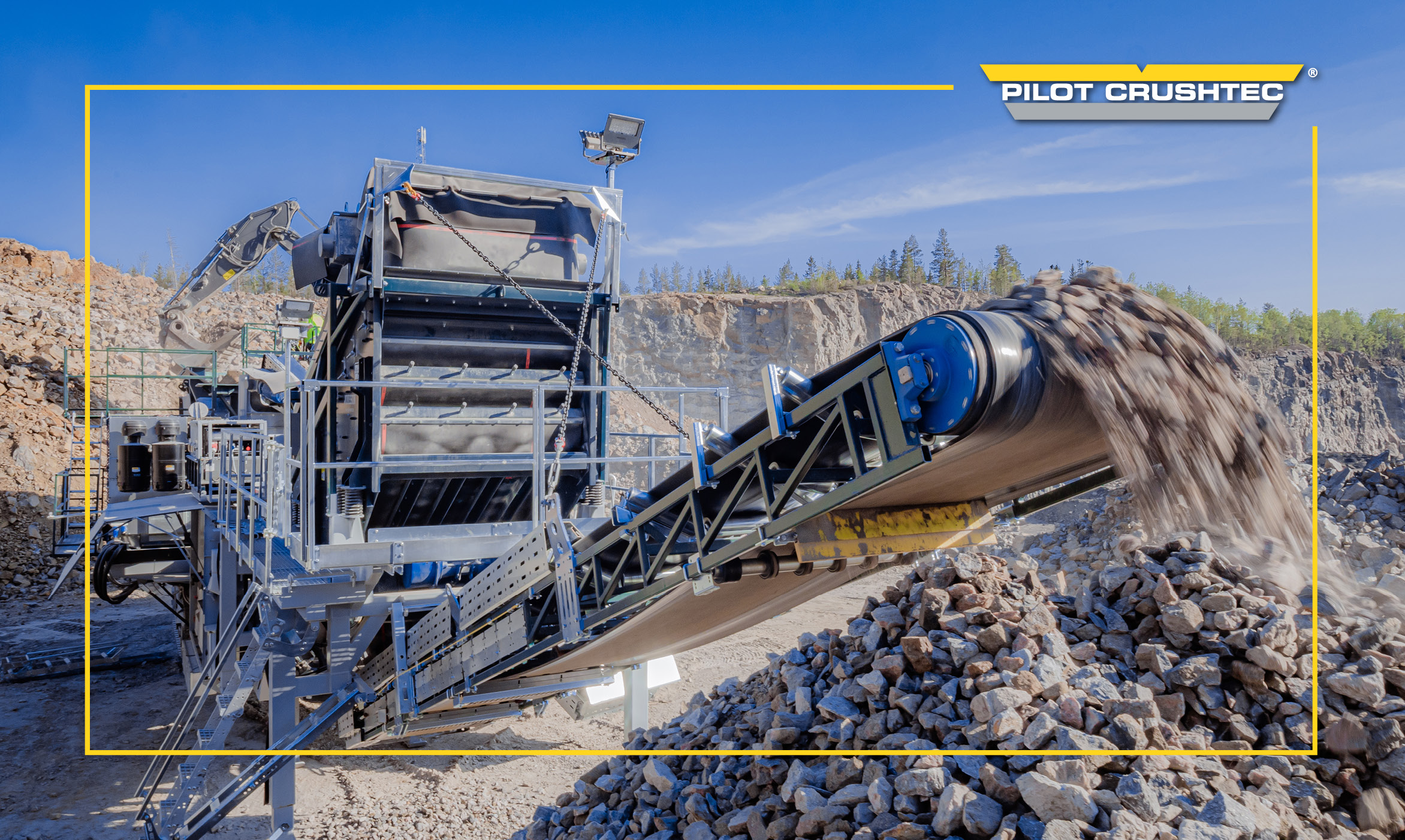

The L120-330’s production screen uses high-efficiency Free Flow screens with superior material flow, offering up to 3x capacity per area, efficient 16-120 mm cuts, and 70% pass-through per deck.
Electrical system features numbered cabling, PLC with relay backup, protected cabinets with heat-resistant cables, extra sockets, and in-house installed modules for reliable operation.

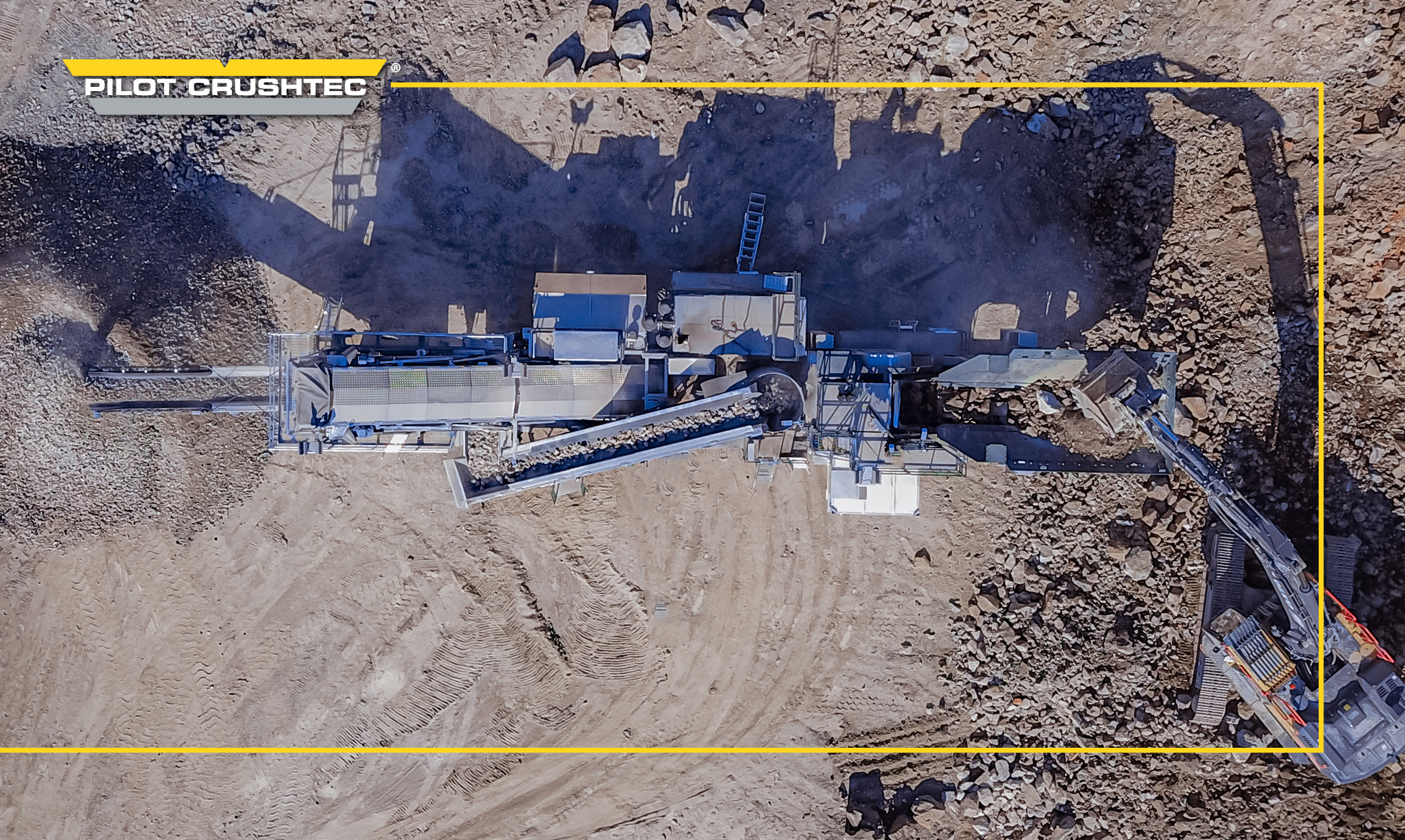

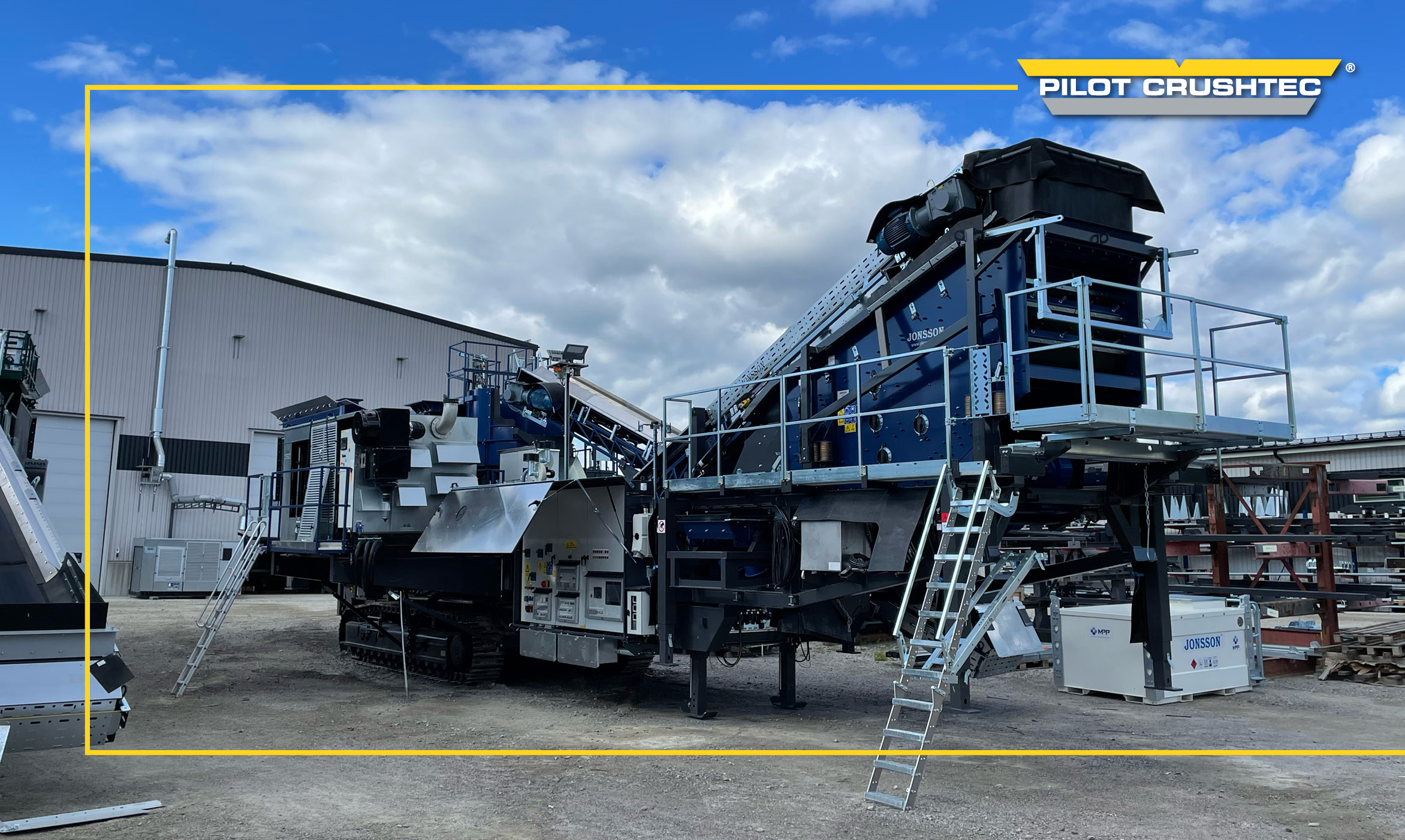

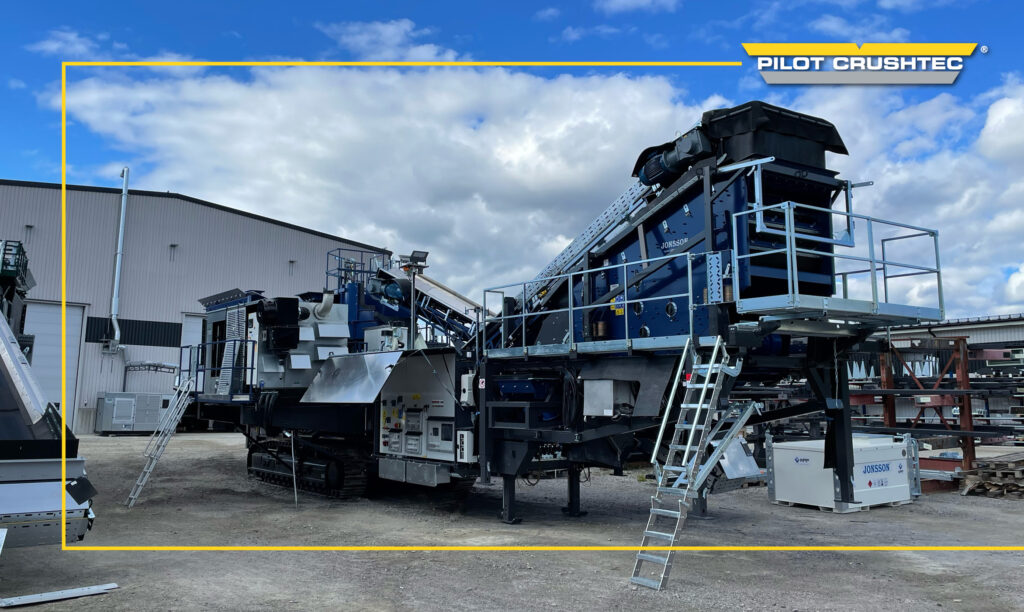

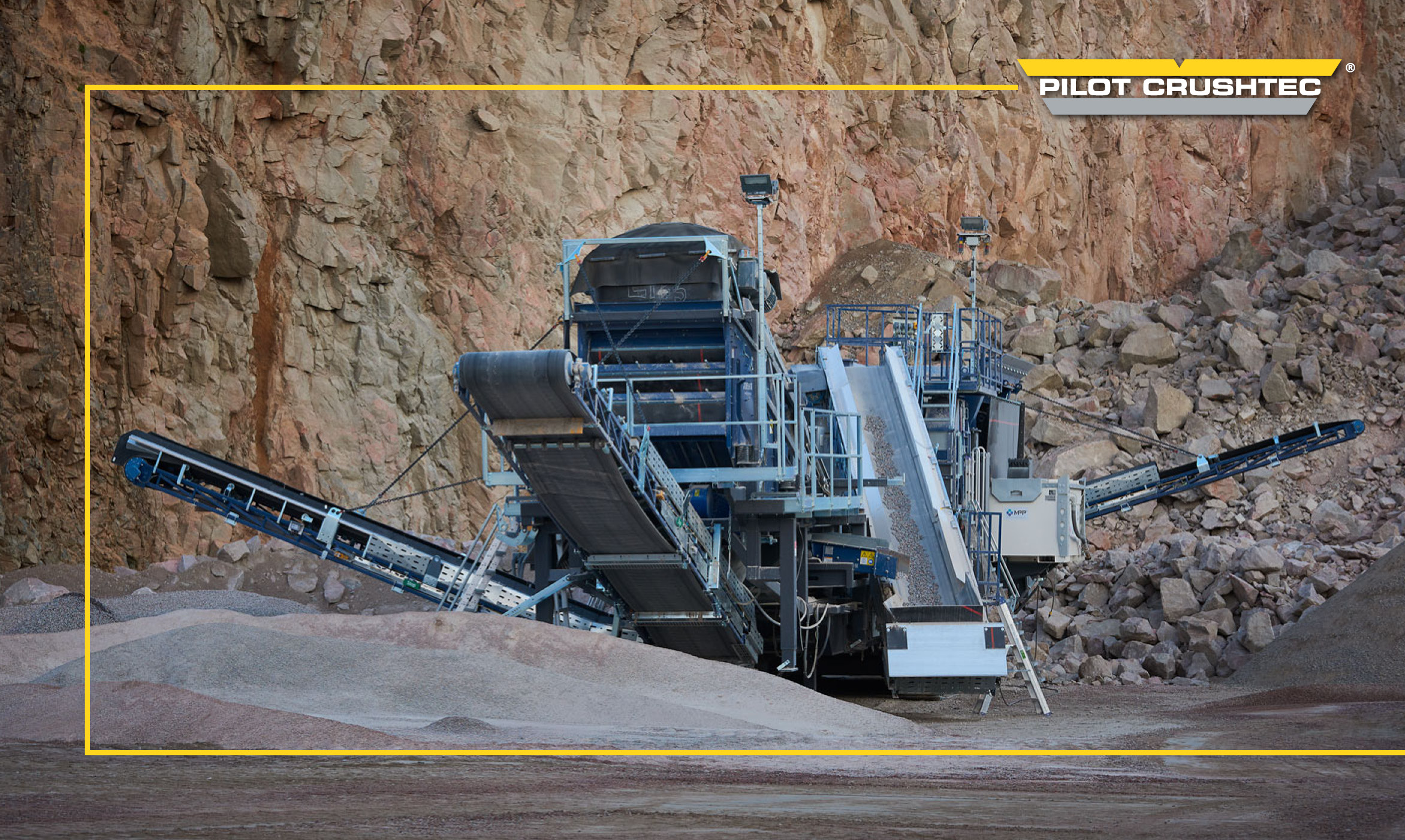

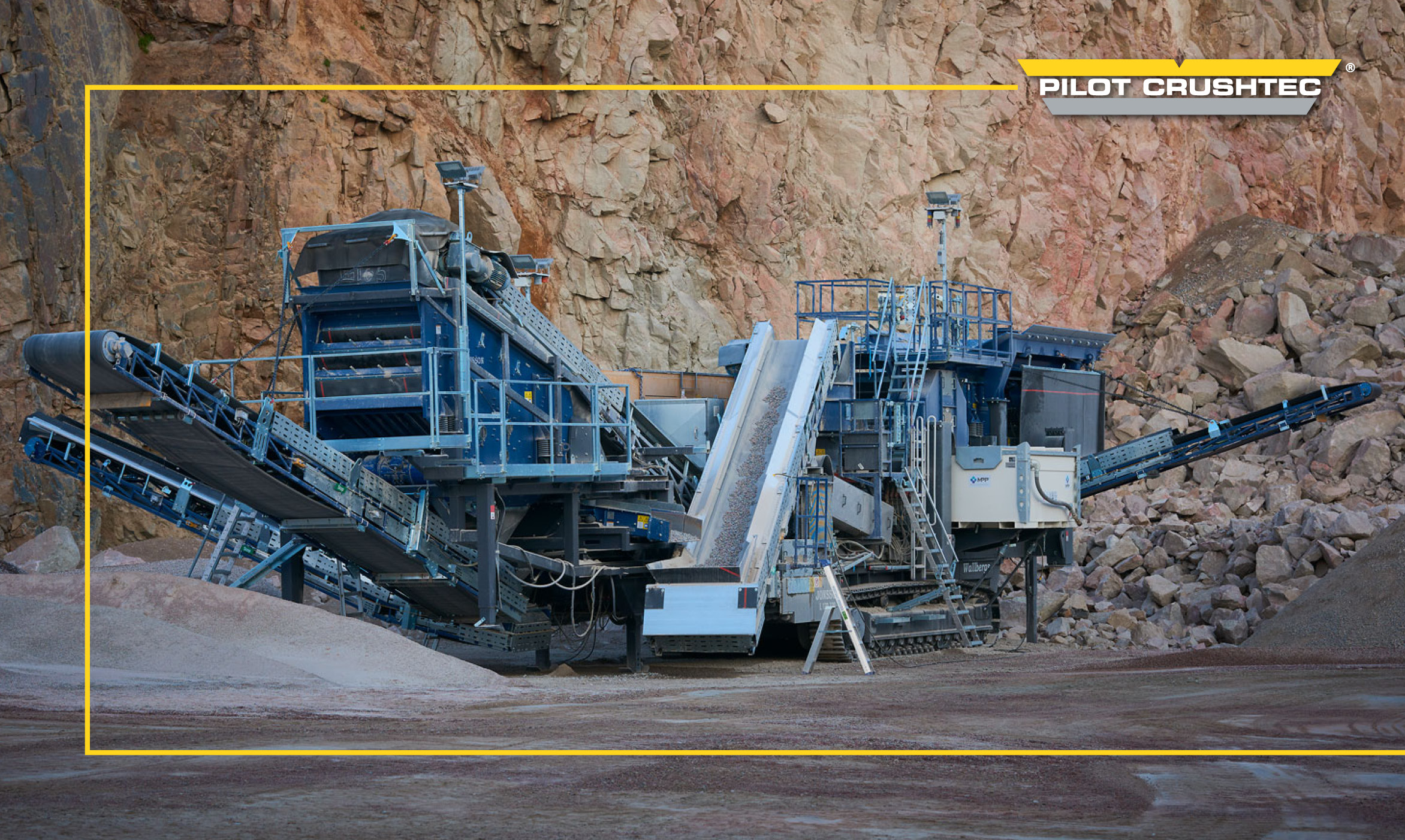

Features a unique mobile design, the only unit combining two crushers and a screen on one chassis for easy transport.
