LT1110 Mobile HSI Crusher

The Metso Lokotrack LT1110 mobile HSI crusher is a compact unit ideally suited for smaller-scale construction and recycling operations. It excels at processing medium-hard materials such as limestone, asphalt, concrete, bricks, and demolition waste.

Designed to operate standalone or in combination with mobile screens, the LT1110 delivers precisely calibrated end products – particularly in recycling and limestone applications. For enhanced versatility, an optional screen module with return conveyor is available to produce an additional calibrated fraction.

metso

Product Downloads

Download Brochure

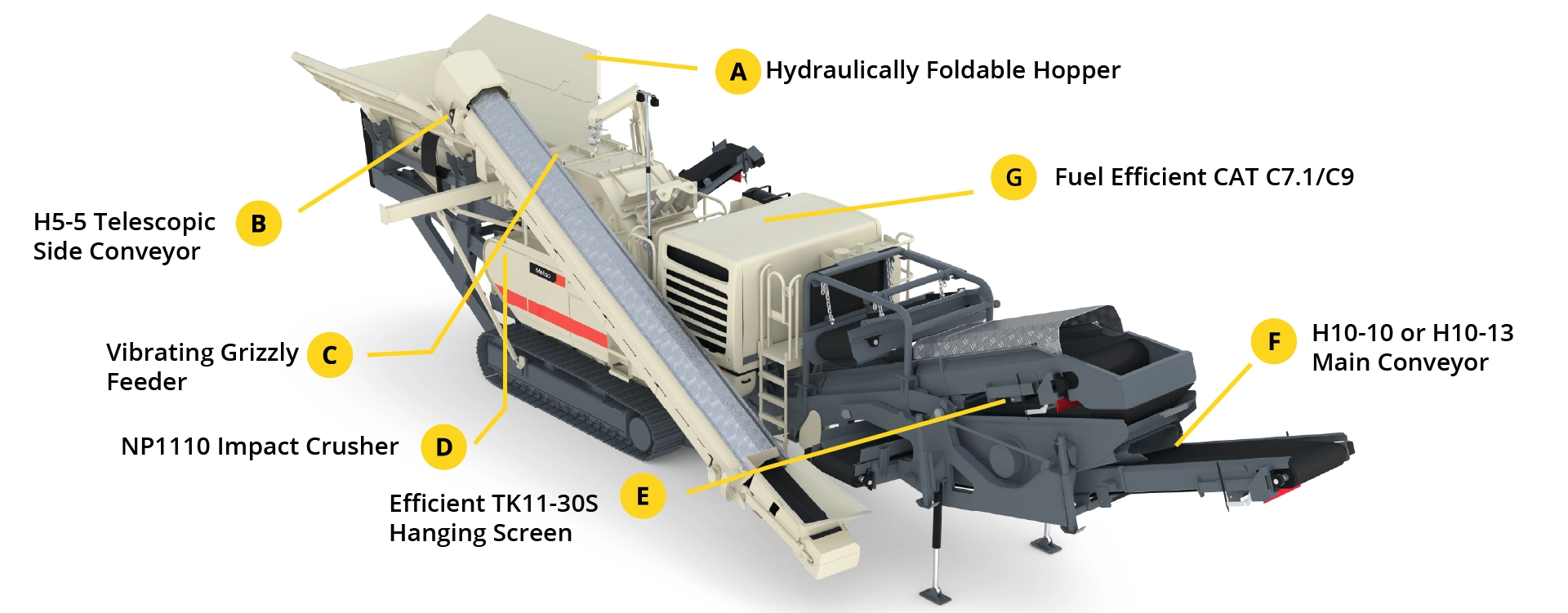

Product Features
icon

The LT1110 features a hydraulically foldable hopper with wear-resistant curved sides and extensions that increase hopper volume for greater capacity.

icon

The mobile impact crusher unit includes an H5-5 telescopic side conveyor that sets up quickly for transport and operates at high speed to maximize stockpile capacity.

icon

A vibrating grizzly feeder with automatic speed control (or via radio remote) ensures efficient material flow through its high-stroke vibrating unit, while the wear-resistant feeder bottom extends service life.

icon

The NP1110 impact crusher allows hydraulic setting adjustment during operation, offers a wide range of blow bars suited to various materials, and provides easy hydraulic opening for safe rotor access during maintenance.

icon

An efficient TK11-30S hanging screen delivers high capacity with a wide screen area, supported by a robust FEM-optimised structure with tuned G-forces, and offers steel or rubber mesh options.

icon

The main conveyor is hydraulically driven with steel reinforcement, and its extended length provides greater discharge height.

icon

A fuel-efficient CAT C7.1/C9 powertrain features a hydraulic crusher drive, optimised hydraulic system efficiency, and reduced oil volume to lower operating costs.

Extended Benefits

01Powerful Impact Crusher

The Lokotrack LT1110 mobile HSI crusher is built around Nordberg NP1110M horizontal shaft impact (HSI) crushing unit. The crusher is especially designed to process soft and medium-hard materials. Lokotrack LT1110 also includes high-quality blow bars as standard.

025 Year/10,000 Hour Warranty

No other warranty in the industry is as comprehensive as the Metso EPS Warranty. Extending the standard warranty from 1 year/2,000 to 2 years/4,000 hours and major components covered from year 1 to year 5.

03Optimum Crushing Results

The Metso IC™ process control system optimizes crushing results. It allows one-button start and stop, with built-in troubleshooting and a variety of parameter selections. All Lokotrack mobile crushers in the same crushing process can be connected to the Metso IC™ system.

04Backup Support

With a large inventory of critical spare and wear parts available at our Jet Park premises, Pilot Crushtec has technical and spares support for the LT1110 to ensure that you limit downtime, should a breakdown occur.

05Super Safety Comes Standard

The Lokotrack LT1110, safe and easy daily operations are ensured with an extensive platform and easy access to impact crusher maintenance points.

Product Information

FEEDER
Volume 5 / 8m³

Width 900mm

Loading Height 3,600 mm

Loading Width 2,700 mm

CRUSHER
Crusher Nordberg NP110M

Feed Opening 1040 x 800 mm

Weight 35,400 kg

POWER UNIT
Diesel Engine CAT C7.1

MAIN CONVEYORS
Width 1,000 mm

Length 10,000 / 13,000 mm

Discharge Height 2,900 / 3,900 mm
