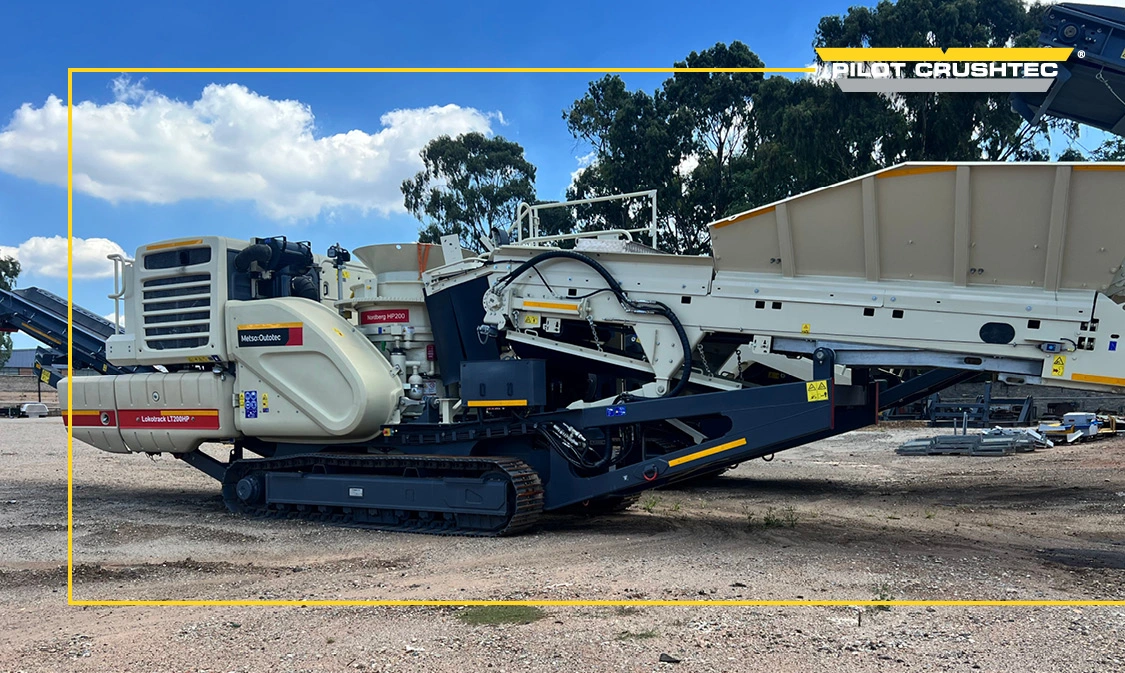

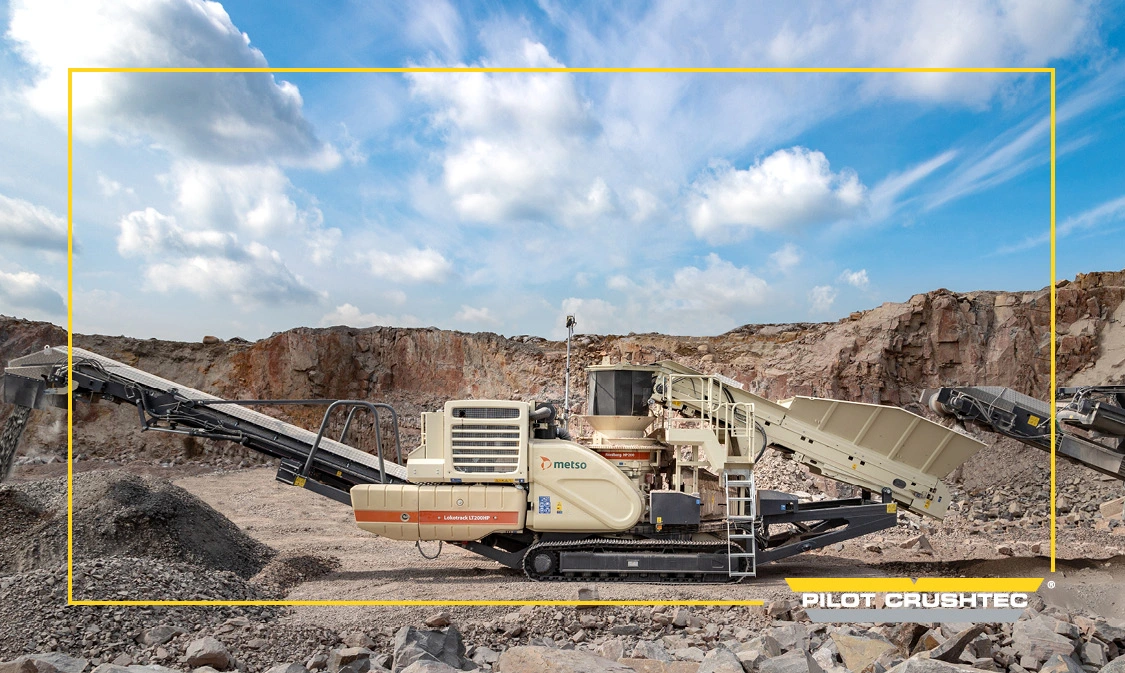

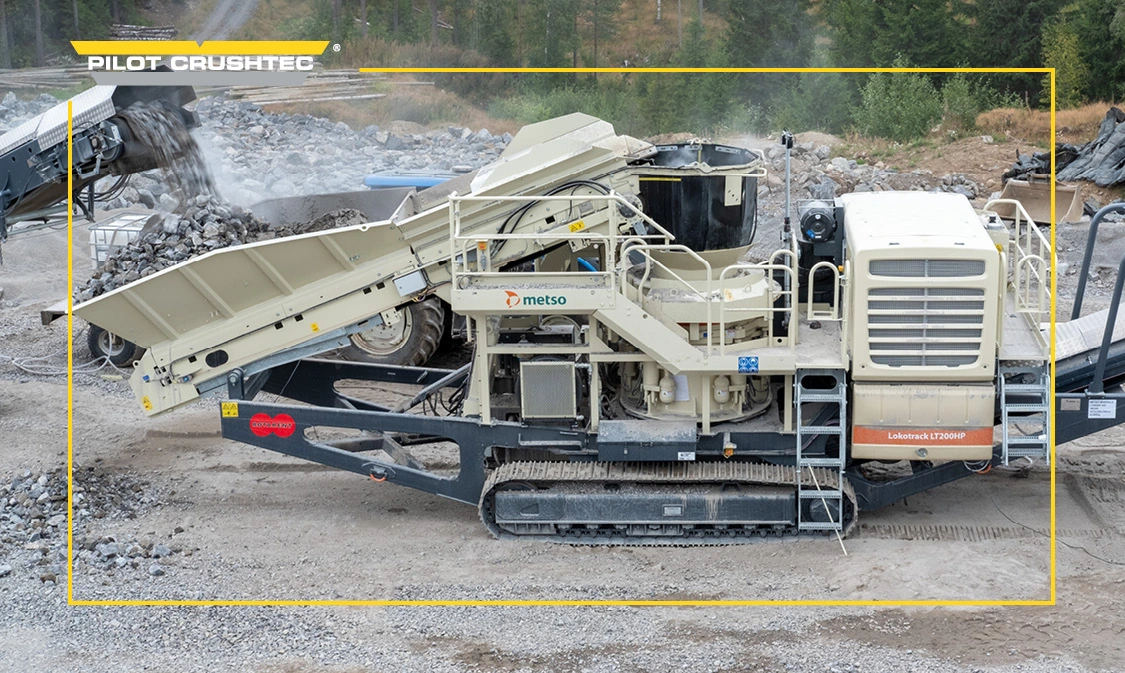

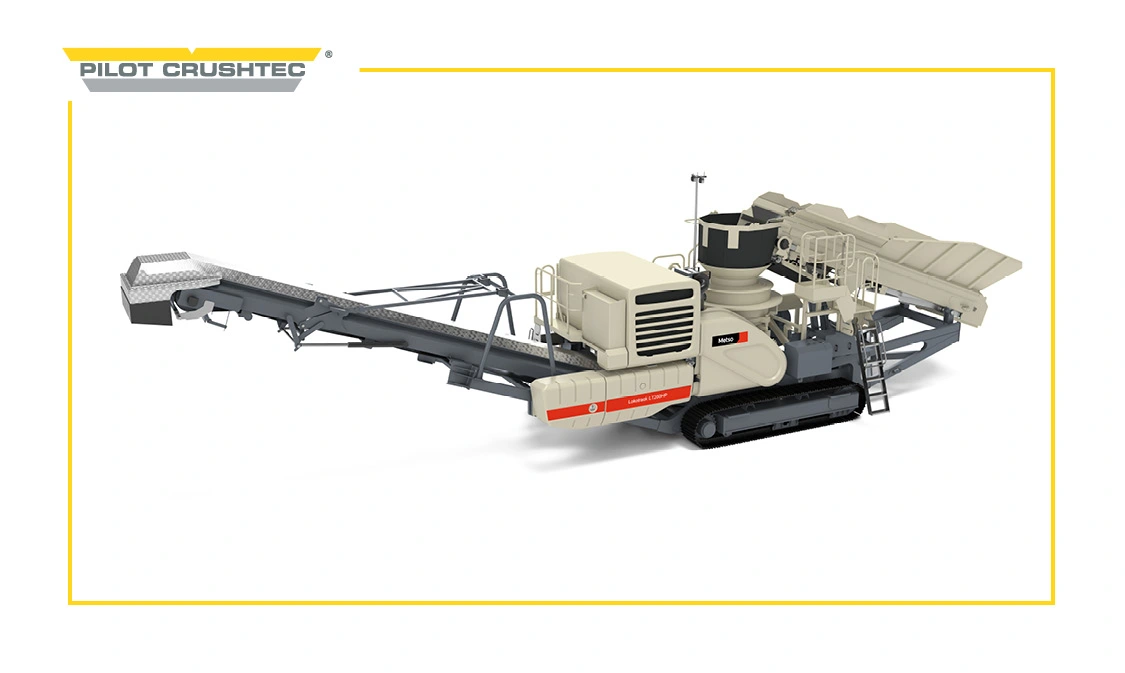

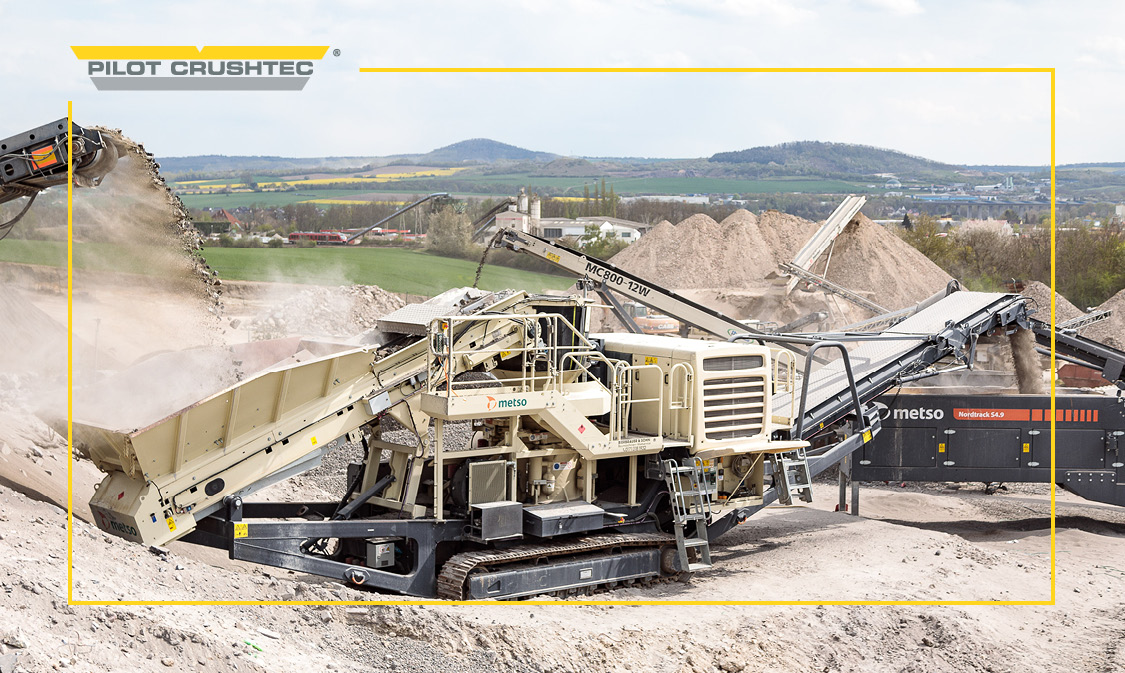

Lokotrack® LT200HP™ mobile cone crusher is designed for secondary crushing. Track-mounted Lokotrack® LT200HP™ is ideal for producing aggregates for road construction and railroad ballast, as well as for asphalt and concrete fractions.

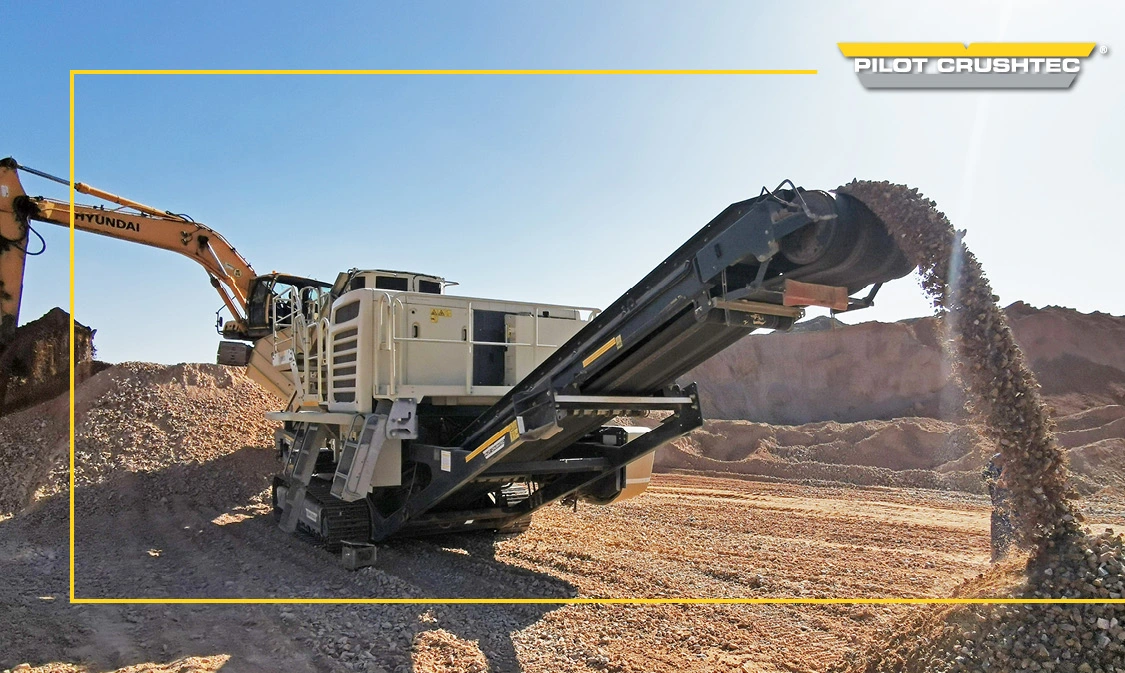

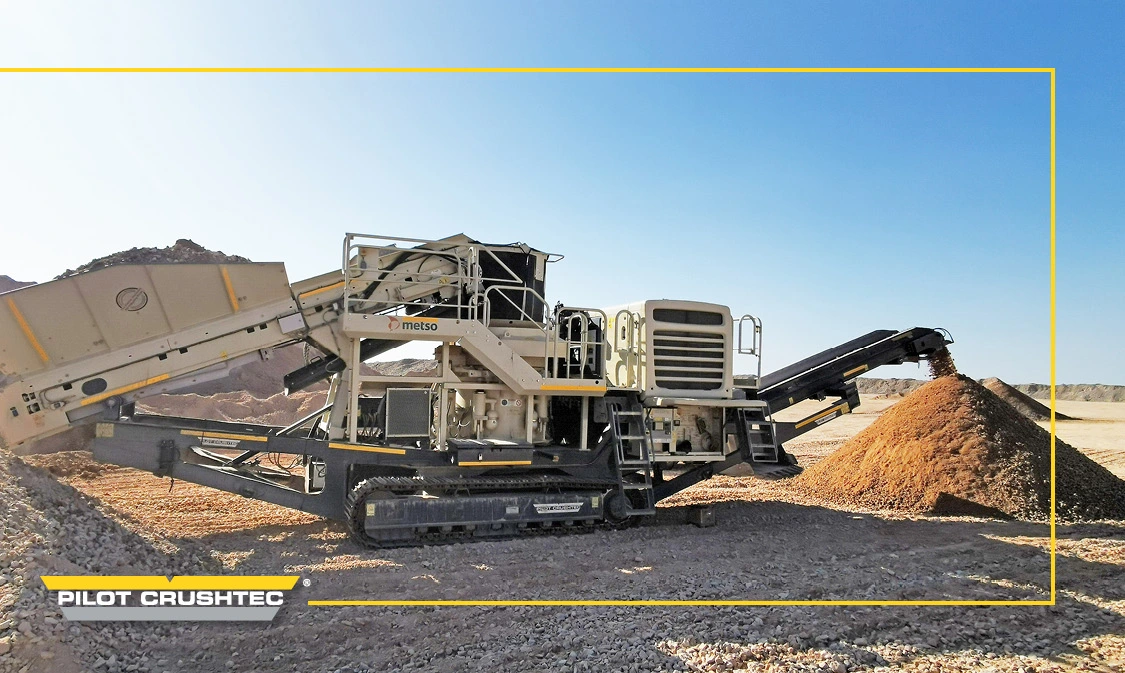

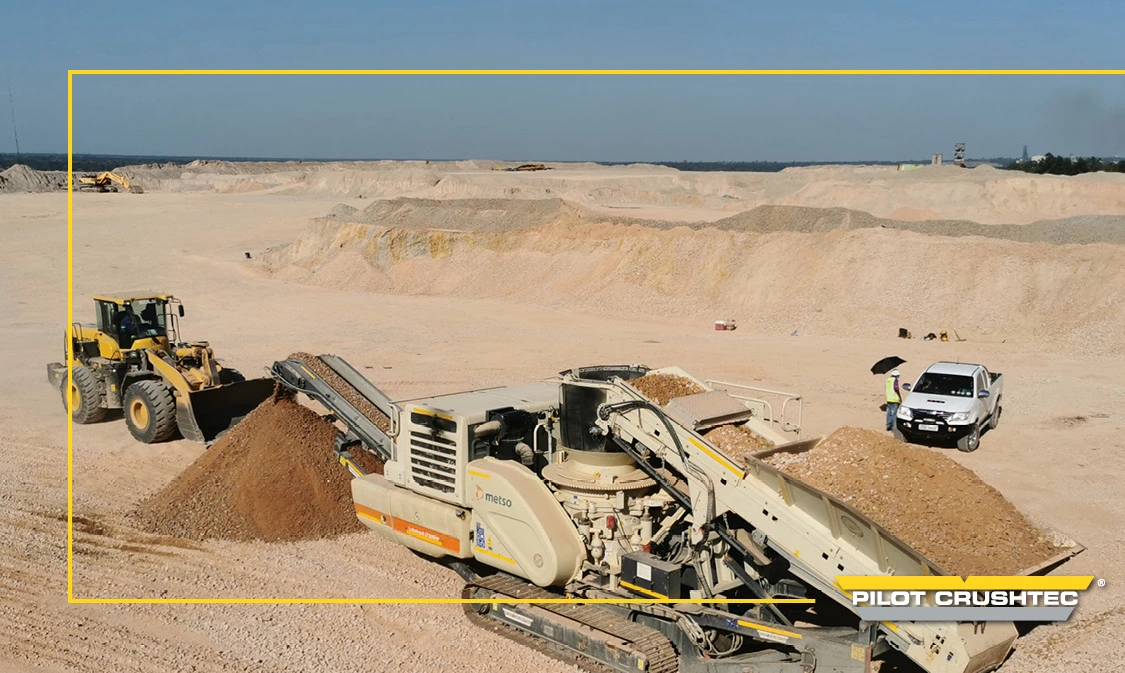

Lokotrack® LT200HP™ mobile cone crusher is typically used as a secondary crusher in conjunction with a primary crushing plant in multi-stage crushing applications like commodities, railroad ballast, asphalt, and concrete fraction production. It is easy to move between sites thanks to compact transportation dimensions.

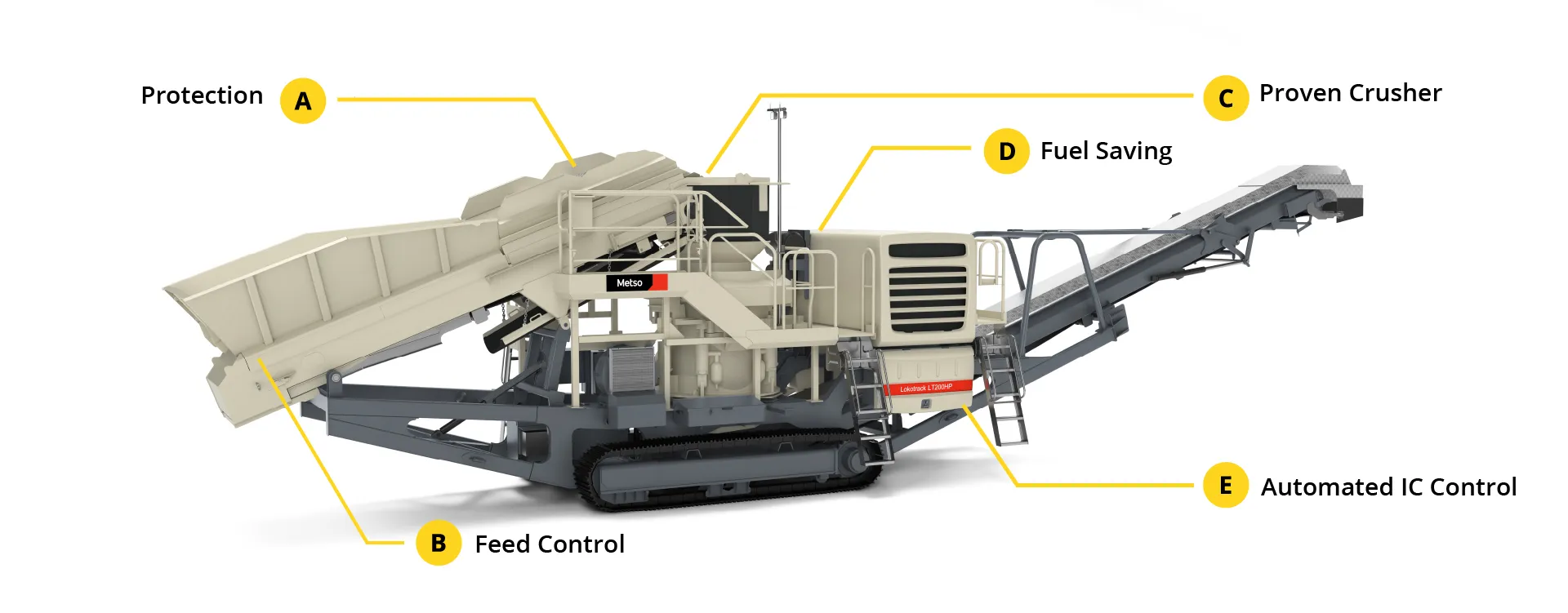

The LT200HP™ features a metal detector to protect the cone from receiving ferrous metals which can lead to damage
Adjustable feeder speed for better material flow control
The high capacity HP200 cone crush is proven and suitable for hard rock crushing
Direct belt drive from the gearbox improves fuel consumption
The LT200HP™ features Metso IC control system to assist with automated process control flow

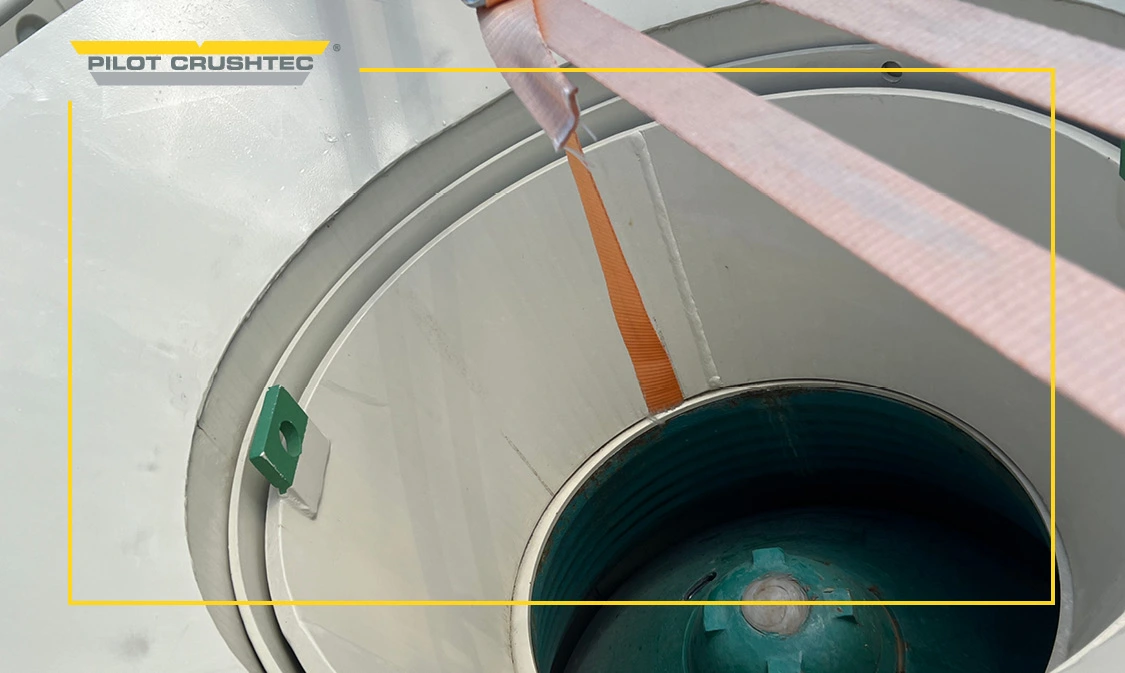

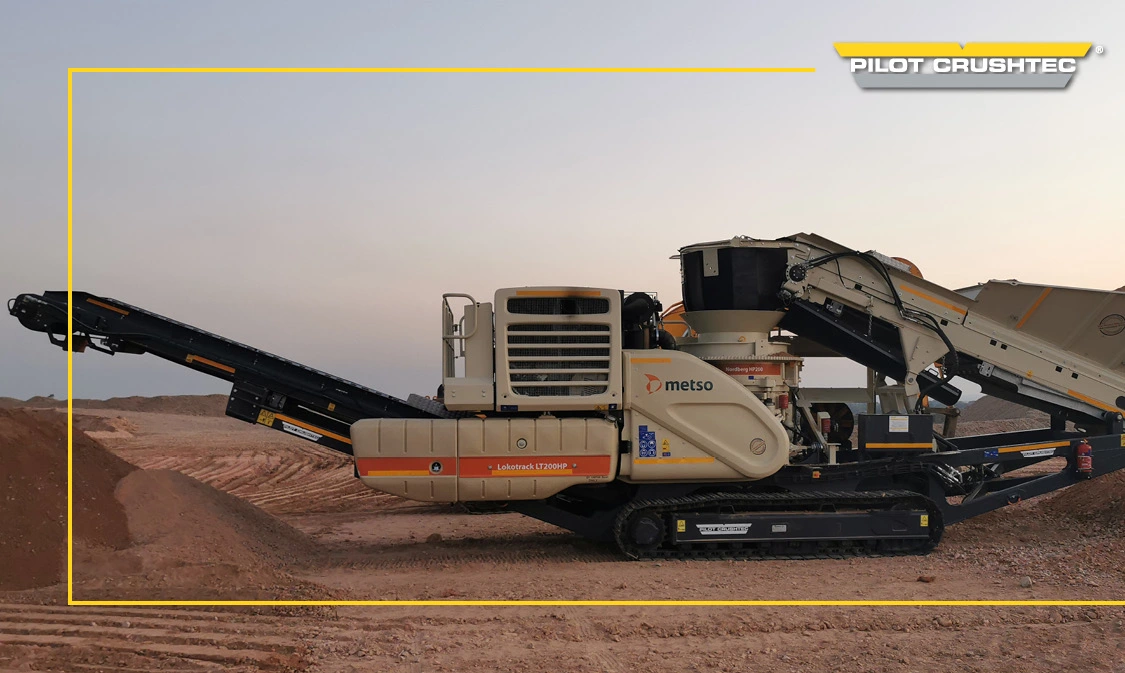

The Lokotrack® LT200HP™ features an efficient Nordberg® HP200™ cone crusher unit, which is designed for high productivity, low operating and wear costs and a long service life, providing superior end-product quality.
No other warranty in the industry is as comprehensive as the Metso EPS Warranty. Extending the standard warranty from 1 year/2,000 to 2 years/4,000 hours and major components covered from year 1 to year 5.
The fuel economy of the Lokotrack® LT200HP™ has improved by between 35 and 40% since the first model was introduced in 2004. The latest model can save at least 15% in fuel consumption compared to the previous hydraulic-driven model, thanks to its direct belt drive from the gearbox. It is also the first Lokotrack to comply with Stage V emission regulations.
With a large inventory of critical spare and wear parts available at our Jet Park premises, Pilot Crushtec has technical and spares support for the LT200HP™ to ensure that you limit downtime, should a breakdown occur.

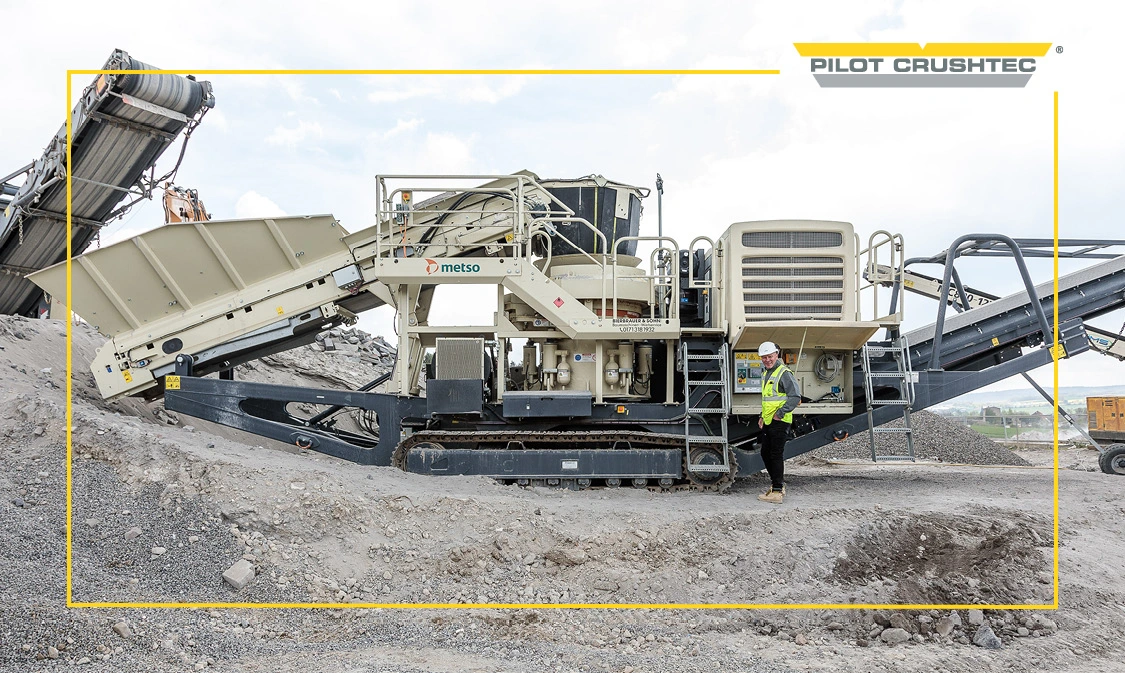

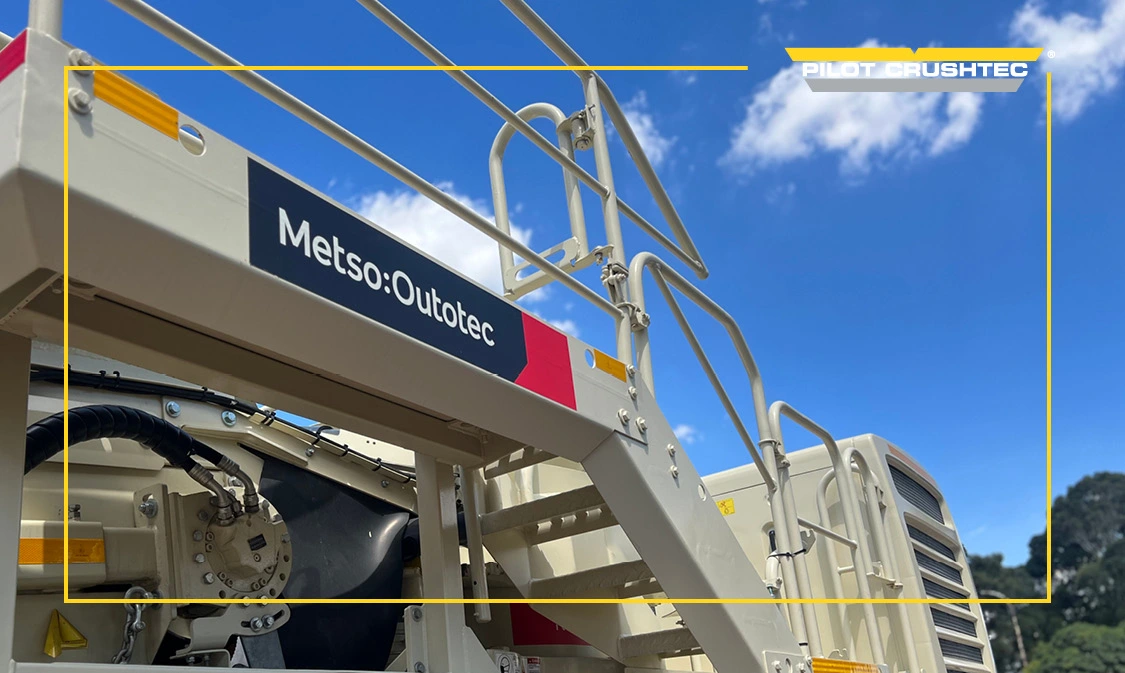

Proper stairs with handrails, walkways and maintenance platforms. Several emergency buttons and pull wires fitted to the machine standard. The IC Controller unit provides delayed safety protocol start-up sequences.
| Feeding CONVEYOR | |

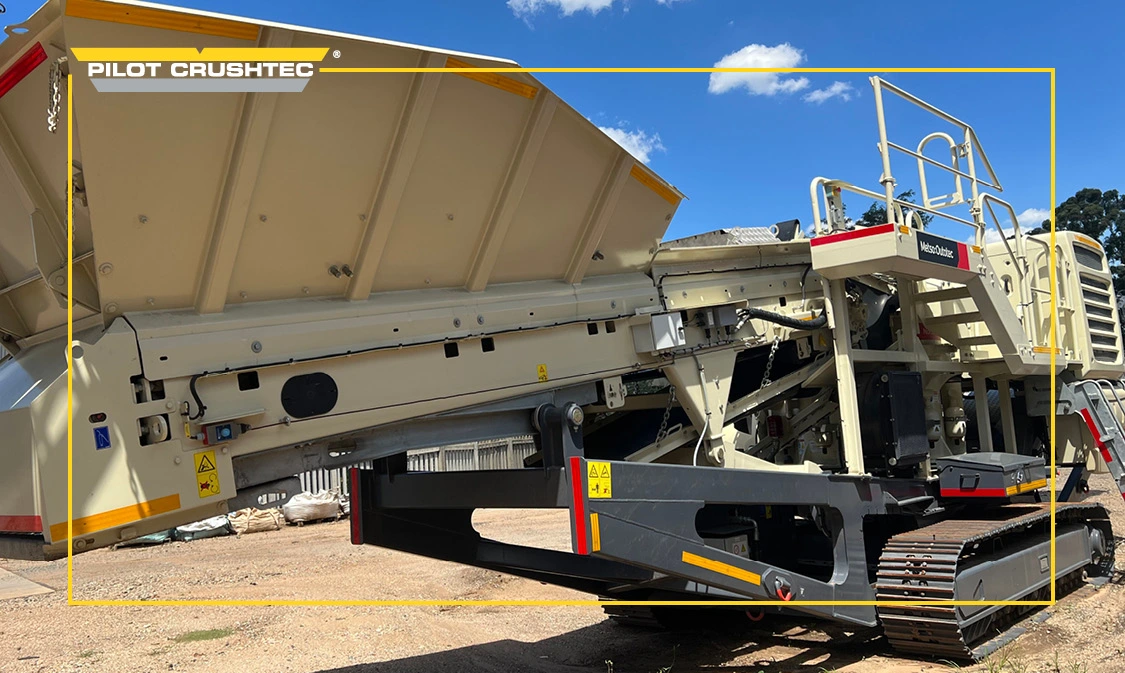

| Feed Hopper |
5m³ |
|---|---|
| CRUSHER | |
| Crusher |
Nordberg® HP200™ |
| Weight |
32,000 kg |
| Setting Adjustment |
Hydraulic setting adjustment |
| POWER UNIT | |
| Diesel Engine |
Cat C9.3B Optimized hydraulic circuit for fuel efficiency |
| Emission Class |
Stage 5 |

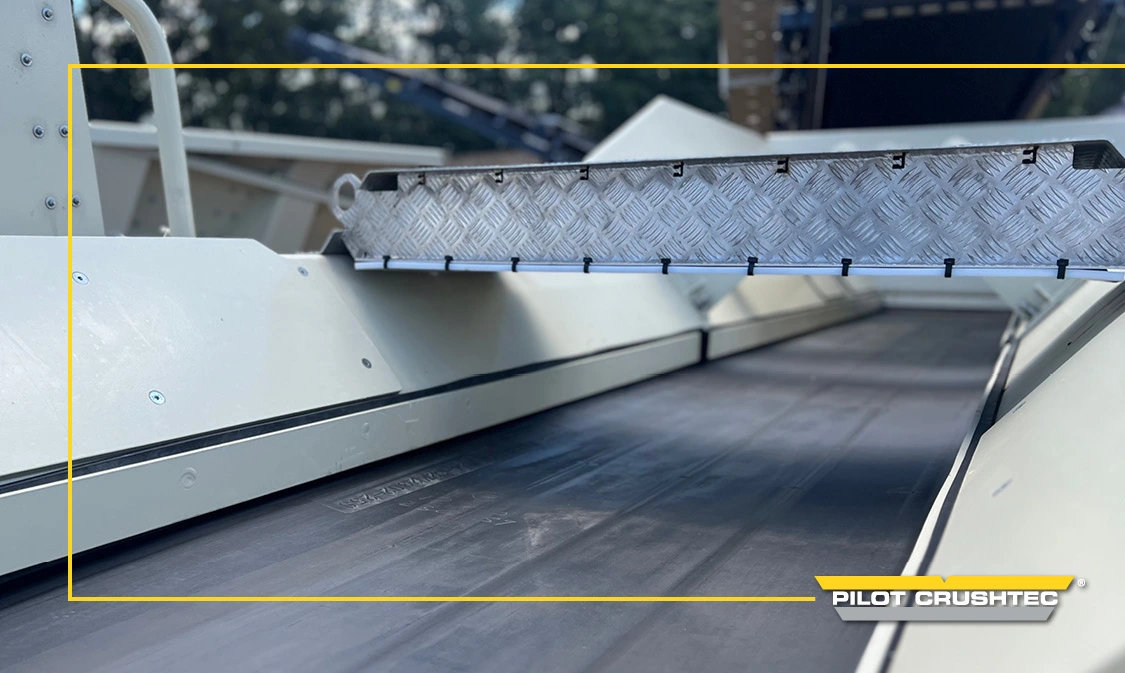

| MAIN CONVEYORS | |
| Conveyor |
Hydrualic driven belt conveyor Extended convoeyor for more discharge height |
| ADDITIONAL EXTRAS | |
| Interlocking |
With Lokotrack interlocking solution operators crushing and screening process can be adjusted as Lokotrack automation systems are connected. Primary unit feeder automatically slows down, pauses or stops if secondary units crushing or screening process is either paused or stopped. |
| Water Spraying System |
High pressure water spraying system with pump. For binding dust particles at the crusher cavity, under the crusher, at the discharge end of main conveyor. This system includes high pressure water pump. |
