LT330D Mobile Cone Crusher

LT330DMobile Cone Crusher

The Lokotrack® LT330D™ mobile cone crusher is a complete cone crushing and screening plant. It is dual powered and combines a cone crusher with a 3-deck dual slope screen and a patented centrifugal conveyor on the same chassis.

Despite all versatile functionalities, Lokotrack® LT330D™ is still able to be transported between sites on a low bed truck.

It is typically used as a secondary or tertiary crushing plant in a multistage crushing process to produce up to three calibrated end products, from one machine.

metso logo

Product Downloads

2 in 1 crush and screen
DUAL POWER
FEEDSIZE 230

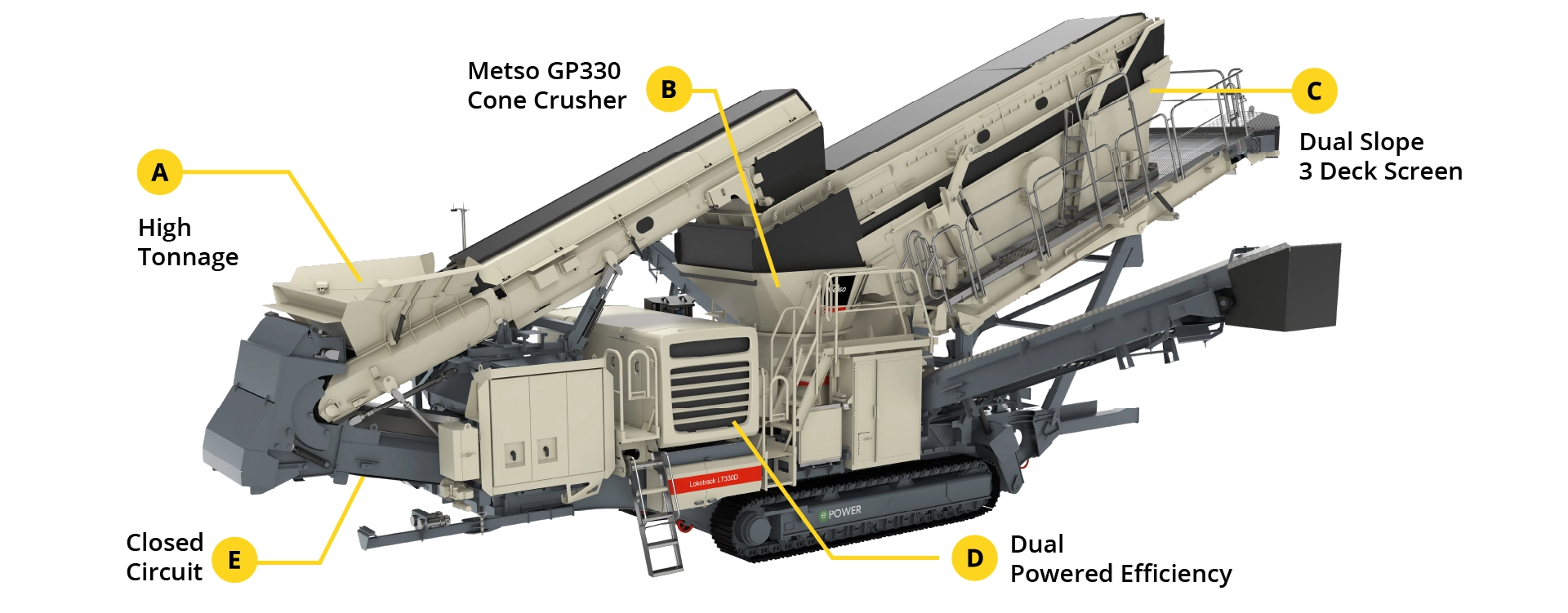

Product Features
icon

The LT330D can accept the feed from a large primary jaw crusher such as a Metso LT120 or LT130 jaw crusher. The rated capacity for the machine indicates up to 450tph.

icon

The LT330D is equipped with a Metso GP330 Cone crusher. Suited for most types of hard rock, this is a high-powered cone crusher with high nominal power, a large stroke and a large feed opening.

icon

The design of the LT330D is unique because of the large triple deck screen. This dual slope screen is designed for high-capacity screening and accuracy. Space between the decks allows for relatively easy mesh changes.

icon

Advanced power technology on the LT330D allows for the machine to be powered directly from the grid or external power source where this is available.

icon

Create final end products with the closed-circuit process flow thanks to the centrifugal looped conveyor – returning oversized materials back to the crusher for multiple passes through the crusher.

Extended Benefits

01Efficient crushing for demanding applications

The Lokotrack® LT330D™ is equipped with the versatile and reliable Nordberg® GP330™ cone crushing unit, which is suitable for even the most difficult aggregates production. To achieve maximum performance in all applications, the crusher offers a wide selection of strokes with a large setting range.

025 Year / 10,000 Hour Warranty

No other warranty in the industry is as comprehensive as the Metso EPS Warranty. Extending the standard warranty from 1 year/2,000 to 2 years/4,000 hours and major components covered from year 1 to year 5.

03Optimum crushing results

The Metso IC™ process control system optimises crushing results. It allows one-button start and stop, with built-in troubleshooting and a variety of parameter selections. All Lokotrack® mobile crushers in the same crushing process can be connected to the Metso IC™ system.

04Backup Support

With a large inventory of critical spare and wear parts available at our Jet Park premises, Pilot Crushtec has technical and spares support for the LT330D™ to ensure that you limit downtime, should a breakdown occur.

05Safe and easy maintenance

Metso is investing heavily in its equipment safety and easy maintenance. In Lokotrack® LT330D™ safe and easy daily operations are ensured with an extensive platform, and easy access to cone crusher maintenance points.

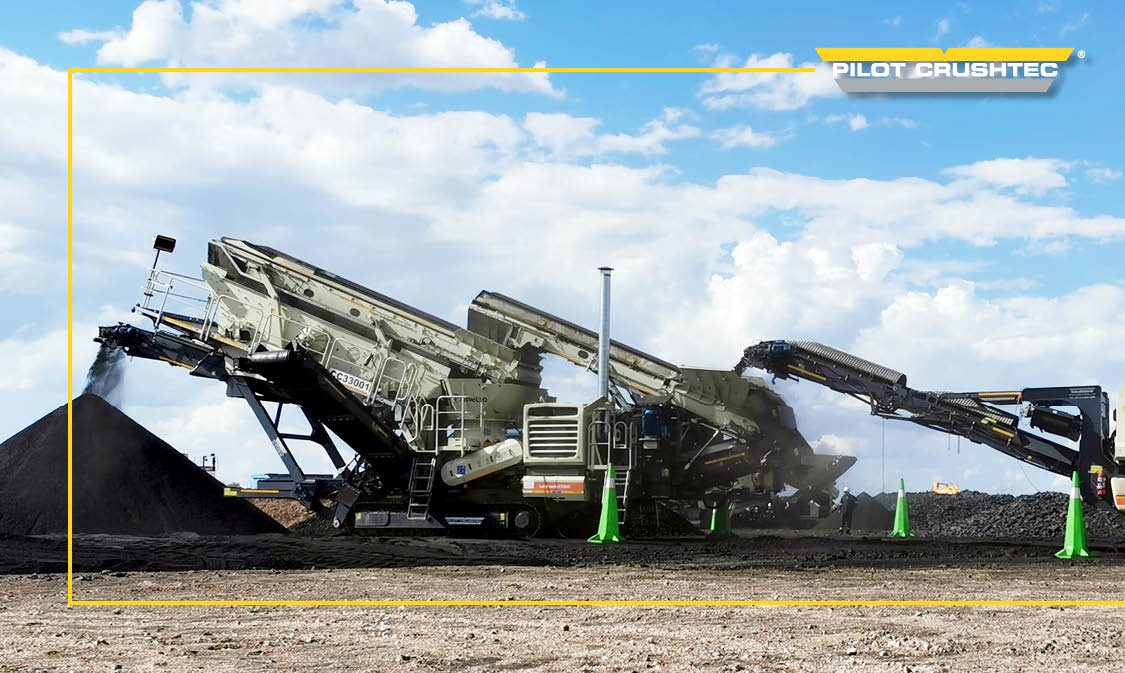

Mobile Cone Crusher

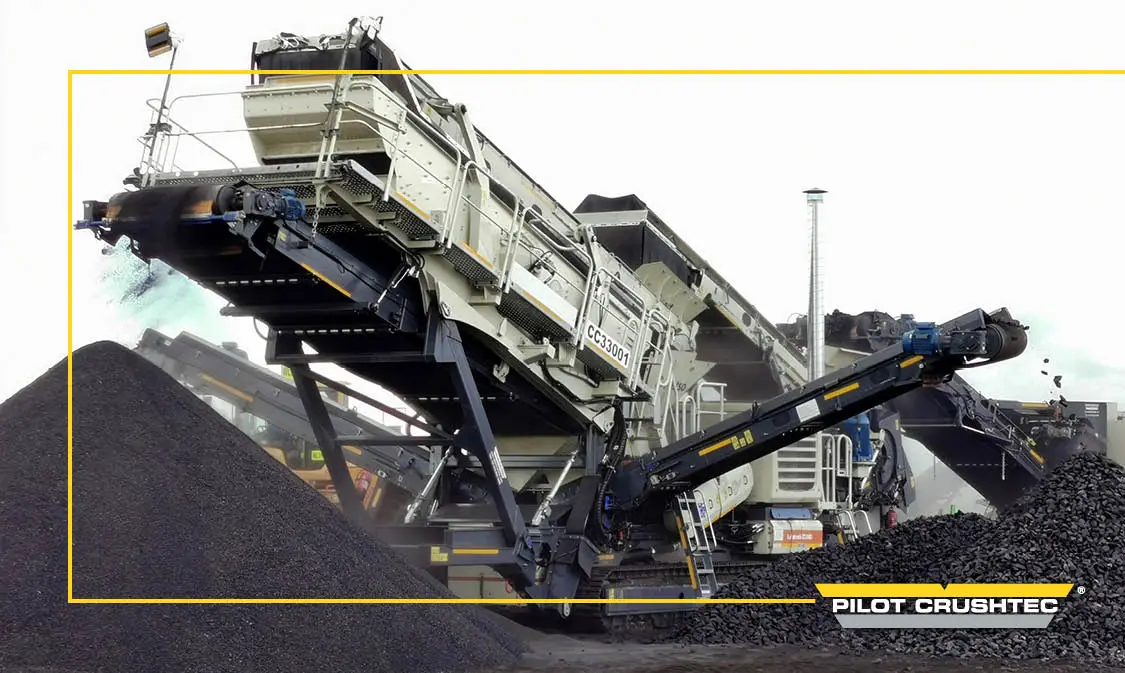

mobile cone crusher

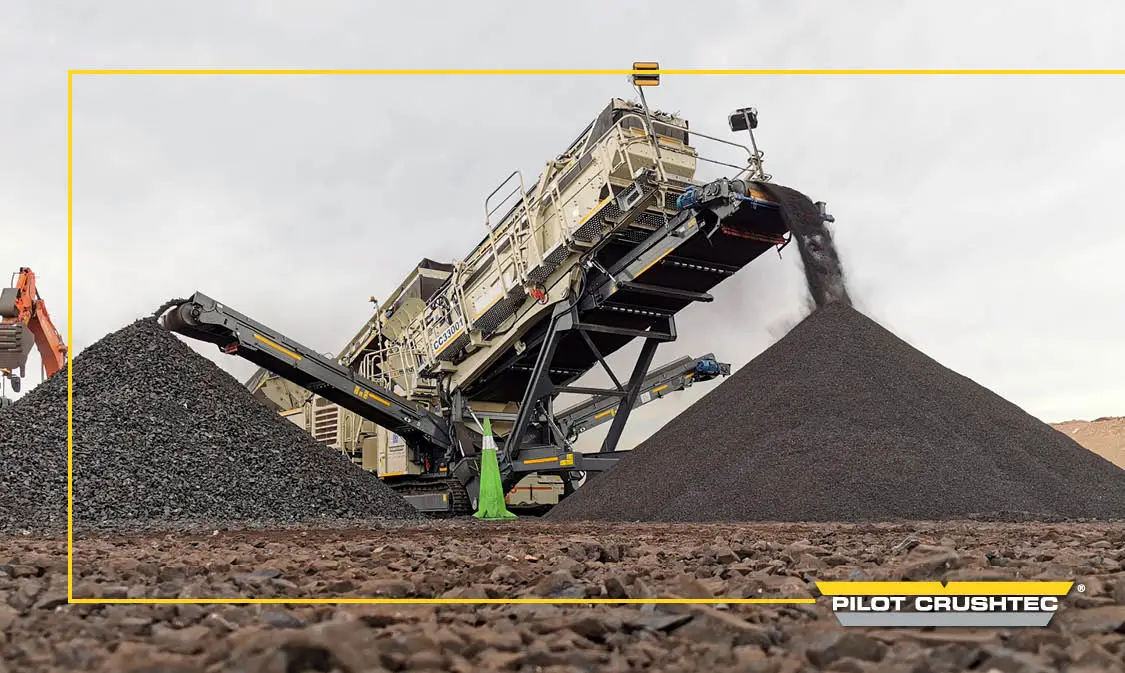

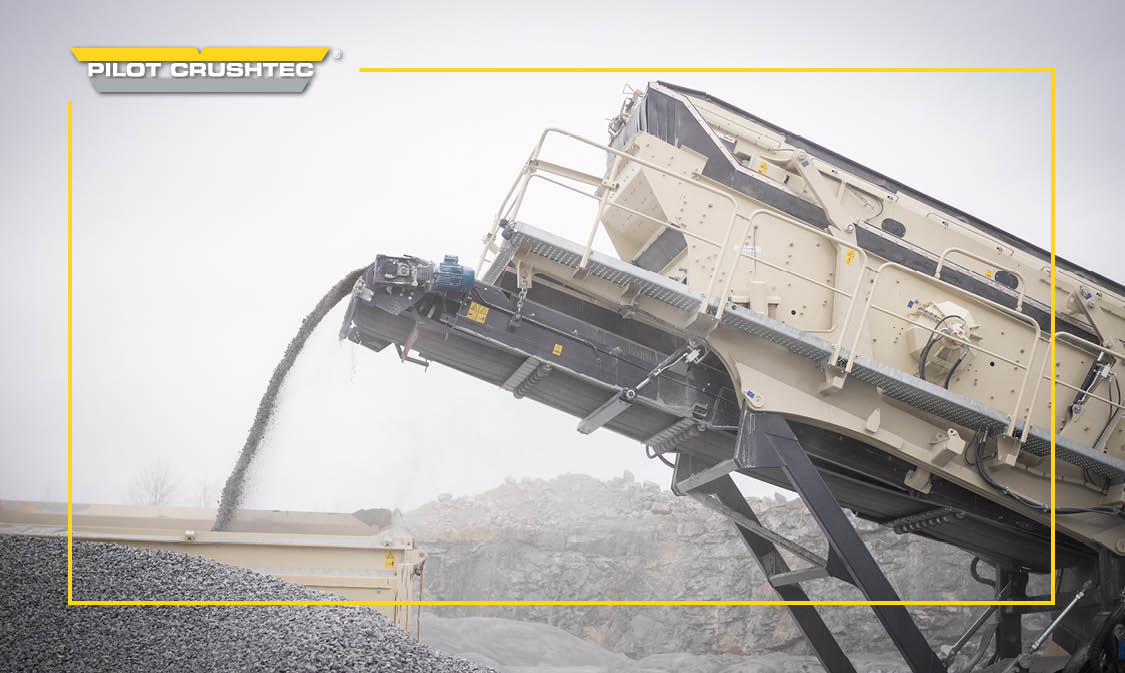

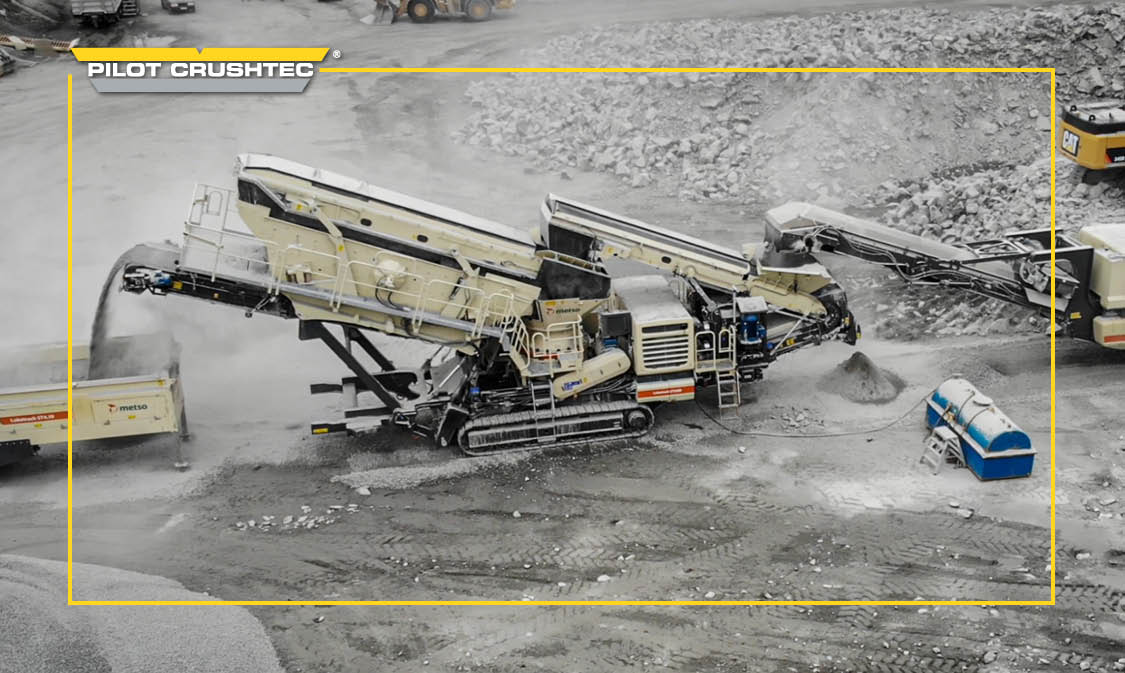

LT330D Mobile Cone Crusher

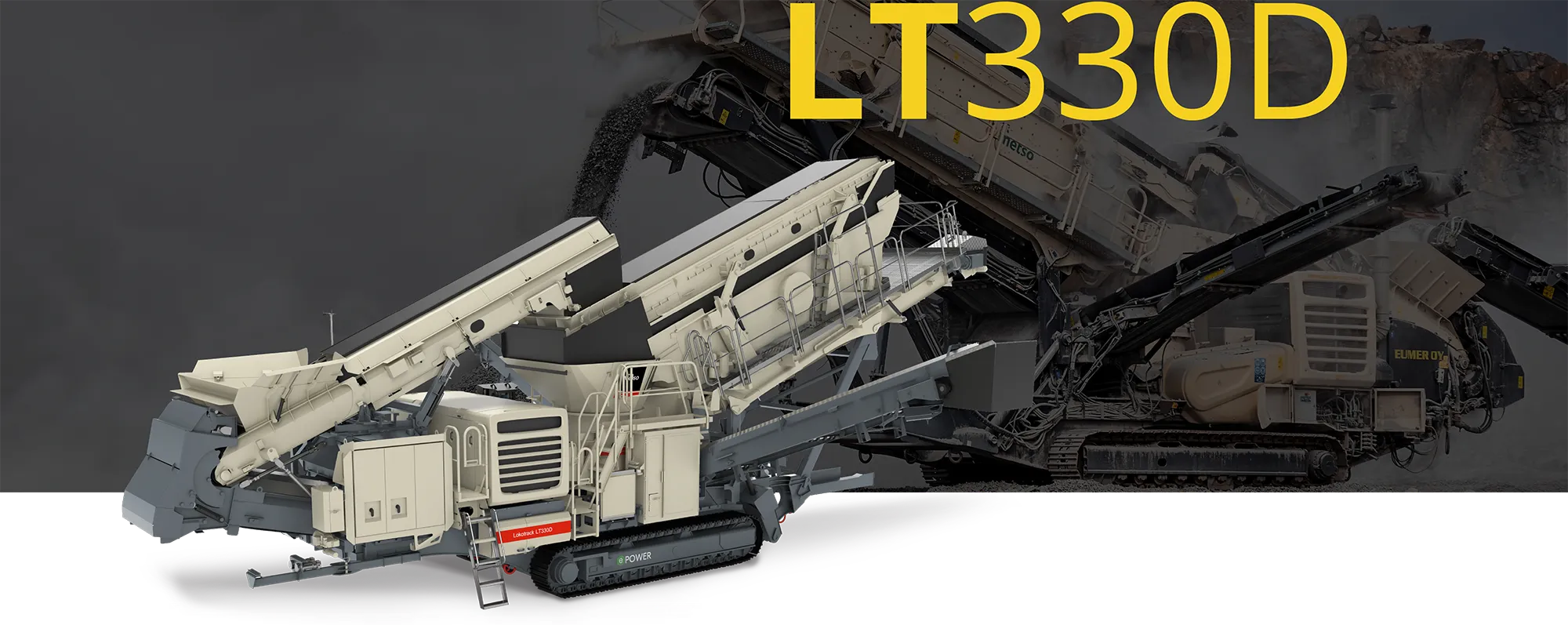

LT330D Mobile Cone Crusher

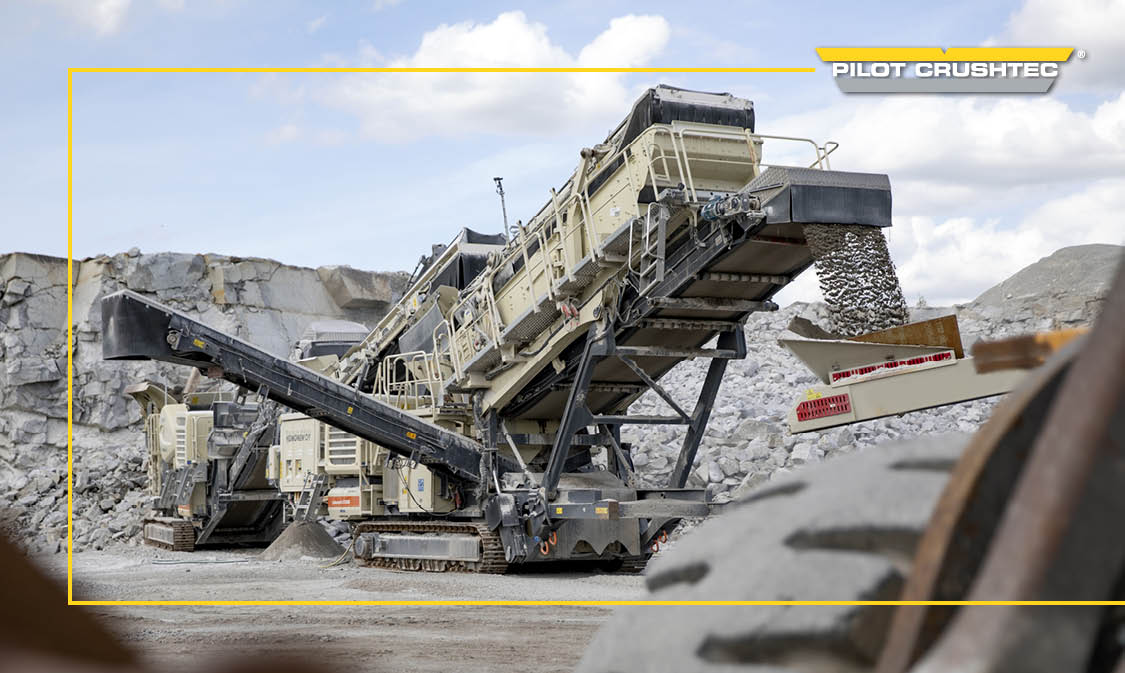

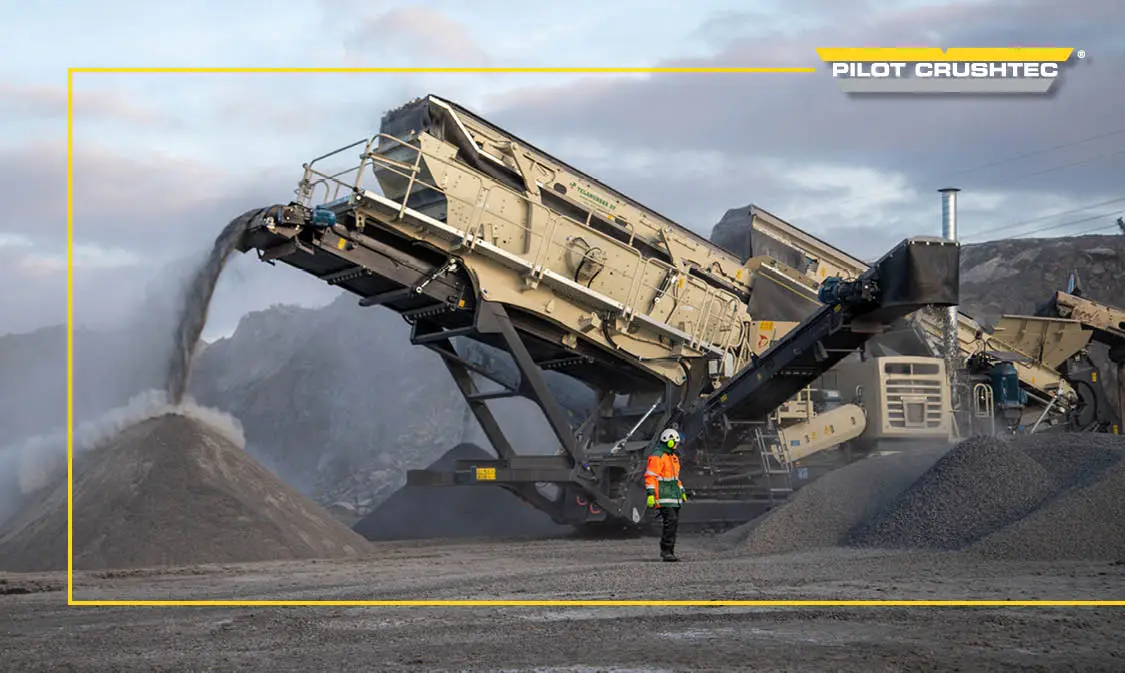

LT330D Mobile Cone Crusher in action

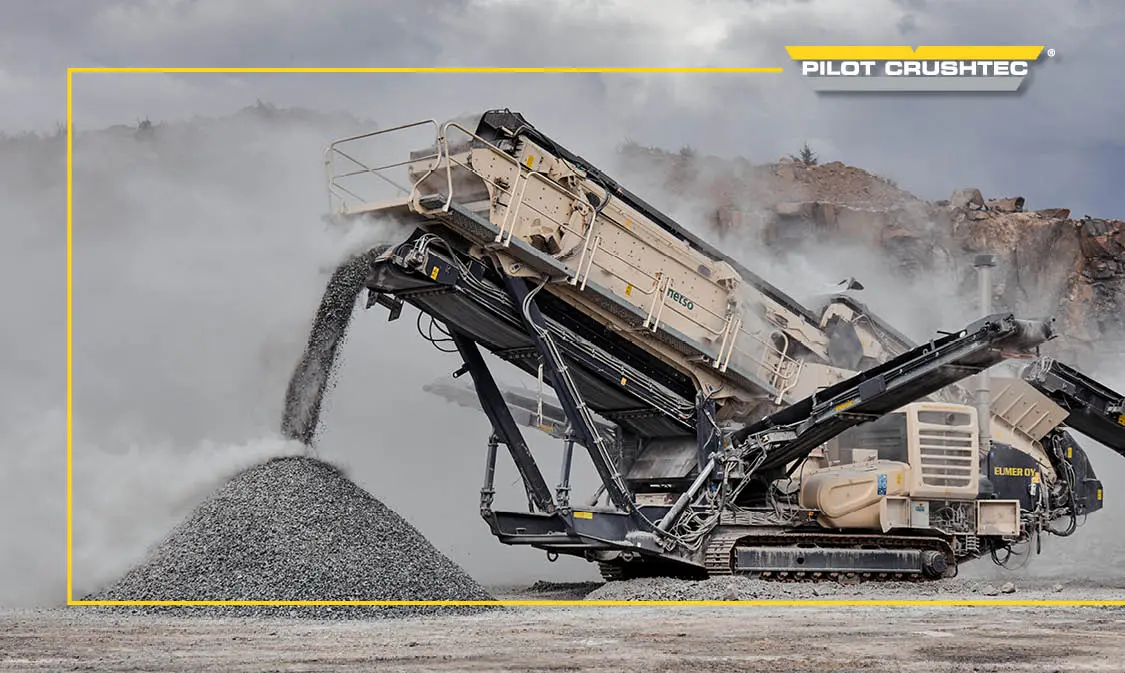

Metso LT330D Mobile Cone Crusher
LT330D Mobile Cone Crusher
LT330D Mobile Cone Crusher
LT330D Mobile Cone Crusher

Product Information

FEEDING CONVEYOR
Feeder Hopper

7 m³

CRUSHER
Crusher

Nordberg® GP330™

Feed Opening

238 mm

Nominal Power

300 kW
POWER UNIT
Diesel Engine

CAT® C18 563 kW

Optimized hydraulic circuit for fuel efficiency
Optimized hydraulic tank design for low hydraulic oil volume and efficient filtration
MAIN CONVEYORS
Width

1600mm
Length

8 000 mm
WEIGHT

71 000 kg
ADDITIONAL EXTRAS
Interlocking

With Lokotrack interlocking solutions, the crushing and screening process can be adjusted as Lokotrack automation systems are connected. Primary unit feeder automatically slows down, pauses or stops if secondary units crushing or screening process is either paused or stopped.
