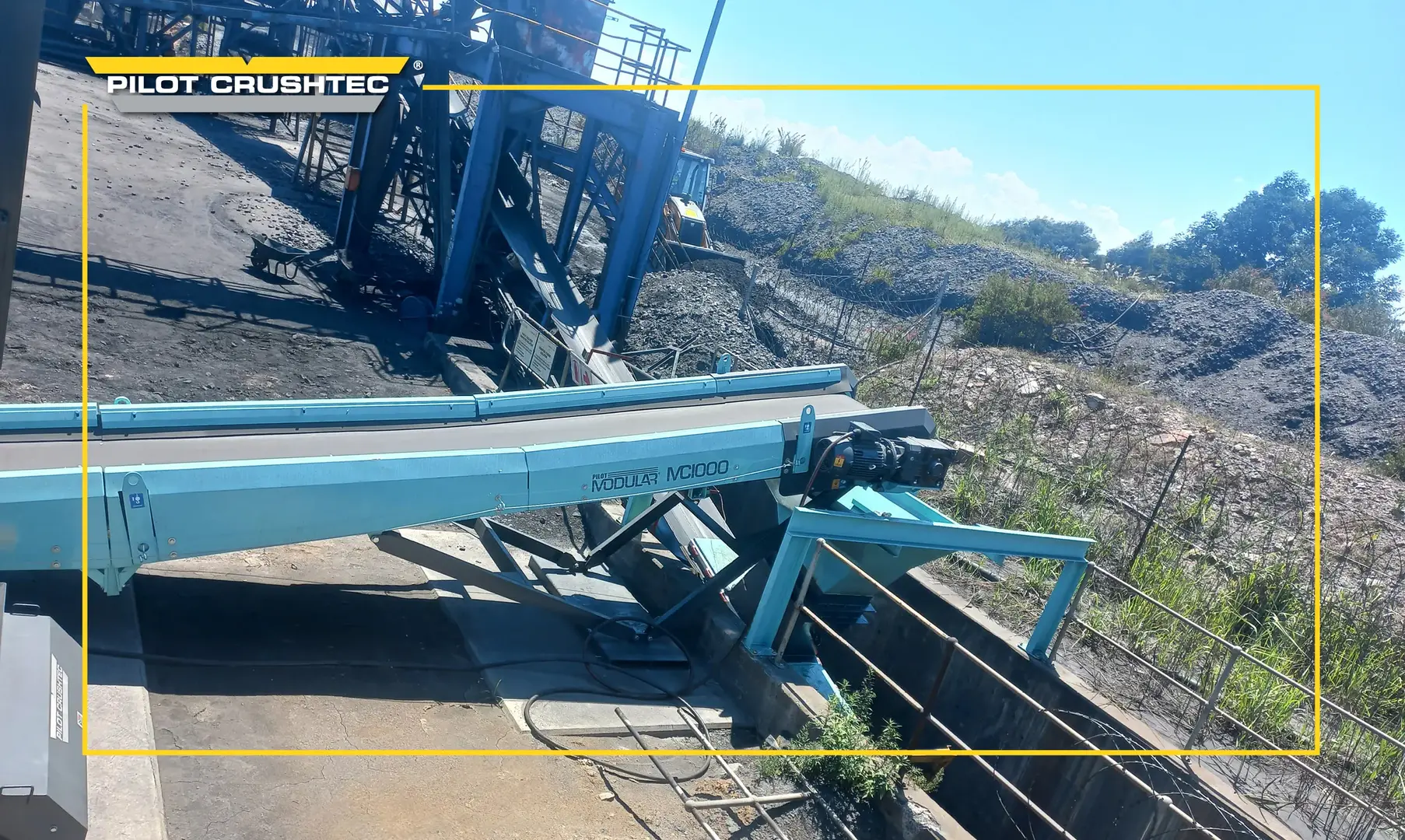

MC1000 Modular Take-Out Conveyor

The Pilot Modular Take-Out Conveyor MC1000 is a robust, stand-alone heavy-duty conveyor engineered for efficient material transfer across a range of applications, with height adjustability. While it is purpose-built to seamlessly integrate with the Pilot Modular Jaw Crusher Stations, its versatile design makes it equally effective for various other materials handling tasks.

This conveyor is designed for quick, hassle-free transportation and straightforward on-site assembly, minimising downtime and setup costs. It features an extended feed area with durable impact bars to handle heavy loads and reduce wear. Fully guarded and fitted with emergency trip lines, it meets strict industry safety standards.

Product Downloads

Download Brochure Speak to an Expert DOWNLOAD SPEC SHEET

Product Features

The MC1000 take-out conveyor is equipped with a 1000mm wide belt designed to handle large volumes of material such as aggregates and ore, ensuring high-capacity stockpiling and efficient transfer.

An integrated scraper on the tail drum clears away residual buildup, preventing slippage and ensuring reliable, low-maintenance performance – even in dusty or sticky applications.

The tail section is fully guarded to protect operators from accidental contact while preventing debris ingress for safer, cleaner operation.

Continuous skirting along the belt edges keeps fine materials contained, minimises spillage, and ensures cleaner, higher-throughput performance.

A heavy-duty impact bed at the feedboot absorbs the force of material drops, reducing belt wear and damage while maintaining smooth, consistent flow.

Safety trip lines run the full length of the conveyor, allowing immediate emergency stops from any access point for fast, effective hazard control.

Extended Benefits

01Streamlined Setup for Fast Productivity

Delivered pre-assembled and ready to run, the MC1000 integrates effortlessly with Pilot Modular crushing and screening systems, allowing rapid deployment and immediate material handling to boost on-site efficiency.

02Scalable Design for Growing Demands

Its modular build lets operators start small and expand as production needs rise, offering a cost-effective growth path without major system changes.

03Versatile Material Handling Across Sectors

From coal and aggregates to sand and construction waste, the MC1000 delivers high throughput and adaptability for quarrying, mining, and recycling operations.

04 Durable Build, Low-Maintenance

Engineered with a robust frame and abrasion-resistant components – including the 1000mm wide belt – the MC1000 is built to endure tough conditions while keeping maintenance costs and downtime to a minimum.

05Flexible Mobility for Changing Sites

Available in a wheel-mounted or fixed-base configuration, the MC1000 makes site relocation simple and cost-efficient, adapting easily to dynamic project requirements.

06Optimised Stockpiling and Space Use

With full-length skirting and adjustable configurations, the MC1000 maximises stockpile capacity, reduces material loss, and keeps sites organised for smooth, high-volume operation.
