C106Fixed Jaw Crusher

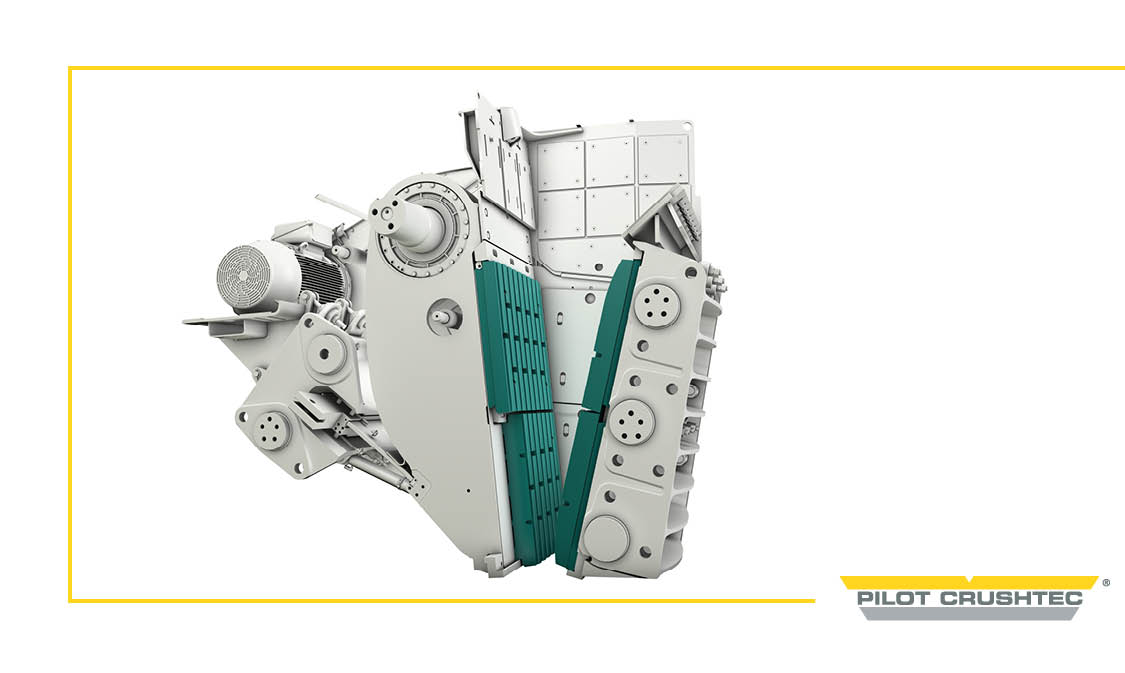

The Metso C106 Jaw Crusher is an all-round jaw crusher which is generally used as a primary crusher. This jaw crusher has been known to crush very hard, abrasive rock in quarrying and mining applications. The C-Jaw design features a steep cavity cross section with an outstanding nip angle that ensures efficient crushing and across the jaw cavity. This crusher has an aggressive, well-aligned stroke at the bottom and ensures high throughput capacity and reduction ratios.

Product Downloads

Download Brochure Speak to an Expert DOWNLOAD SPEC SHEET WATCH OUR VIDEO

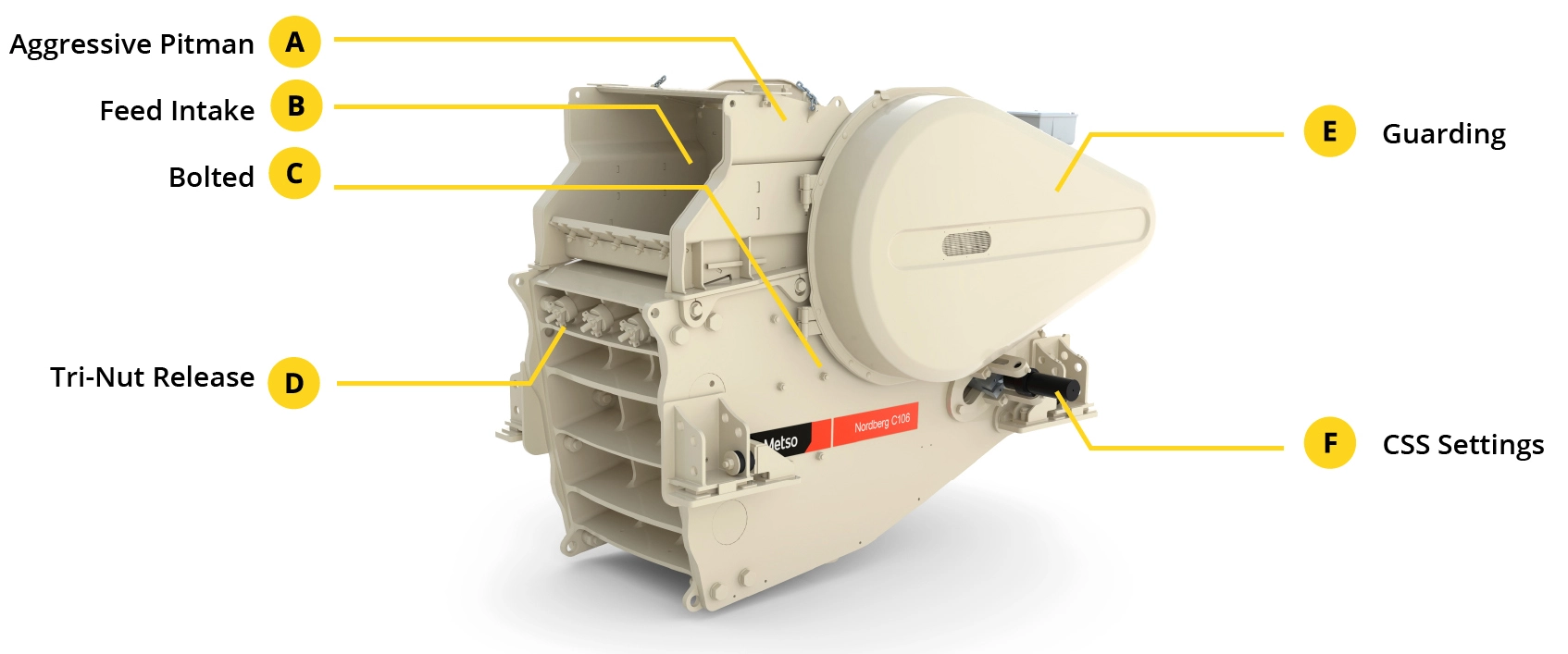

Product Features

The aggressive pitman motion of the C106 jaw crusher has been achieved with enhanced kinematics. The industry leading stroke is amplified from top to bottom, being at its longest in the lower part of the cavity.

The feed opening of the C106 jaw can handle up to a 600mm sized rock. This feed intake can handle even the coarsest materials, and the Pitman eye protection plates provides extra protection.

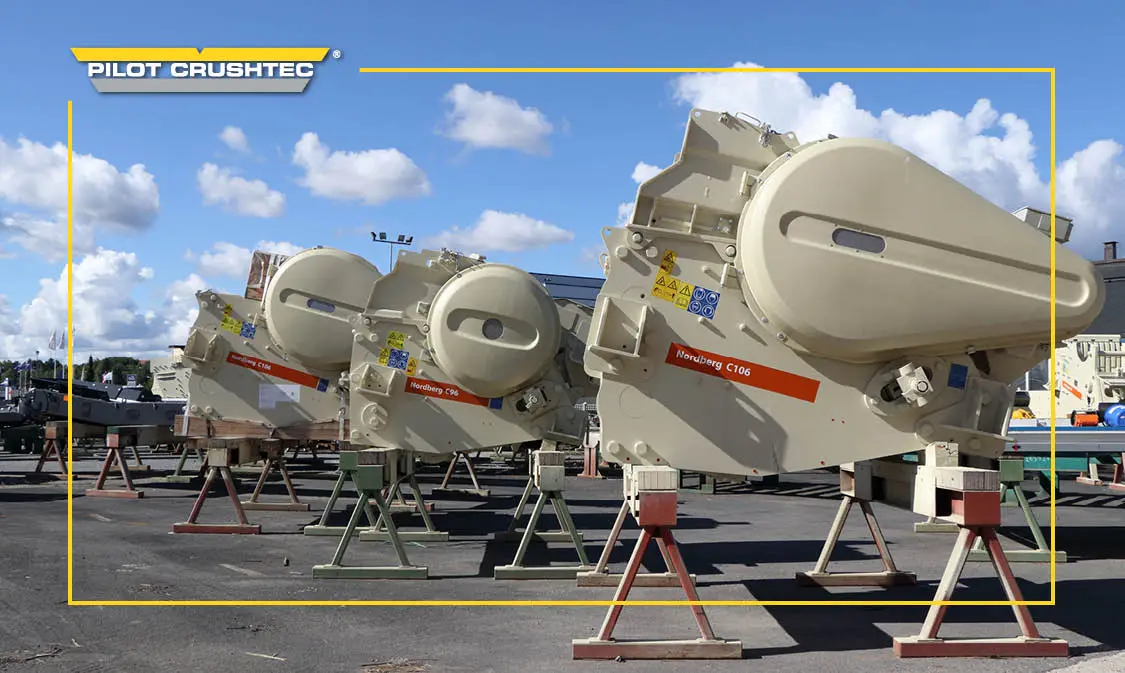

Strong pinned and bolted structure increases transportation and installation options as well as making any long-term maintenance simpler and more cost effective

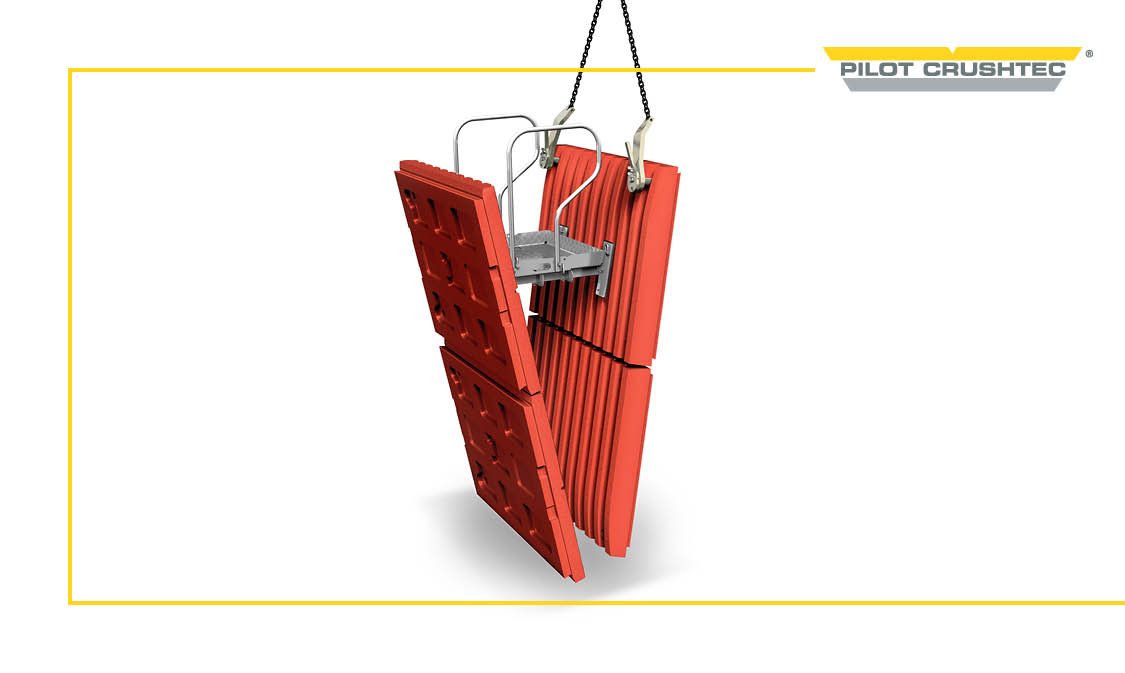

The unique tri-nut design allows for easy, safe and convenient loosening of the liners for liner changes.

The fly wheels covers are made from high tech composite guards for the fly wheels and V-Belts to ensure safety for operators and a lightweight overall design.

The setting can be adjusted with two wedges without shim plates

Extended Benefits

01Hard Rock Crushing

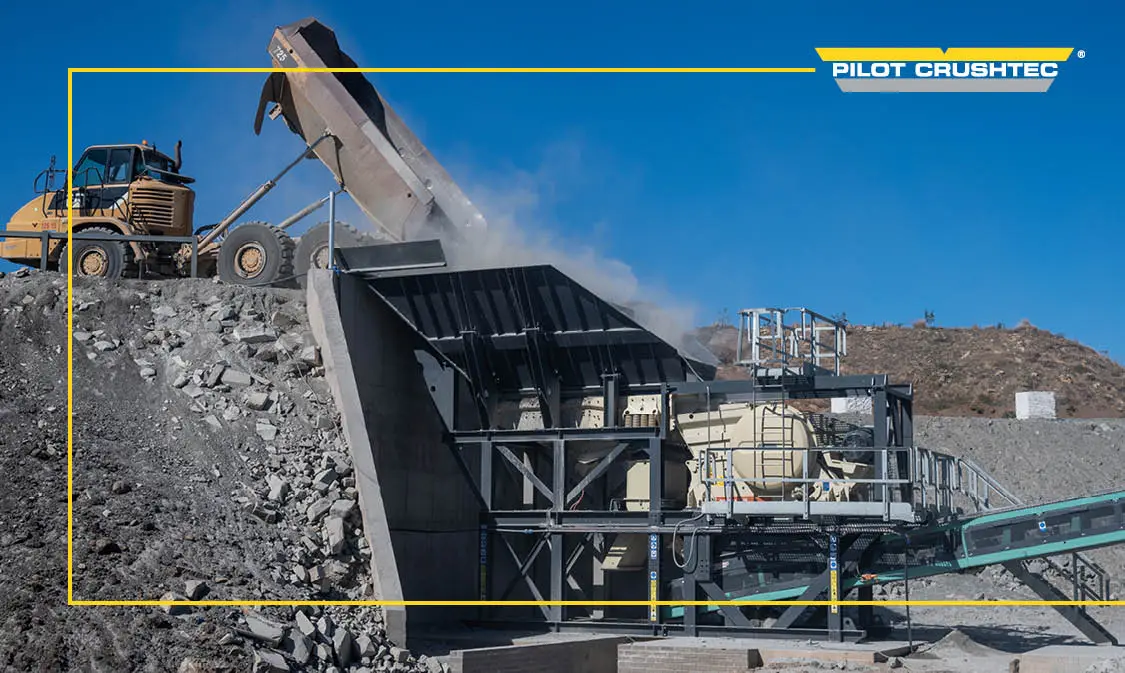

Equipped with a Metso C106 Jaw Crusher. The Nordberg® C106™ jaw crusher is designed for hard rock applications. This jaw is a primary crusher is rated at 500 tons p/hour with a scalped feed and can handle a maximum feed size of 600mm material.

025 Year / 10,000 Hour Warranty

No other warranty in the industry is as comprehensive as the Metso EPS Warranty. Extending the standard warranty from 1 year/2,000 to 2 years/4,000 hours and major components covered from year 1 to year 5.

03Optimal Nip Angle

The correct nip angle between the movable and fixed jaw ensures an excellent bite of material flowing down into the crusher. Even wet and sticky material. With this bite, the jaw crusher can crush rocks efficiently throughout the cavity.

04Hydraulic Adjustment

Adjust the Closed side setting with the hydraulic adjustment setting to ensure that your product is consistent and maintained.

05Reduction Ratio

With a maximum CSS of 70mm, the C106 can reliably reduced material size for further processing. The C106™ has an excellent reduction rate, and kinematics that provides excellent capacity during crushing.

Product Information

CRUSHER
Crusher	Jaw crusher C106
Power	110kW 4 pole Electric Motor. Integral motor support prevents differential movement between motor and crusher
Feed Opening	1060mm x 700mm
Maximum Recommended Feed Size	500mm
Setting Adjustment	Hydraulic Adjustment
Setting Range	70-200mm
Skid Frame	Heavy Duty support structure
Feeder	Metso TK-11 Vibrator Motor 2 x 2.2kW out of balance motor
Feed Hopper	26m3 heavy duty hopper
Take Out Conveyor	10m 1050mm Belt 18kw electric motor
Est Weight	46 000kg
