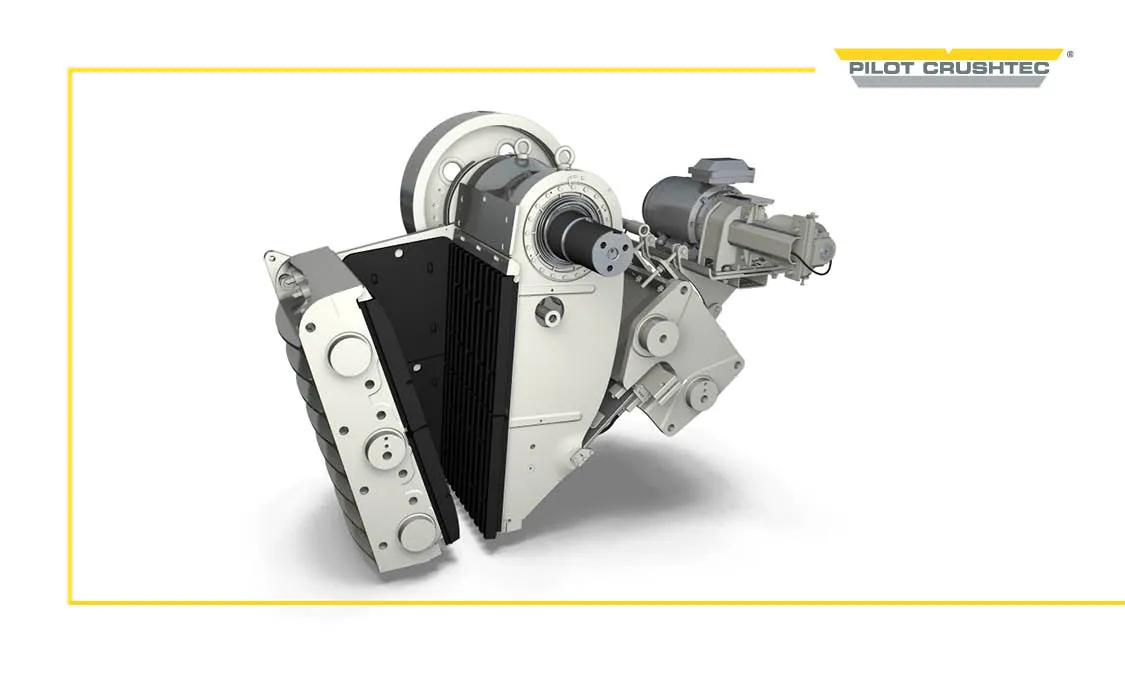

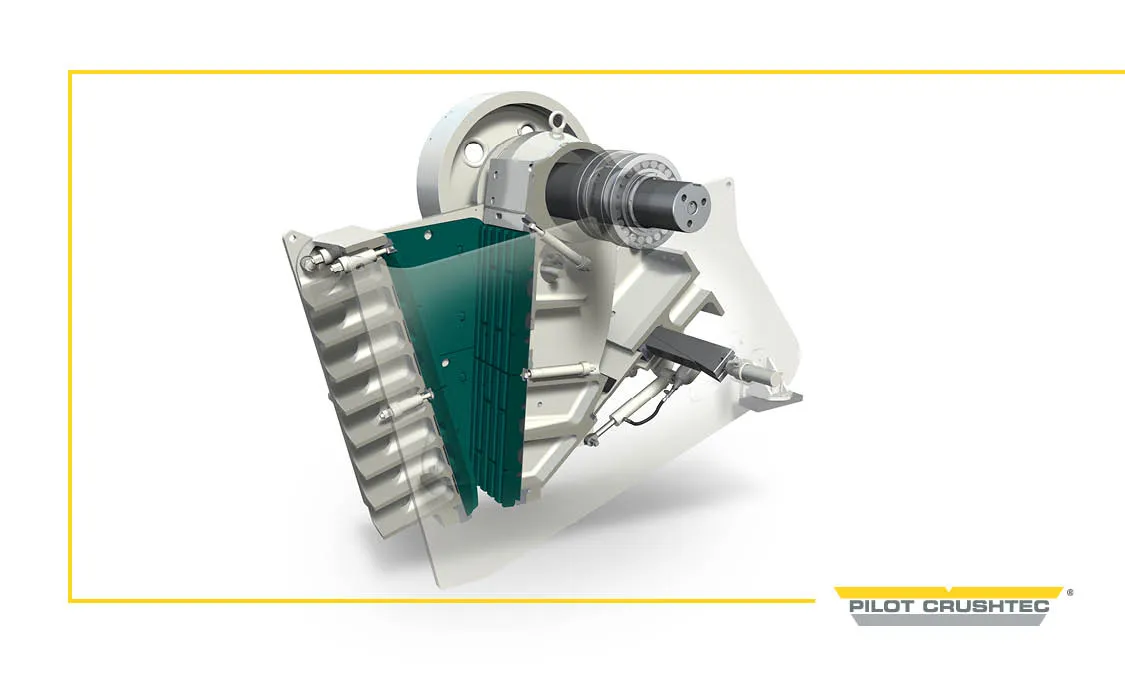

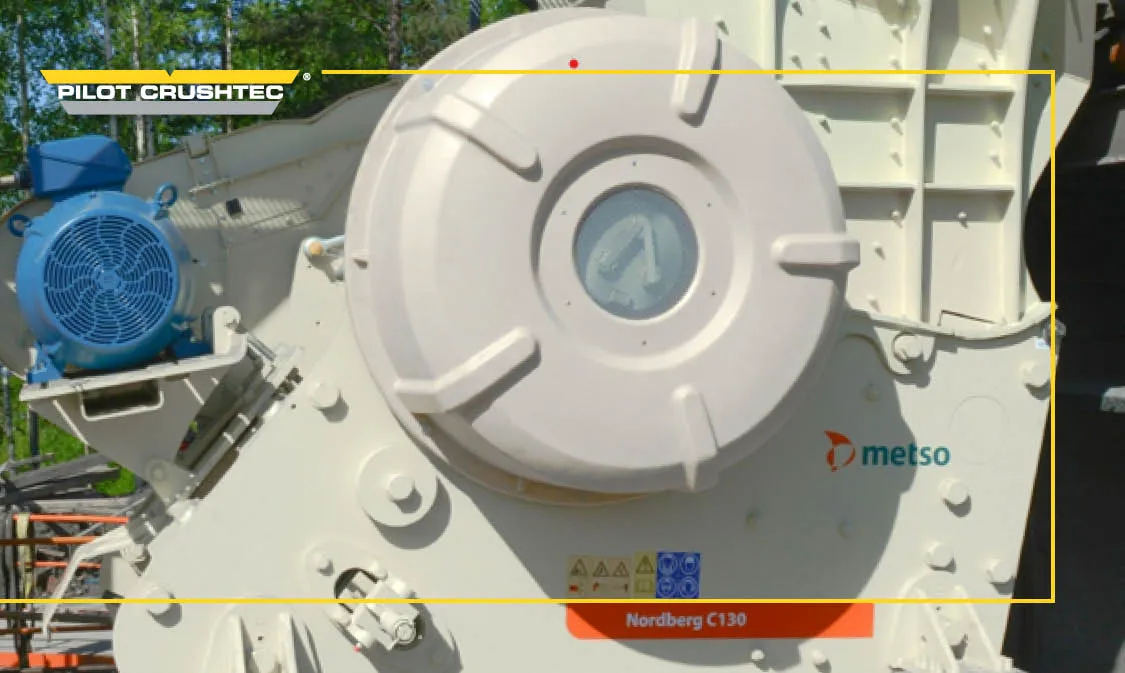

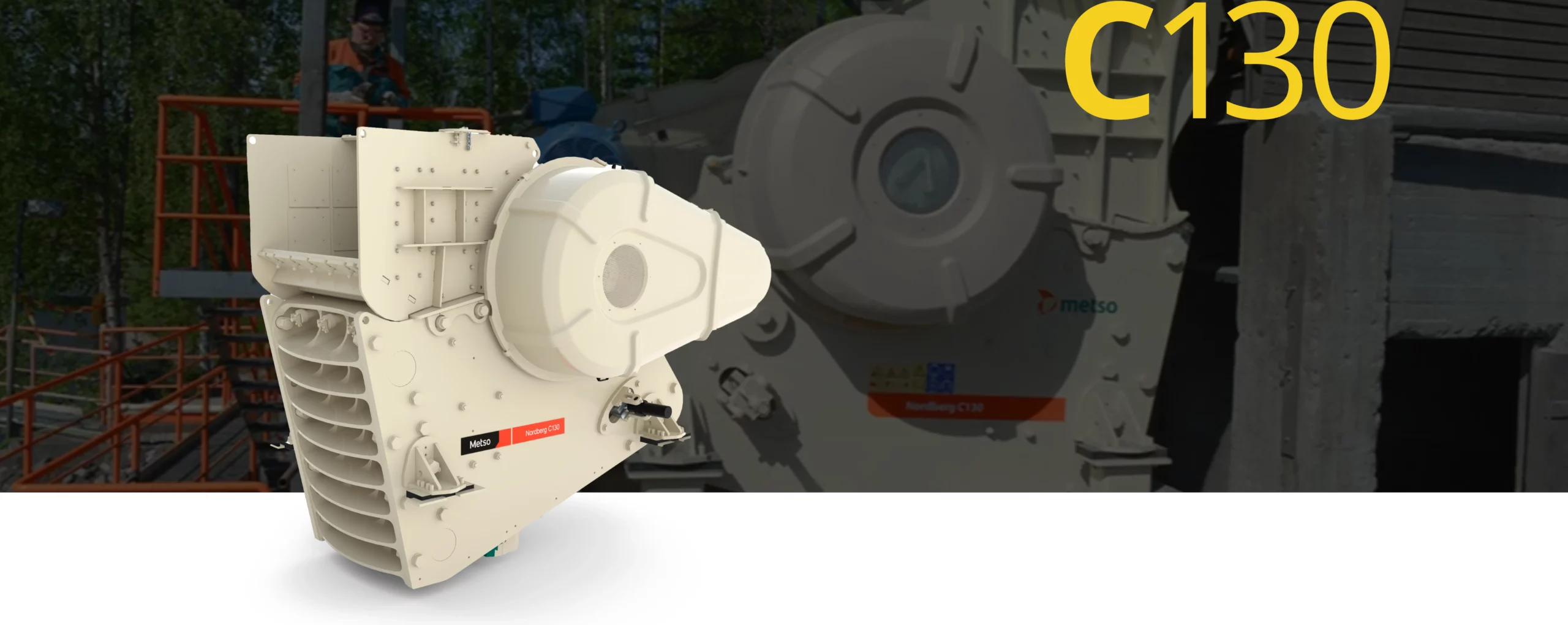

C130Fixed Jaw Crusher

The Nordberg® C130™ Jaw Crusher is designed for high-performance as a primary crusher, efficiently preparing feed material for the secondary crusher. While it’s traditionally used in the first stage of crushing, its versatility allows it to excel in various roles, depending on the material and application.

With a small nip angle and superior kinematics, the C130™ provides aggressive crushing across the entire length of the cavity, ensuring optimal performance. The deeper 1,000 mm (39”) feed opening accommodates coarser feed material, minimizing the need for blasting and hammering. Plus, the easy stroke adjustment enhances its versatility, making it a reliable all-around solution for a wide range of crushing needs.

The Nordberg® C130™ offers unmatched flexibility, high throughput, and efficiency, making it an ideal choice for operations seeking both power and adaptability in a single jaw crusher.

Product Downloads

Download Brochure Speak to an Expert DOWNLOAD SPEC SHEET WATCH OUR VIDEO

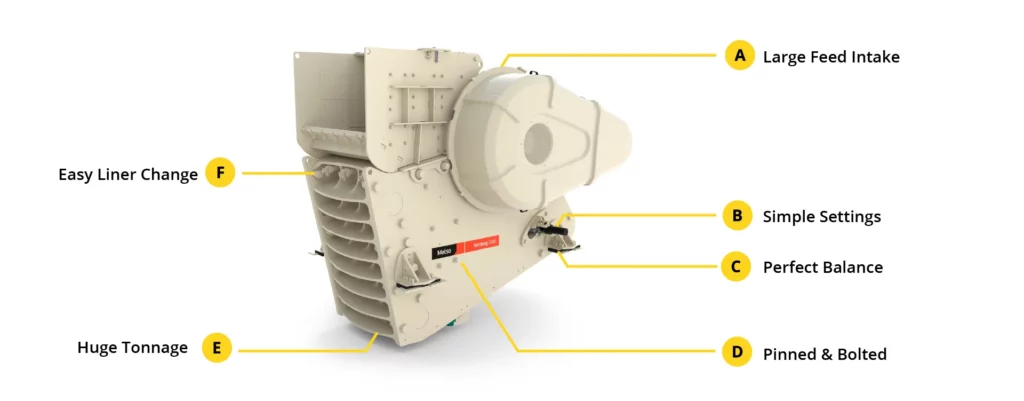

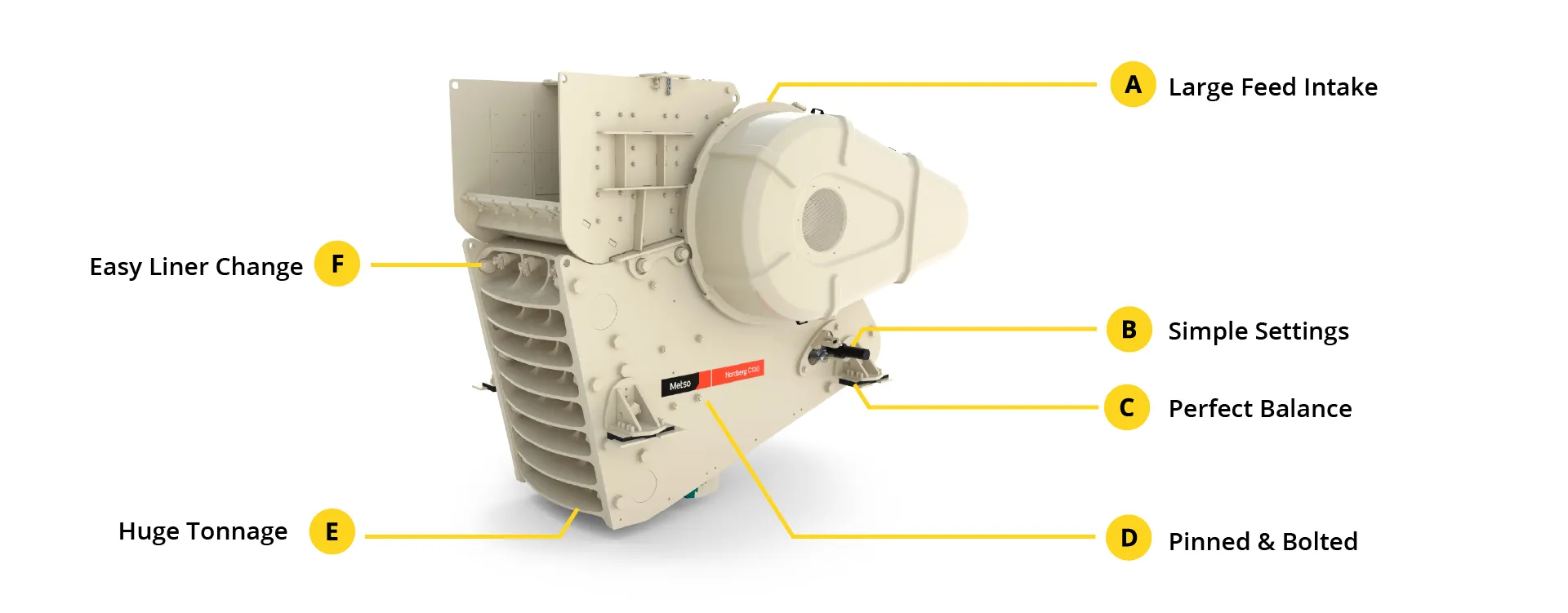

Product Features

Nordberg C Series jaw crushers have excellent material intake capacity because the feed opening has the right width to depth ratio. The feed intake can accept even the coarsest materials with its 1,300mm x 1,000mm feed opening.

The setting can be adjusted with two wedges without shim plates. CSS Adjustments are mechanical as standard.

Support brackets and dampers absorb vibrations & no anchor bolts are needed for installation.

C Series jaw crushers are based on pinned and bolted, non-welded frame construction. This design principle contributes to their excellent fatigue life and strength, which has been proven in FEM calculations, extensive simulations and in the toughest real-life applications.

C Series jaw crushers have proven to be reliable and productive in thousands of mining, quarrying, recycling and industrial applications. Developed to crush the hardest ores and rocks, C130 jaw crushers also perform outstandingly and can achieved throughput up to 800 tons per hour.

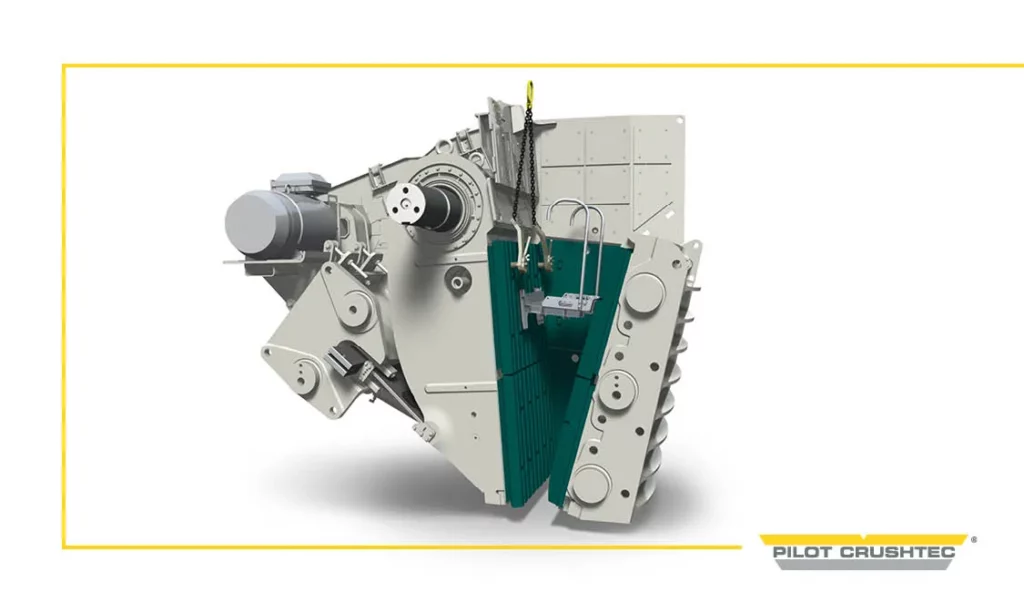

C Series jaw crushers are delivered with safe-to-use lifting tools for daily maintenance tasks. This includes a maintenance platform to make changing and rotating wear parts safer, quicker and even more ergonomic. Lifting tools for jaw dies, cheek plates and toggle plate are all part of the standard delivery from Metso.

Extended Benefits

01Easy to Install and Transport

The C130 jaw crusher is easily installed in surface, underground or mobile applications. The pin and bolted structure enables that the jaw crusher can be swiftly disassembled and transported cost-effectively also to the deepest mines.

025 Year / 10,000 Hour Warranty

No other warranty in the industry is as comprehensive as the Metso EPS Warranty. Extending the standard warranty from 1 year/2,000 to 2 years/4,000 hours and major components covered from year 1 to year 5.

03Safe to Operate and Maintain

Safety and reliability have been the main design principles of C130 jaw crusher. The non-welded frame construction ensures excellent fatigue strength and extended crusher lifetime. The composite guards are lighter and durable making them faster and easier to handle. Special lifting tools, on the other hand, limit the number of service points which is why this crusher is simpler and safer for personnel.

04Optimal Nip Angle

The correct nip angle between the movable and fixed jaw dies ensures good bite and material flow down, even with slippery feed material. It also reduces wear on the jaw dies, reducing operating costs. With a good grip, the jaw crusher can crush rocks efficiently through the entirety of the cavity, and the nip angle can be further improved with an intermediate plate.

Product Information

Skid Frame Heavy-duty support structure
CRUSHER
Crusher	Jaw crusher C130
Power	185 kW
Feed Opening	1300 x 100mm
Maximum Recommended Feed Size	800mm
Setting Adjustment	Hydraulic Adjustment
Setting range	100-250mm
Est Weight	40 150 kg
