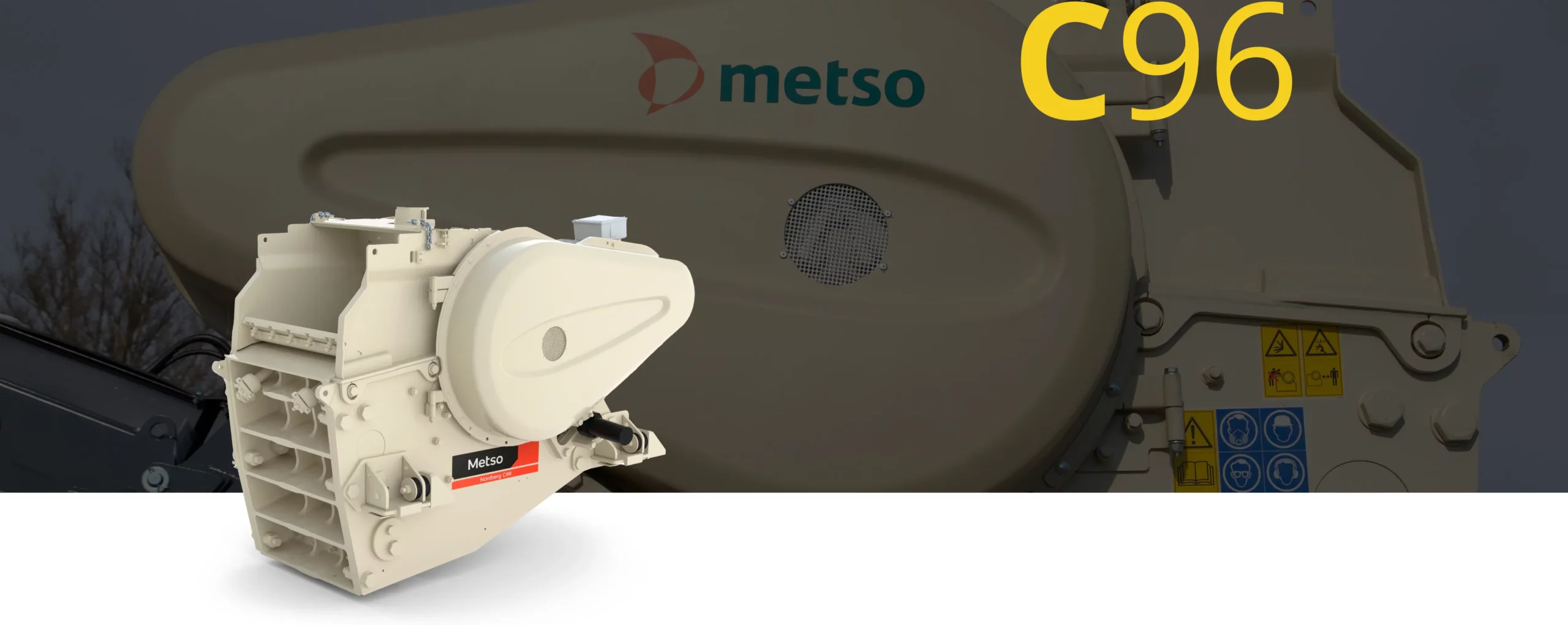

Metso C96 Jaw Crusher

C96Modular Jaw Crusher

The Metso C96 Jaw Crusher is an all-round crushing machine well equipped to serve in stationary and mobile applications both on the ground and underground. Generally used as a primary crusher, Nordberg® C96 can also be utilised in later stages of the size reduction process.

This jaw crusher shares many of the same features as other jaw crusher models in the Nordberg® C-Series Crusher range, whose height gives a steep cavity cross-section, and the nip angle high up in the cavity, together with an aggressive well-aligned stroke at the bottom, ensure high throughput capacity and reduction

metso logo

Product Downloads

website icon
90Kw Motor
460 feed size

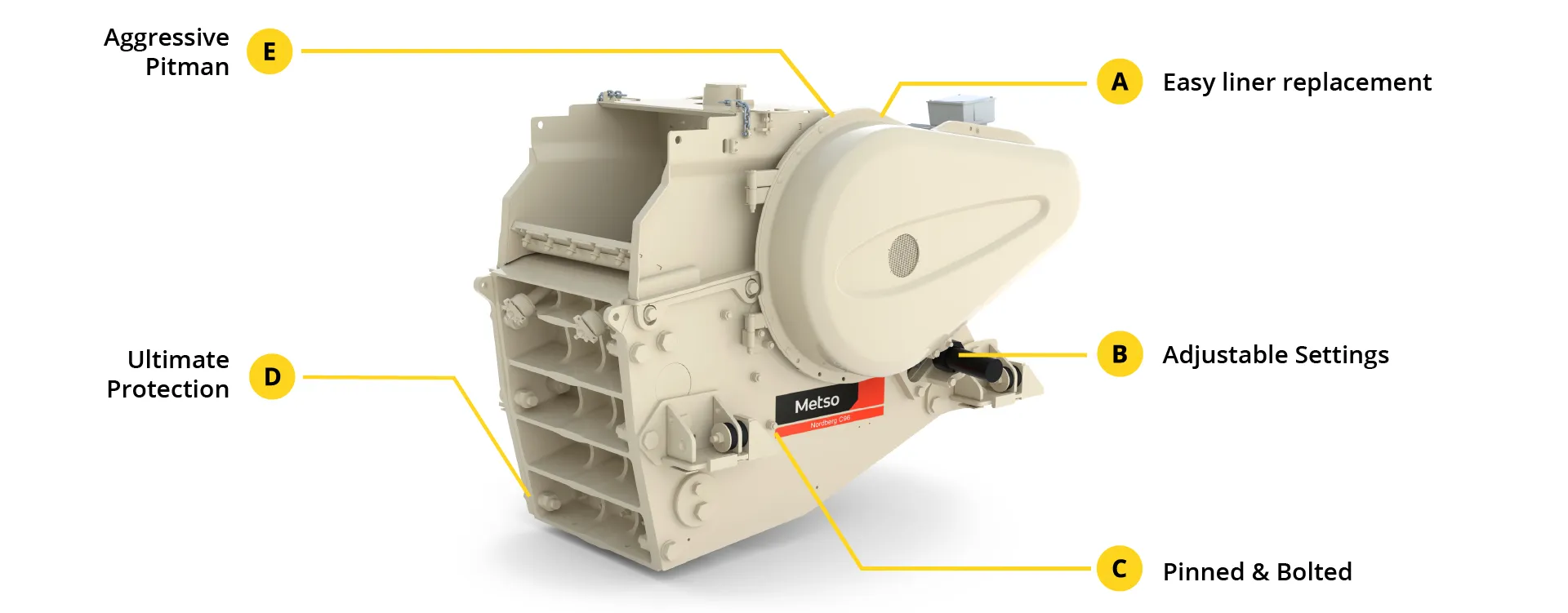

Product Features

C96 Jaw Crusher
icon

All Nordberg C Series jaw crushers are delivered with safe-to-use lifting tools for daily maintenance tasks. This includes a maintenance platform to make changing and rotating wear parts safer, quicker and even more ergonomic.

icon

The setting can be adjusted with two wedges without shim plates. Adjustments are mechanical as standard.

icon

Nordberg® C Series jaw crushers are based on pinned and bolted, non-welded frame construction. This design principle contributes to their excellent fatigue life and strength. This, combined with high-quality steel casting design and large size spherical roller bearings, delivers the reliability that Nordberg C Series jaw crushers are known for.

icon

Protection plates behind the jaw dies protect the steel castings against wear. Continuous development of high quality castings with long ribs in two directions assist with long term reliability of crusher main frames.

icon

Getting the kinematics of the movable jaw dies right is an important aspect when considering the performance of a jaw crusher. Our industry-leading stroke is amplified from top to bottom, being at its longest in the lower parts of the cavity. This increases the open area between the jaw dies allowing the material to have more space to get out, while also enabling inter-particle crushing

Extended Benefits

01Hard Rock Crushing

The C96 jaw crusher is designed for hard rock applications. This jaw is a primary crusher engineered to perform for a long time. It is designed to be reliable and simple to operate.

025 Year / 10,000 Hour Warranty

No other warranty in the industry is as comprehensive as the Metso EPS Warranty. Extending the standard warranty from 1 year/2,000 to 2 years/4,000 hours and major components covered from year 1 to year 5.

03Long Term Investment

At Metso, we know that C Series jaw crushers are long-term investments for our customers. That’s why we have designed them for dependable productivity over their entire lifetime, year after year. The key to their proven reliability and high uptime is their revolutionary pinned and bolted design without welded seams. This, combined with swift installation and easy maintenance, provides high availability to improve profitability and shorten the pay-back time of the investment

04Backup Support

With a large inventory of critical spare and wear parts available at our Jet Park premises, Pilot Crushtec has technical and spares support for the C130 to ensure that you limit downtime, should a breakdown occur.

05Exceptional Jaw Crusher Performance

The C96 has an excellent reduction ratio, and kinematics that provides excellent capacity during crushing. The large variance of setting CSS enables flexibility for producing different end products. The unit has a large feed opening to minimize interruptions in continuous production. C96 utilizes premium quality components and wear-protected steel castings to maximize lifetime.

06Super Safety comes Standard

Lighter and more durable composite guards are safer and easier to handle and improve access. Maintenance platform for crushing cavity maintenance. C Series jaw crushers are always delivered always with specially designed lifting tools. Fully guarded at drive, tail and along conveyor sides. Wrap around safety trip wires.

C96 Jaw Crusher
C96 Jaw Crusher

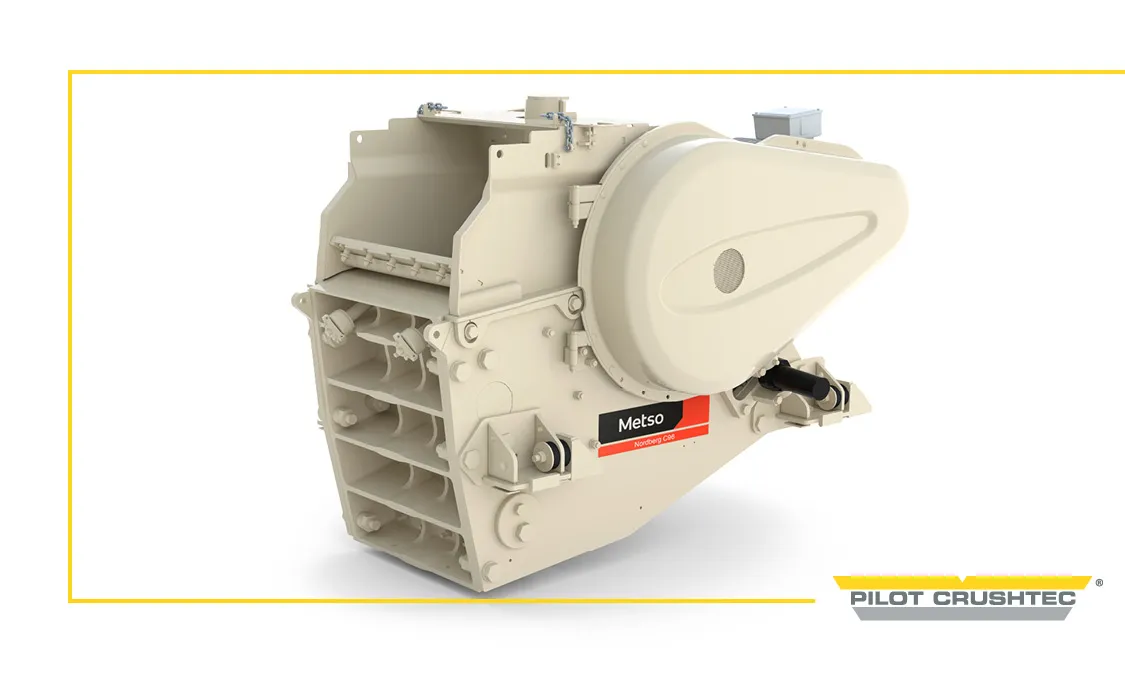

Metso C96 Jaw Crusher

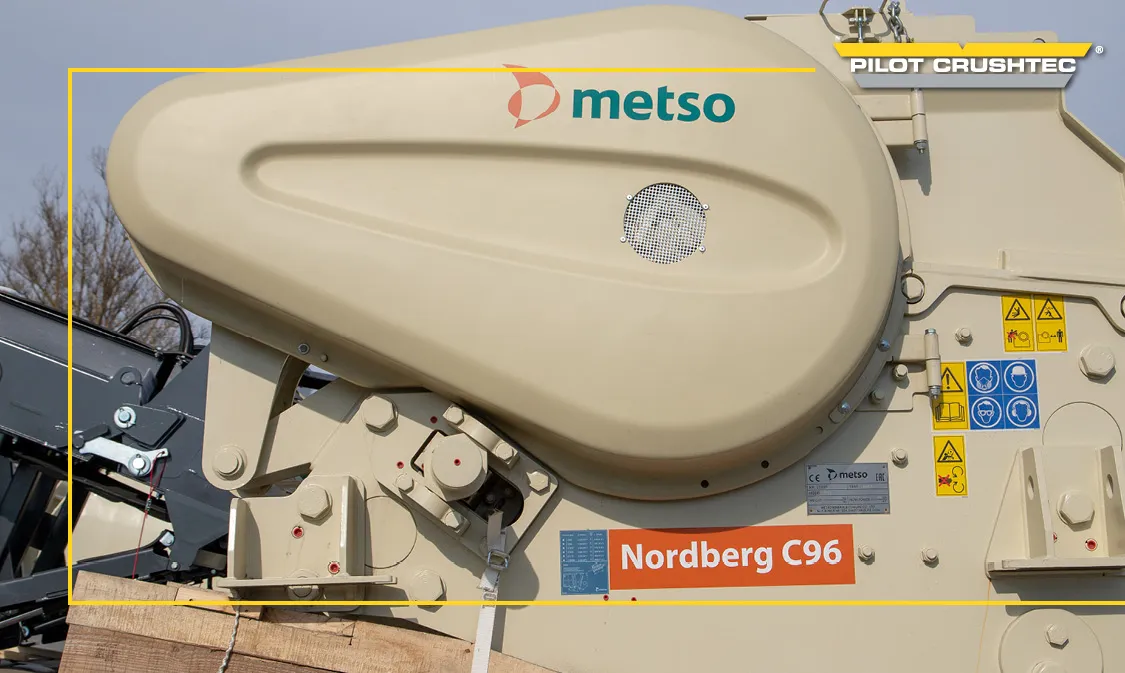

Nordberg C96 Jaw Crusher

Product Information

CRUSHER
Crusher Jaw crusher C96
Power 90kW Electric Motor. Integral motor support prevents differential movement between motor and crusher
Feed Opening 930 X 580mm
Maximum Recommended Feed Size 460mm
Setting Adjustment Manual Adjustment
Setting Range 60-175mm
Take Out Conveyor 10M, 1050mm Belt 18kw electric motor
Est Weight 38 000kg
