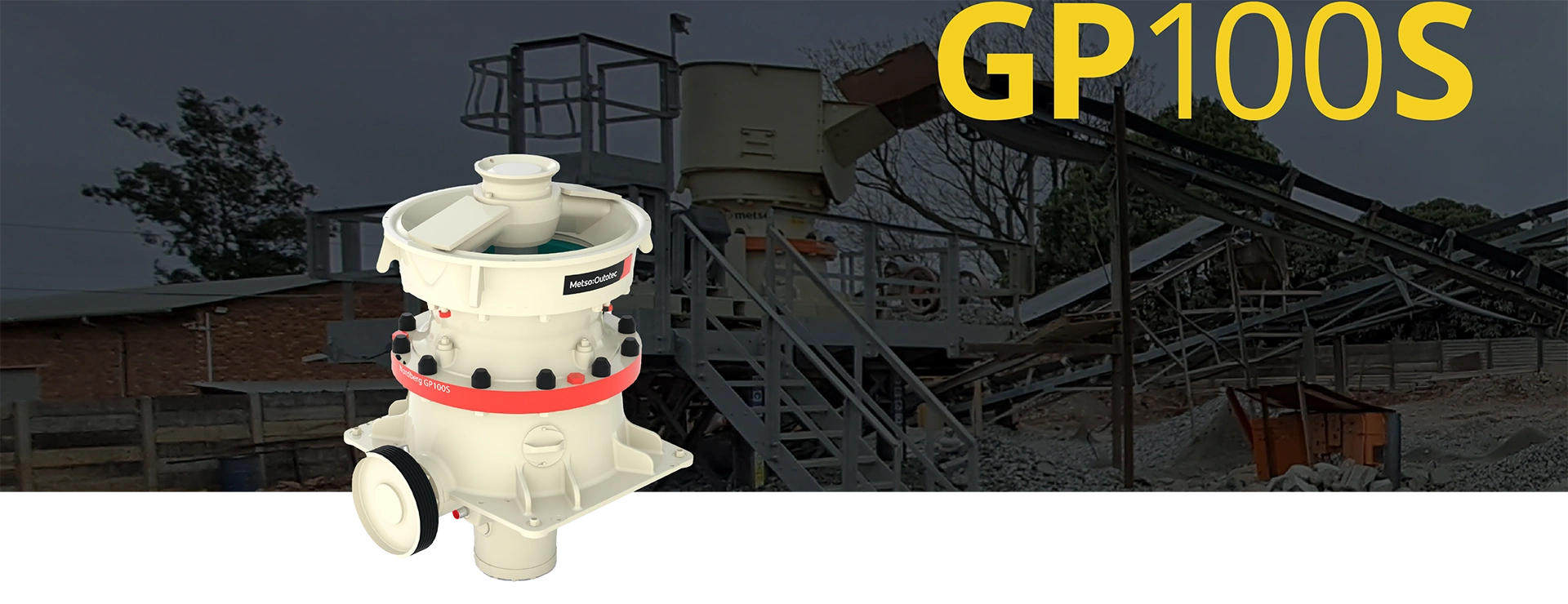

Metso GP100S Cone Crusher

GP100SFixed Cone Crusher

The Nordberg® GP100S cone crusher is a compact yet powerful secondary cone crusher model, engineered for exceptional performance in aggregates production and specific mining operations. Featuring a large feed opening, it ensures uninterrupted operation and increased capacity, making it ideal for demanding secondary crushing tasks. Its optimised casting design supports a higher power rating than competitors with similar head diameters, delivering maximum yields of high-quality end products. The steep head angle and adjustable stroke and cavity settings enable trouble-free operation under varying feed conditions, ensuring a high reduction ratio and excellent cubicity.

metso logo

Product Downloads

80-250 Tons
Website ICON
150mm feed size

Product Features

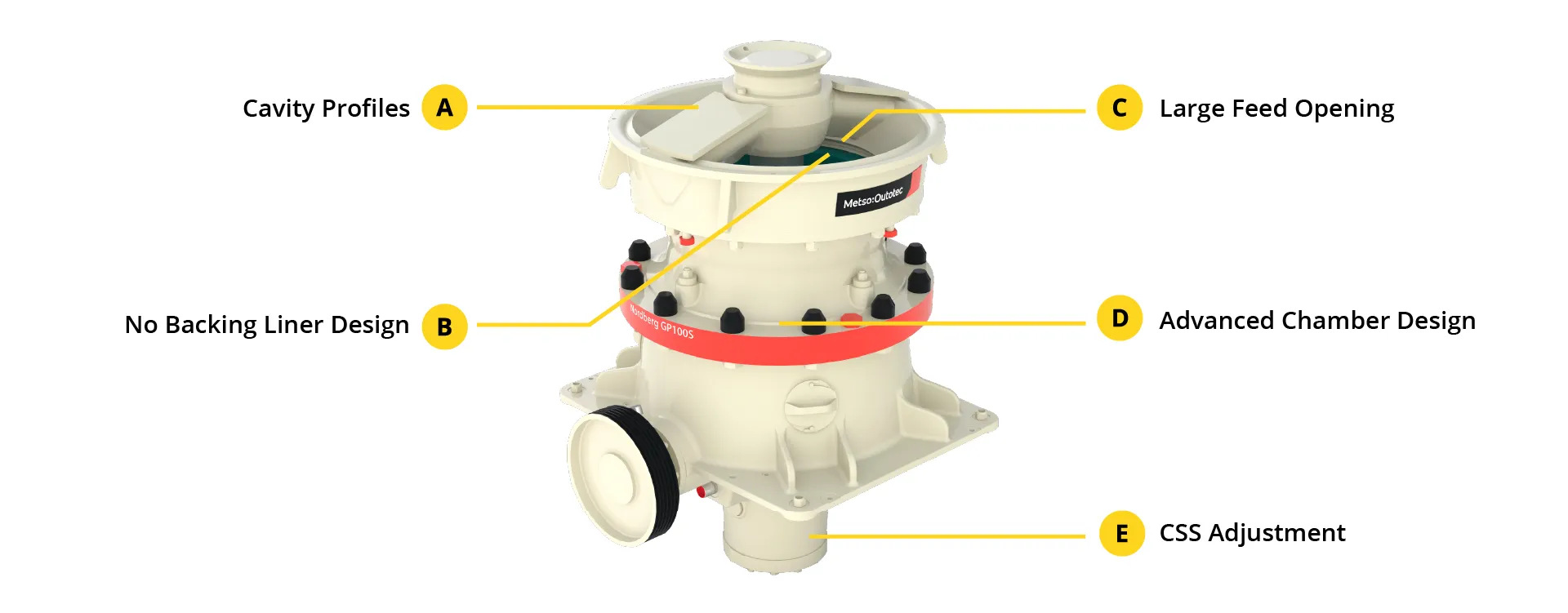

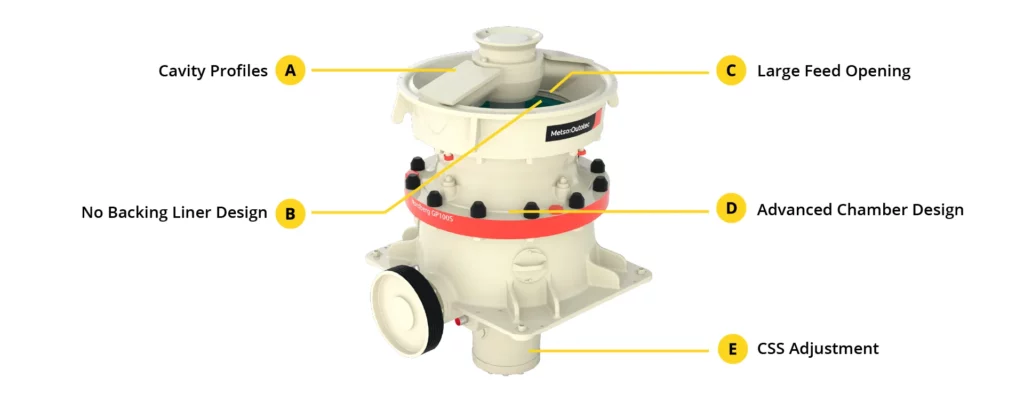

GP100S Cone Crusher diagram
icon

A wide range of cavity profiles designed for optimal performance, offering steep, high-capacity cavities that ensure efficient crushing of extra-coarse to extra-fine feed materials. These profiles, combined with adjustable stroke settings, provide trouble-free operation and high reduction ratios across varying feed conditions.

icon

A liner design that eliminates the need for backing material during liner changes, simplifying maintenance and reducing downtime. This innovative system ensures secure liner installation while maintaining operational efficiency and crusher integrity.

icon

Large feed opening accommodates extra-large feed material relative to its size, which optimises throughput and minimises blockages.

icon

Excels at processing difficult materials like slabby, slippery, or moist feed due to its steep and long vertical cavity design.

icon

An adjustable closed side setting (CSS) that allows precise control over product size and throughput, optimising performance for varying feed conditions. This flexibility ensures consistent production of high-quality end products while maintaining operational efficiency.

Extended Benefits

01Hard Rock Crushing

GP100s can work in the hardest applications with the best long term performance.

02Superior Reliability

This cone crusher has a simple but strong two-point supported shaft design that offers mechanical reliability

03High Productivity

The GP100S achieves high productivity through its large feed opening, high power rating, and adjustable cavity profiles, which optimise throughput and minimise downtime across varied feed conditions. Its steep, specialised cavity design and automation ensure excellent end-product quality with consistent cubicity and high reduction ratios, even for challenging materials.

04Easy installation, use and maintenance

The GP100S a low installation height and top-down disassembly for quick servicing. Remote adjustment of settings like CSS and stroke enhances safety and efficiency, minimising downtime in secondary crushing applications.

05Optimised performance

Thanks to the adjustable eccentric stroke the cone crusher can handle low to high tonnages while still maintaining a choke feed in the crusher chamber. Stroke also assists in cases where power draw is critical and can be reduced to decrease power.

06Super Safety comes Standard

Heavy duty skid frame with spacious stairs, handrails, walkways and maintenance platform combined with several emergency stop buttons as well as an IC Controller to monitor and protect the cone crusher also allowing interlocking with the rest of the plant.

075 Year/10 000 Hour Warranty

No other warranty in the industry is as comprehensive as the Metso EPS Warranty. Extending the standard warranty from 1 year/2,000 to 2 years/4,000 hours and major components covered from year 1 to year 5.

08Backup Support

With a large inventory of critical spare and wear parts available at our Jet Park premises, Pilot Crushtec has technical and spares support for the GP100s to ensure that you limit downtime, should a breakdown occur.

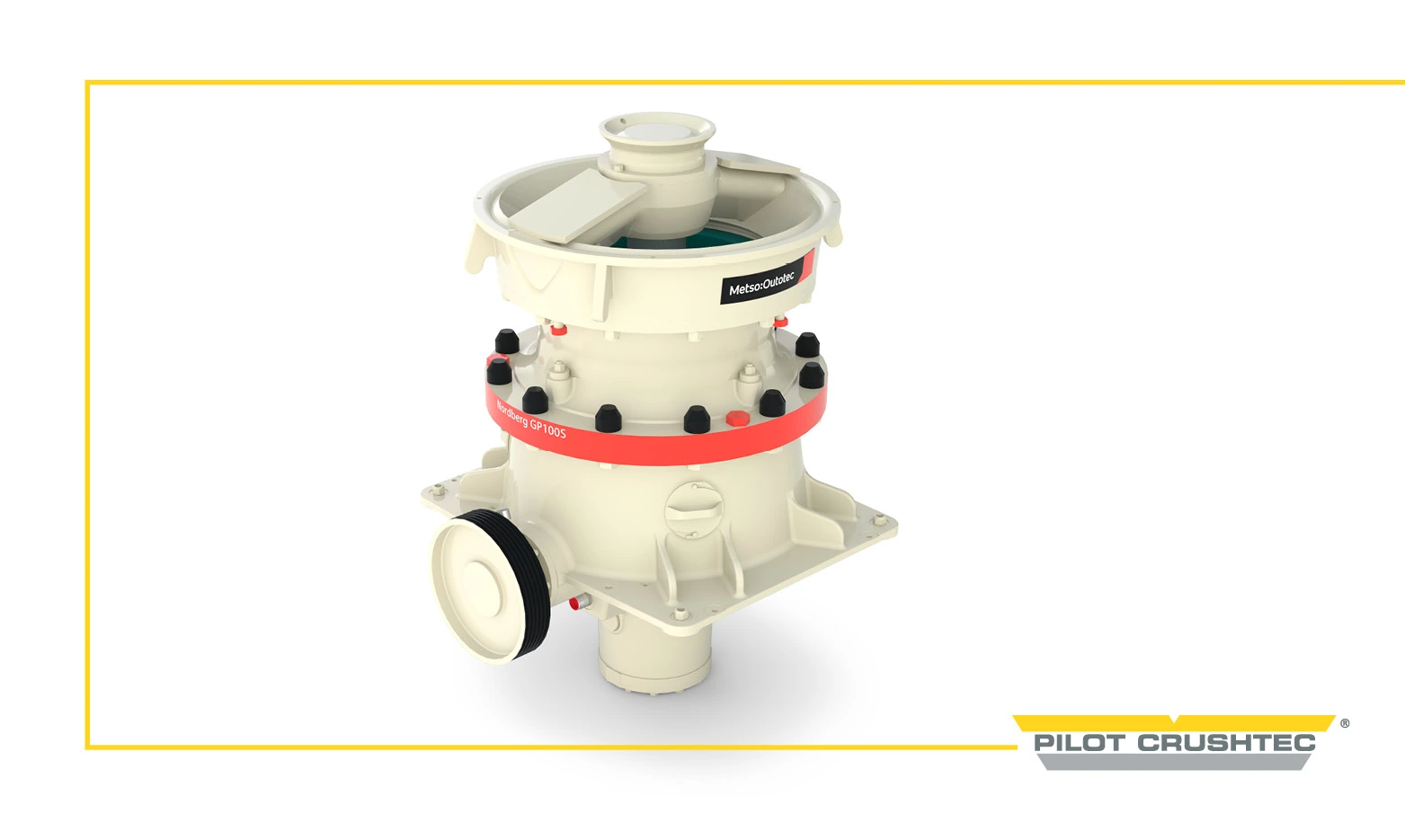

Metso Nordberg GP100S Cone Crusher

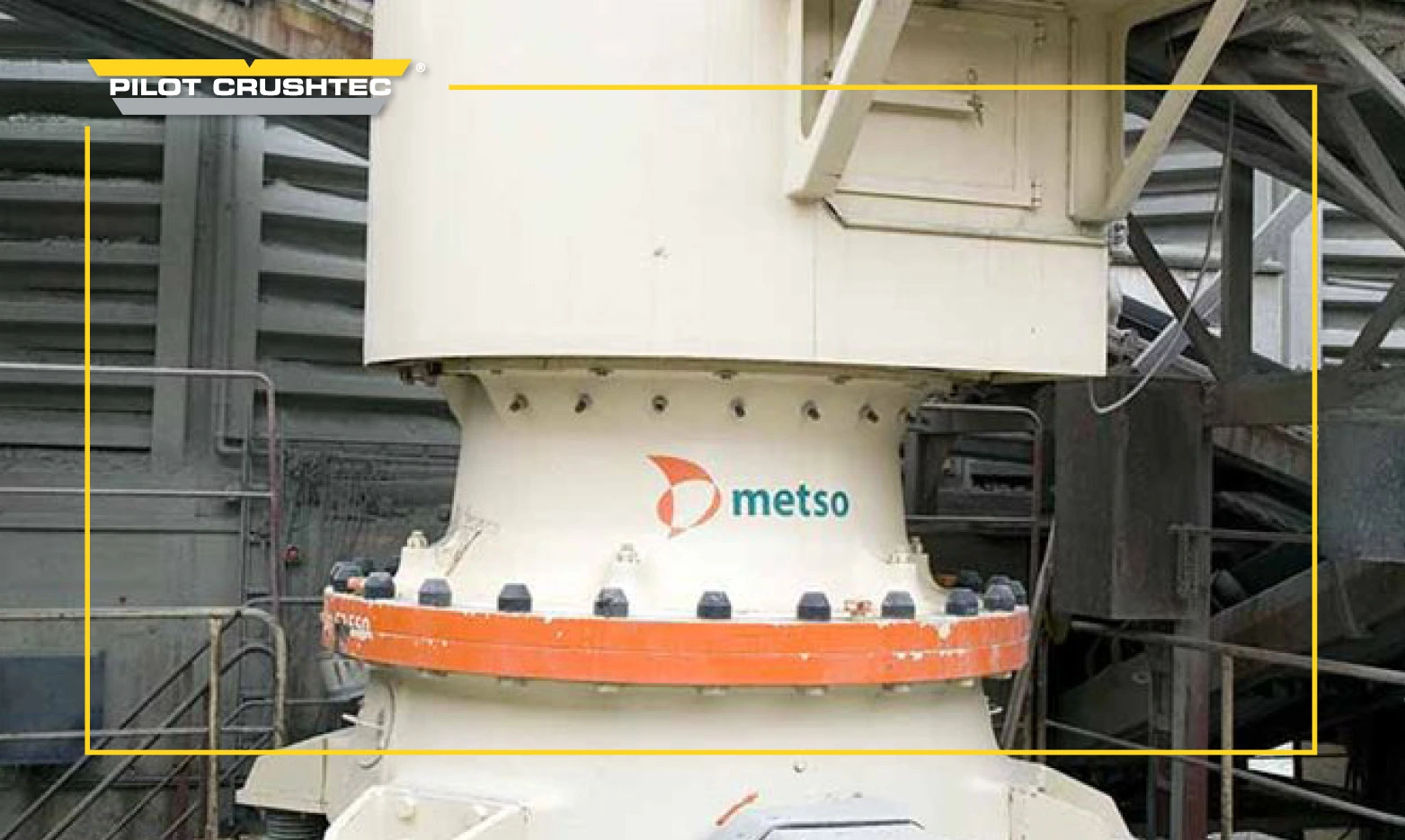

GP100S Cone Crusher

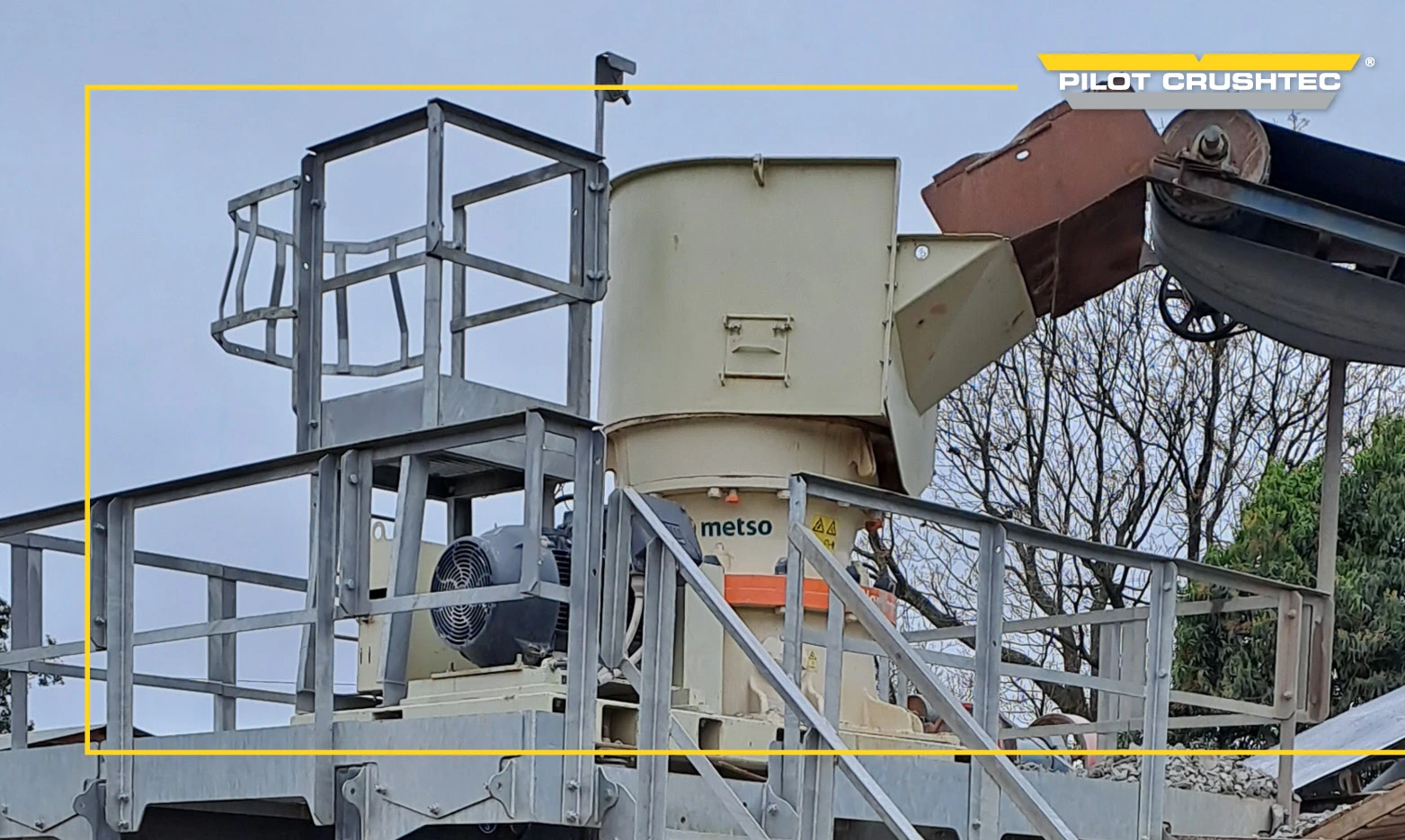

GP100S Cone Crusher

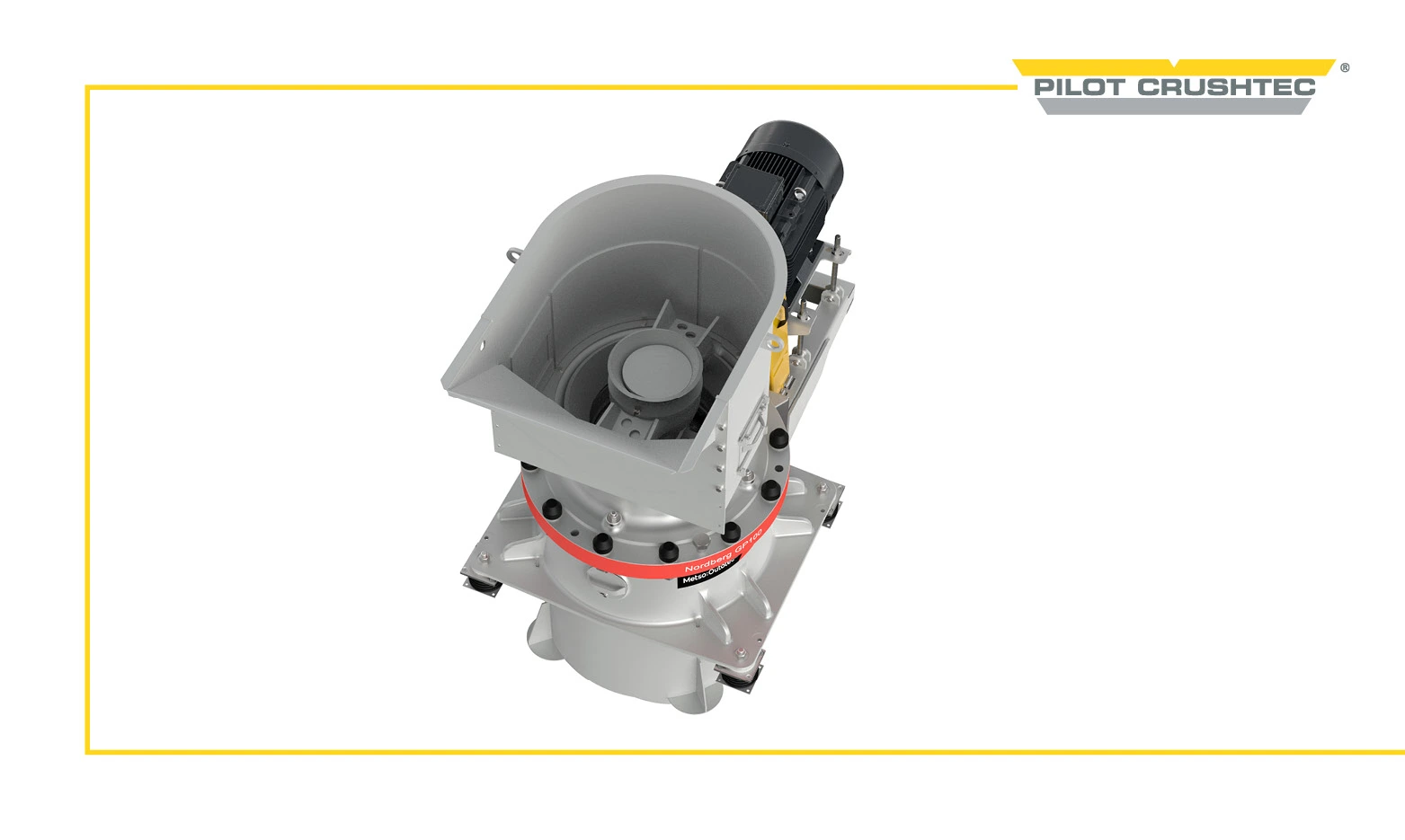

GP100S Cone Crusher

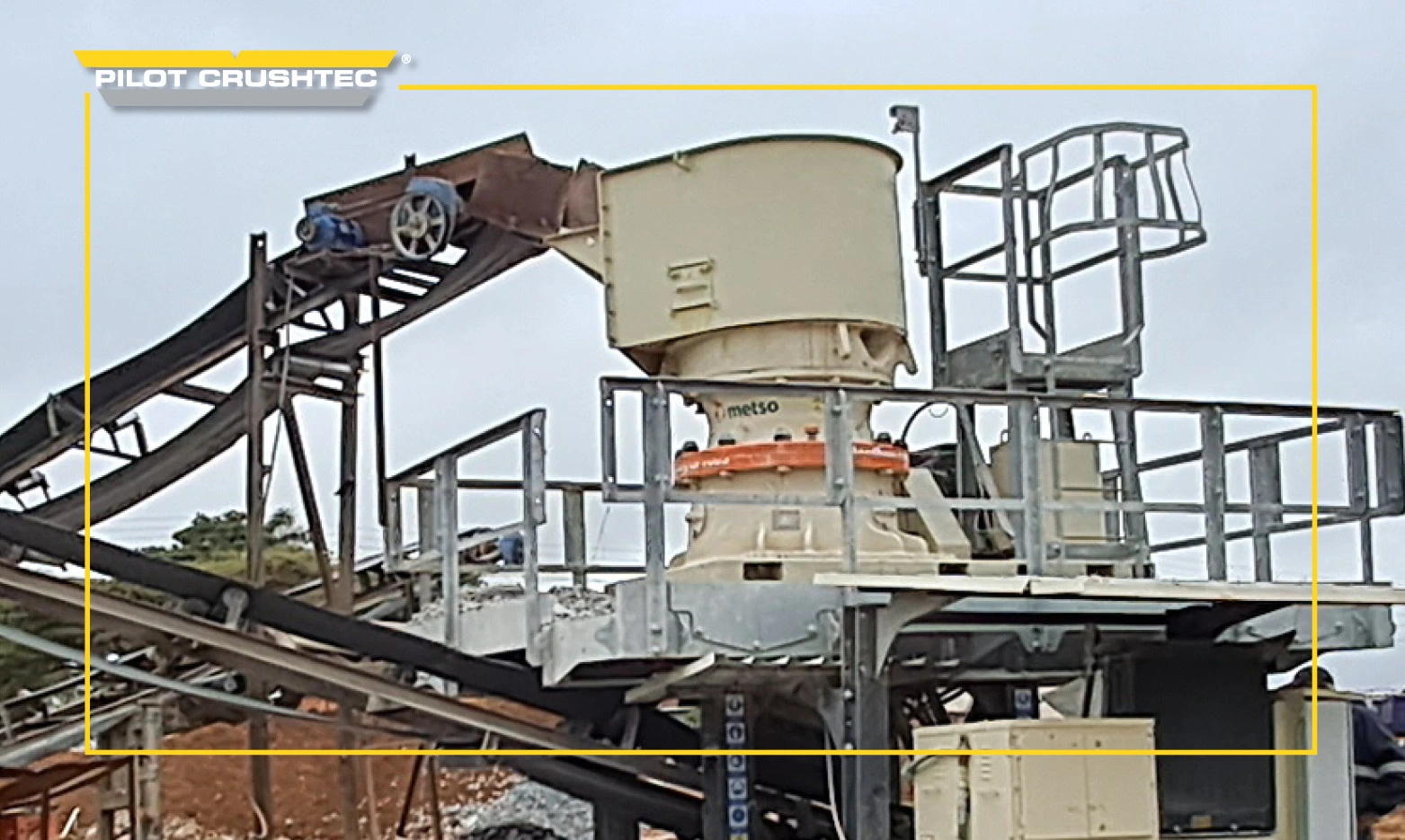

Metso GP100S Cone Crusher

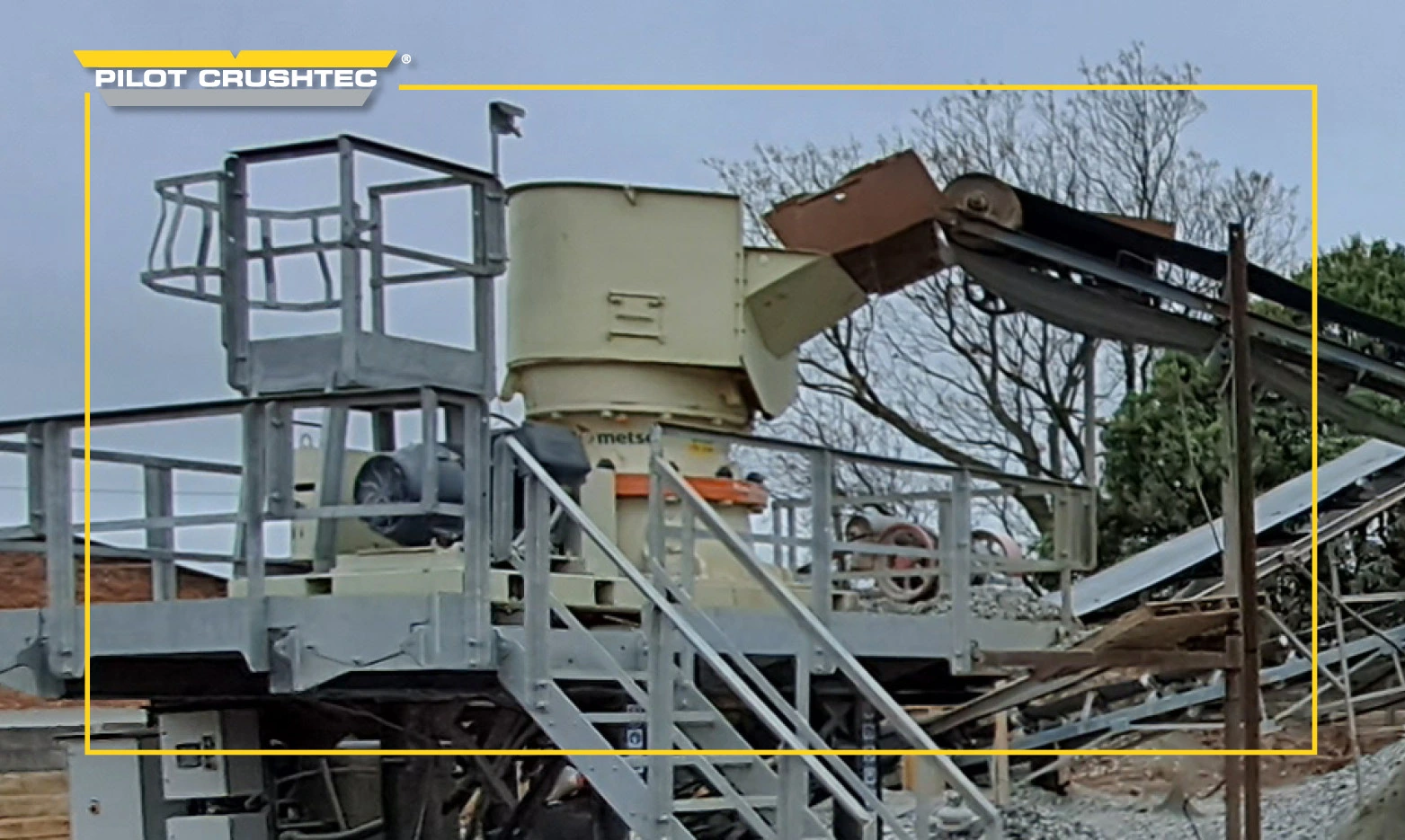

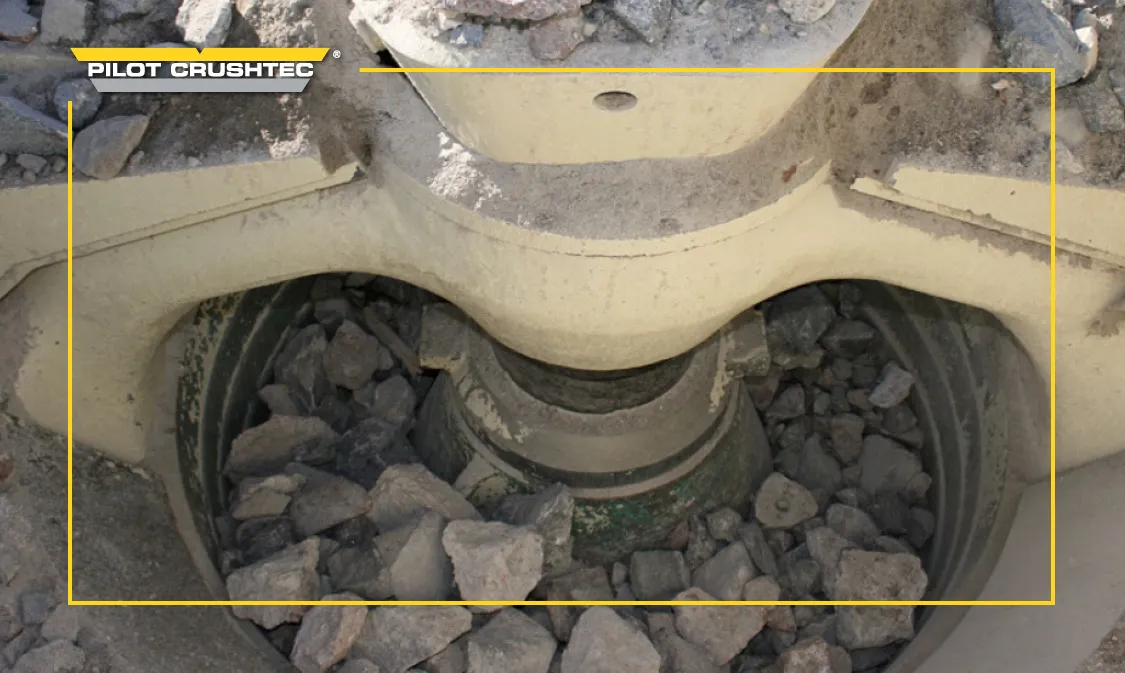

GP100S Cone Crusher in action
GP100S Cone Crusher

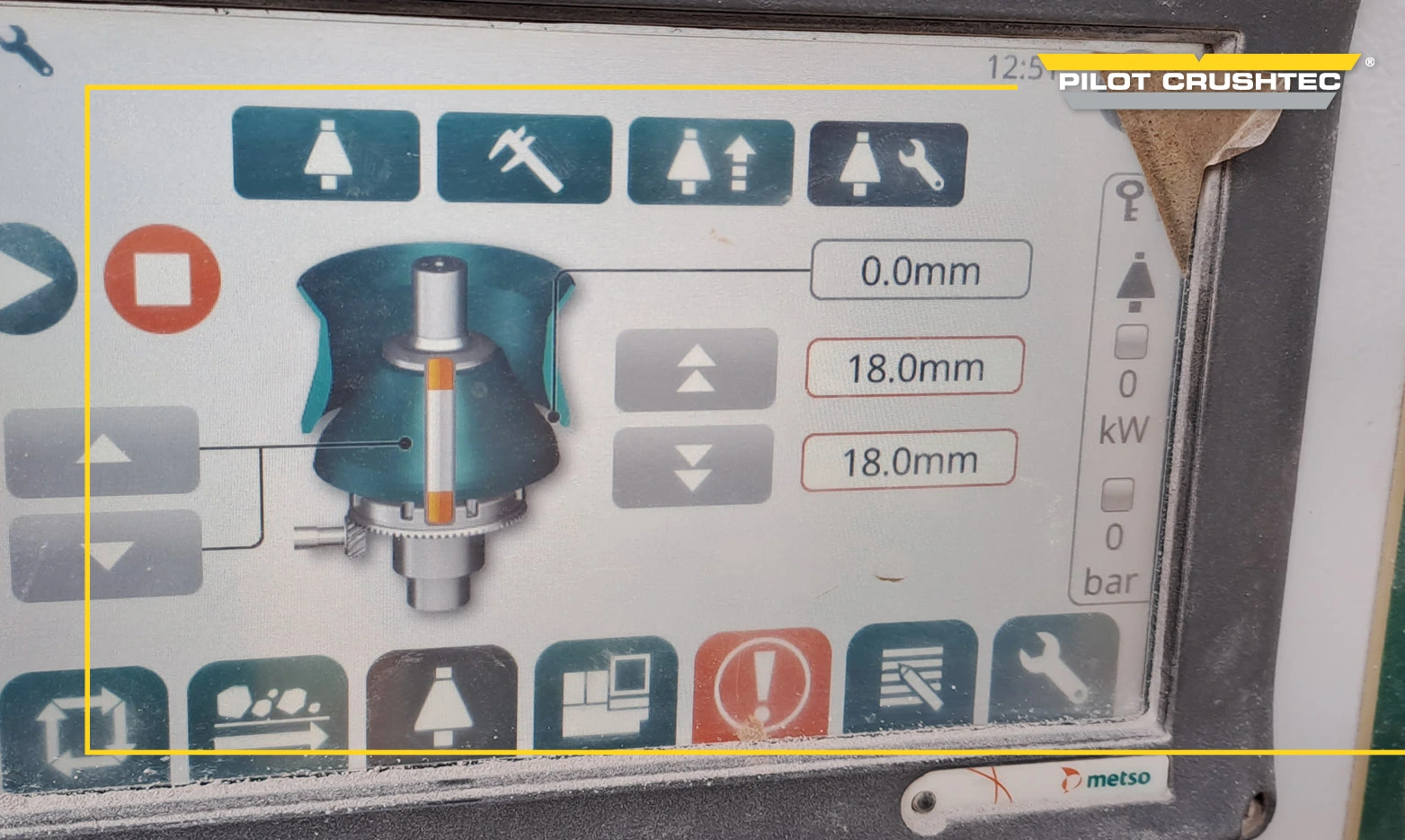

GP100S Cone Crusher screen
GP100S Cone Crusher
GP100S Cone Crusher

Product Information

CONE CRUSHER: METSO GP100s
head Configuration Standard
Frame Composite case and fabricated body. Heat treated cast steel
Head Diameter 795mm (32″)
Bearings Precision machined bronze bushing
Adjustment Dynamic setting adjustment
Linear Range Interchangeable medium and coarse liner configuration
Lubrication The multi-function lubrication system automatically lubricates the
components participating in generation of eccentric movement, adjusts
the crusher setting based on automation and user command and reduces
the heat generated by the crushing work.
Operating controls IC50C is a complete crusher automation system for controlling the GP
Series cone crusher and lubrication unit in all stationary applications.
Incorporates safety interlocks, alarm controls as well as power
management of the crusher.
Tramp Relief Automatic, Dynamic setting adjustment via proprietary IC50C system
Maximum Feed Opening 250 mm (Coarse liner), 200 mm (medium liner),
Recommended maximum reduction ratio 4:1
Close side setting (CSS) 24 mm-44 mm (Stroke dependent on configuration)
Stroke options 16 mm, 20 mm, 25 mm
Capacity 35mtph to 215mtph (Application dependant)
Operating Speed Application dependent
POWER 90Kw, 380V or 525V electric motor
SKID FRAME
FRame Heavy-duty support structure
Accessories Access ladder, handrails & safety guards, crusher discharge chute, full access maintenance platform
ESTIMATED WEIGHT
TOTAL 7 700kg
