Product Features

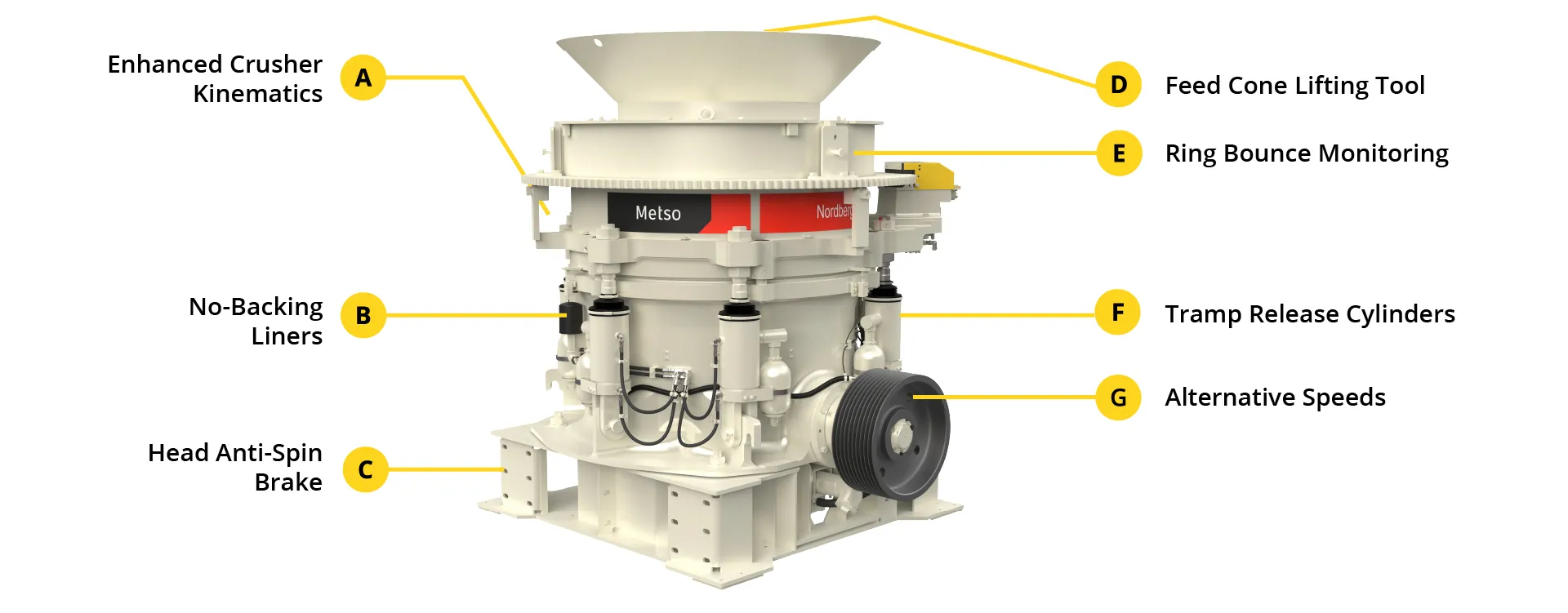

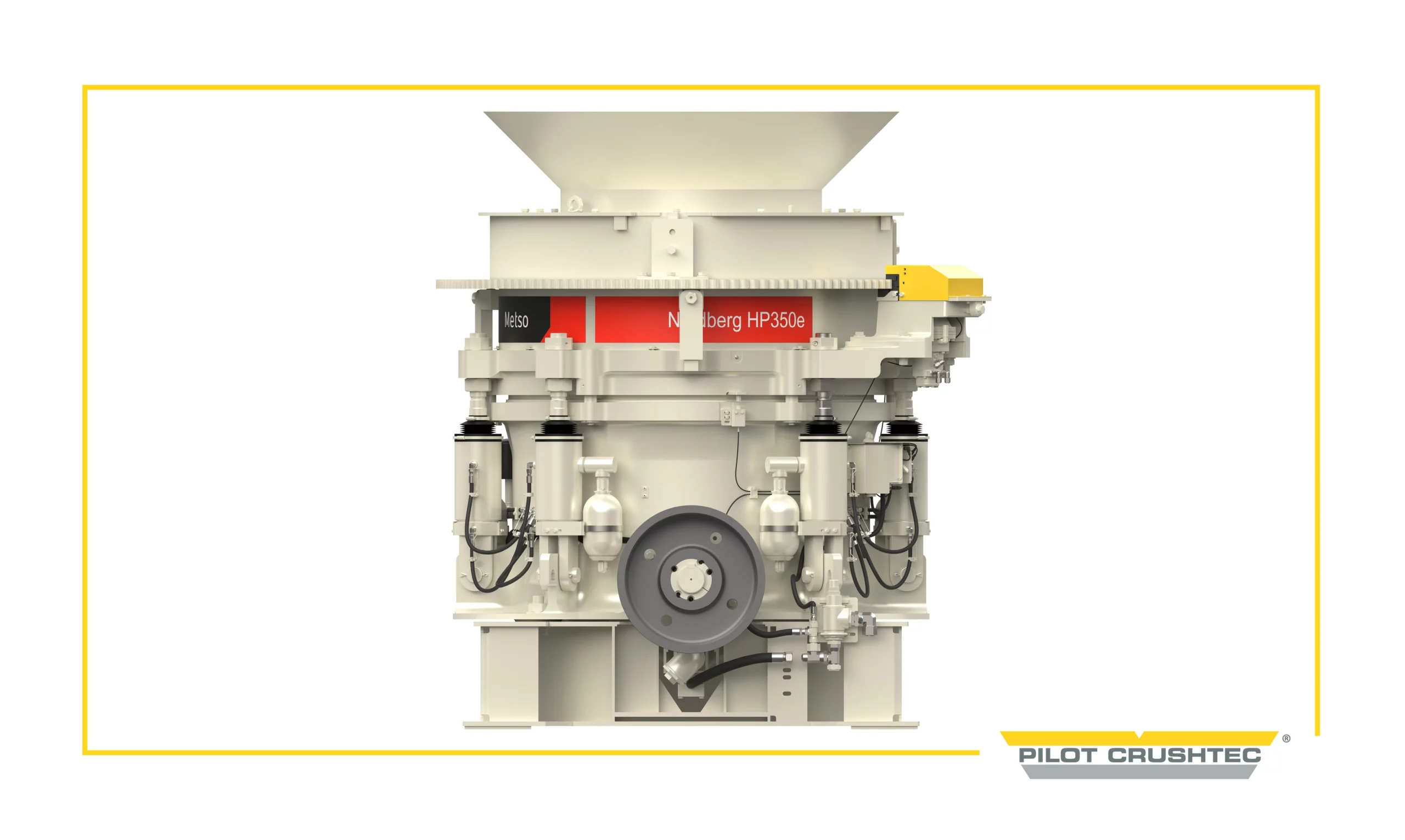

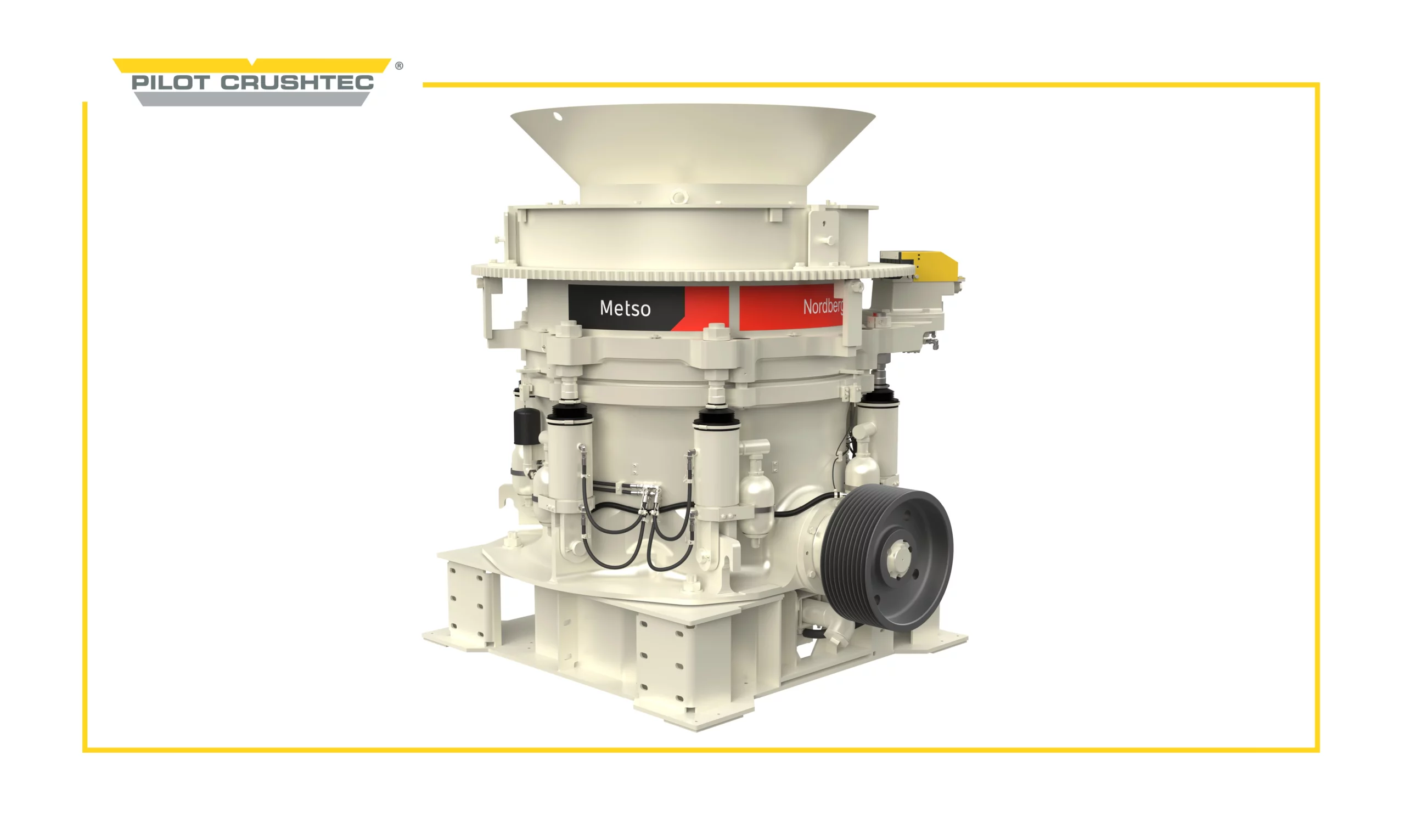

The HP350e is available with three kinematic configurations. These include a standard eccentricity, a reduced eccentricity, and alternative countershaft speed options. The result is a superior product shape, high reduction ratio, and up to 10% increased capacity compared to the HP300. The crusher offers 10 application-specific, no-backing chamber designs for secondary, tertiary, and quaternary stages, ensuring versatility.
The HP350e features manganese liners that require no backing, streamlining and accelerating the replacement process. This design removes the need for backing compounds, enhancing safety and reducing environmental impact during maintenance.
The built-in head anti-spin brake slows the head’s rotation when idle, minimising wear on the mantle and bowl liner. This enhances component durability, extends liner life, and lowers maintenance costs.
New to this series – A dedicated feed cone lifting tool is available for the HP350e. The tool is designed to support safe handling of the feed cone during maintenance and service work.
The HP350e cone crusher integrates an intelligent controller (IC50C) with ring bounce monitoring to deliver enhanced performance, safety, and sustainability. The controller enables real-time monitoring, automatic adjustments, and data analytics, while ring bounce monitoring protects the crusher from overload damage.
The tramp release cylinder mounting has been revised to allow tramp material to pass through the crusher more easily. The updated design provides an increased clearing stroke while maintaining stable crusher operation.
The HP350e cone crusher offers flexible countershaft speeds and three kinematic settings – high, standard, and reduced speed – enabling optimised throughput, product size, and energy use across secondary to quaternary crushing. With up to 250 kW power and 485 tonnes per hour capacity, it adapts to diverse applications efficiently.
