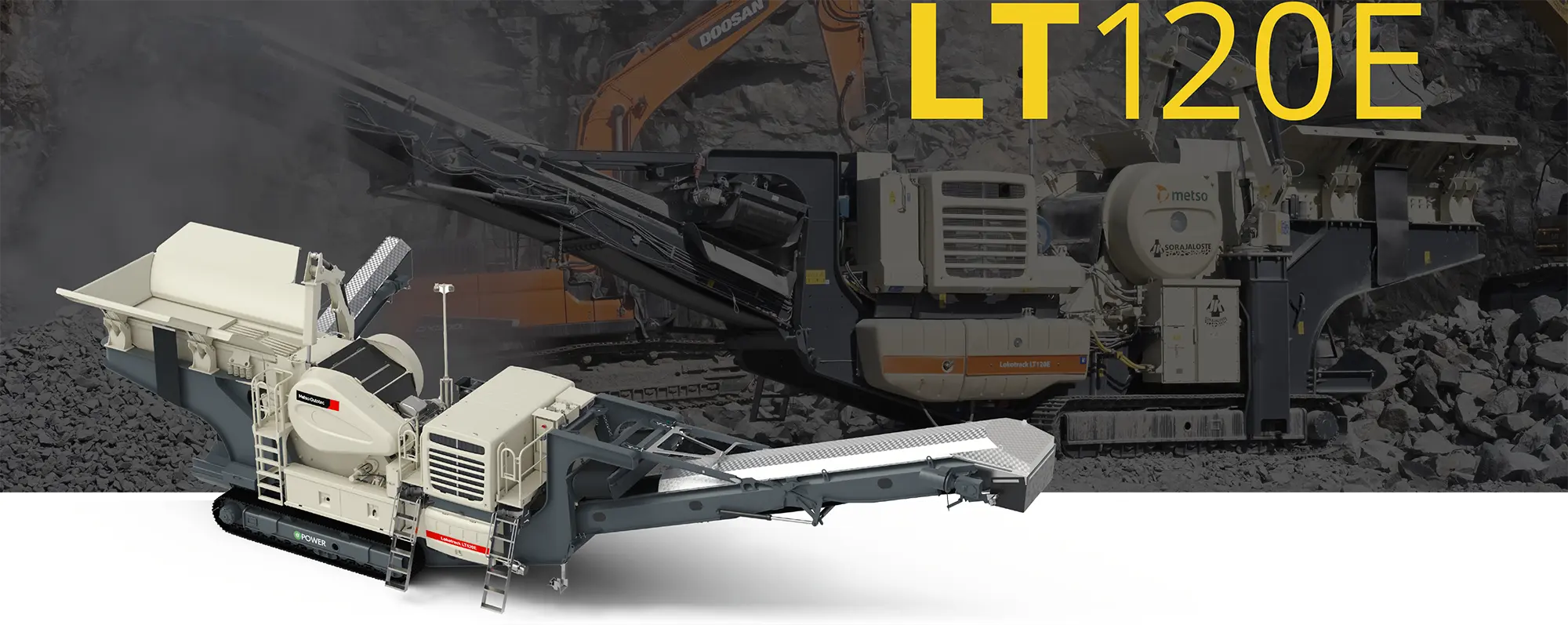

LT120EMobile Jaw Crusher

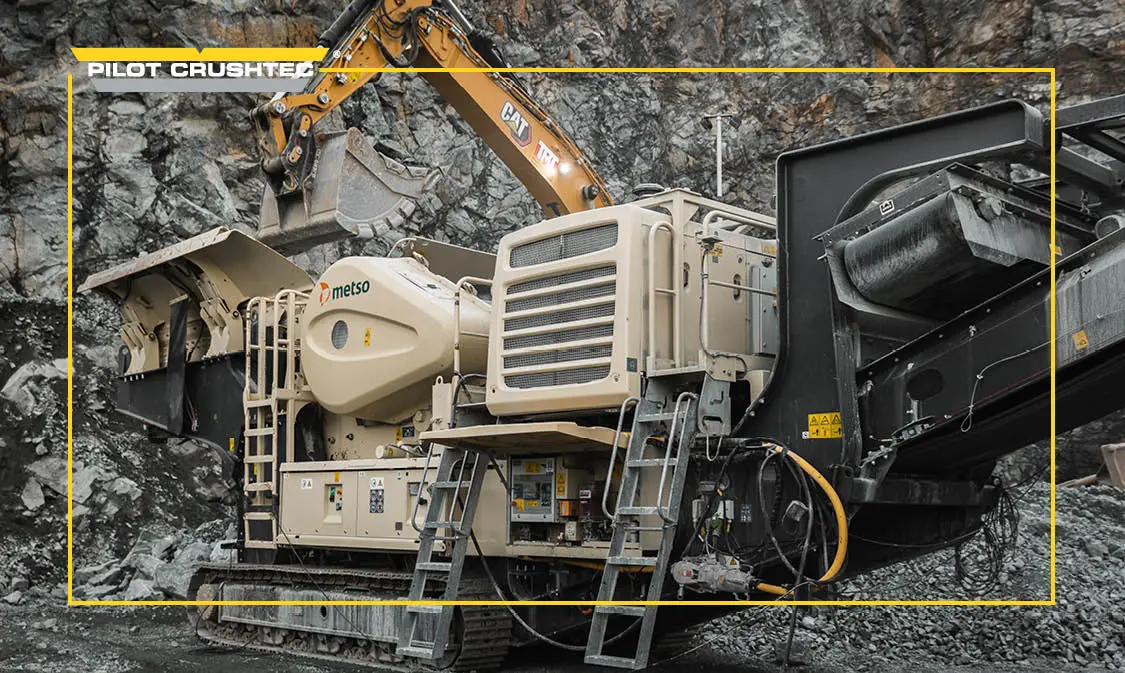

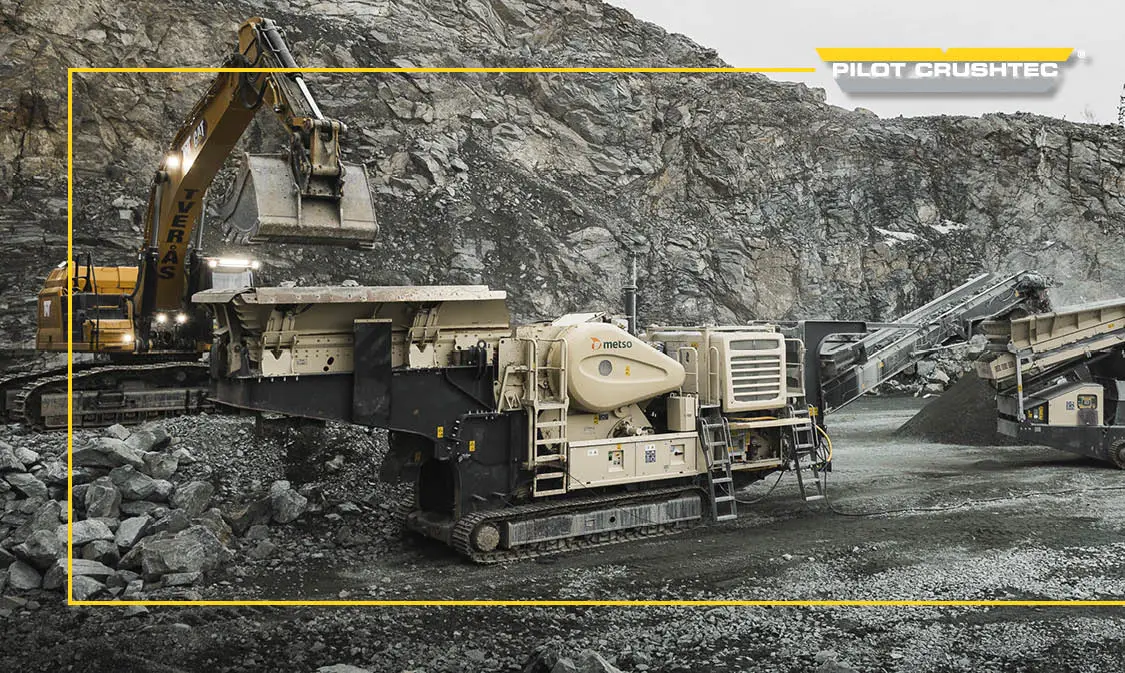

The Metso Lokotrack® LT120E™ is mobile, electric driven primary jaw crusher for aggregates production. In this e-Power mobile crushing plant the power is supplied either by an external network or by the 310/420 kVA on-board diesel generator.
Plug it to the grid for quiet, emission-free and economical scalping in the cities, and enjoy the flexibility of modern low-emission and low noise diesel engine out in the wild.

The Metso Lokotrack® LT120E™ is built around Nordberg® C120™ jaw crushing unit, which is designed for crushing hard rock types such as granite, basalt and gneiss. The crusher’s large feed opening provides outstanding capacity due to an excellent nip angle and aggressive linear stroke

Product Downloads

Download Brochure Speak to an Expert DOWNLOAD SPEC SHEET WATCH OUR VIDEO

Product Features

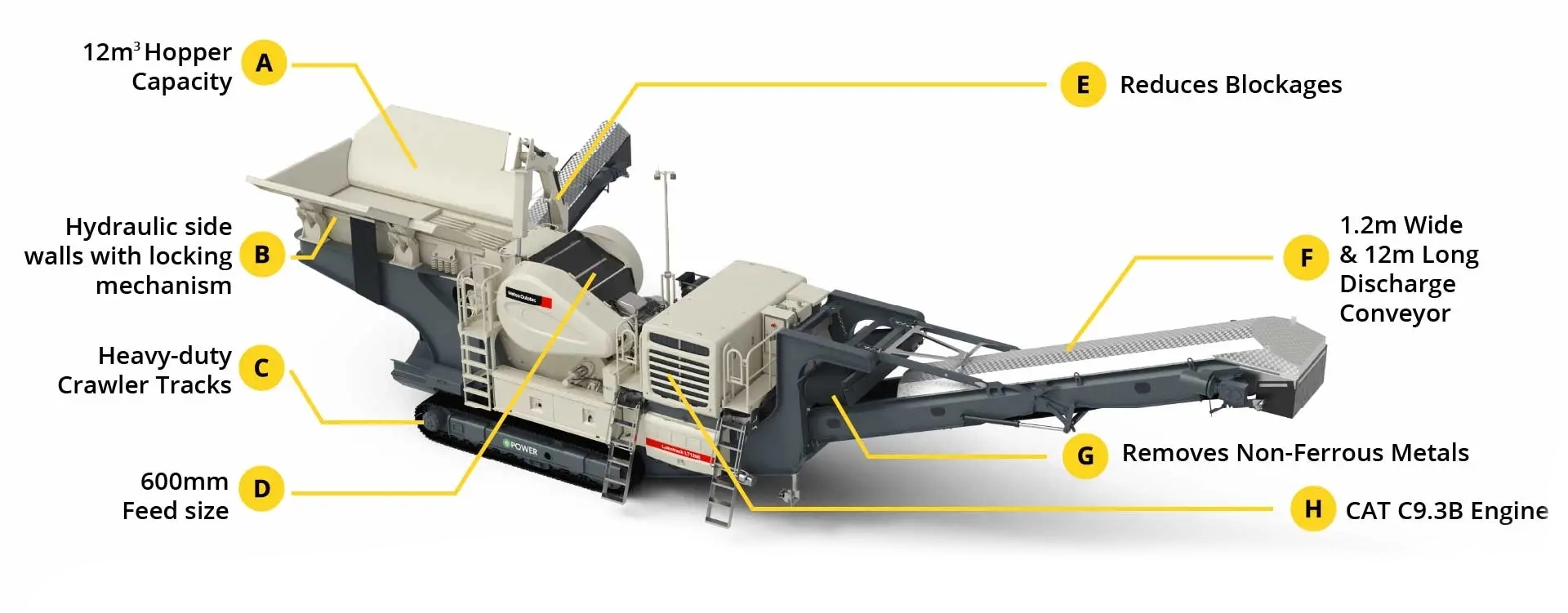

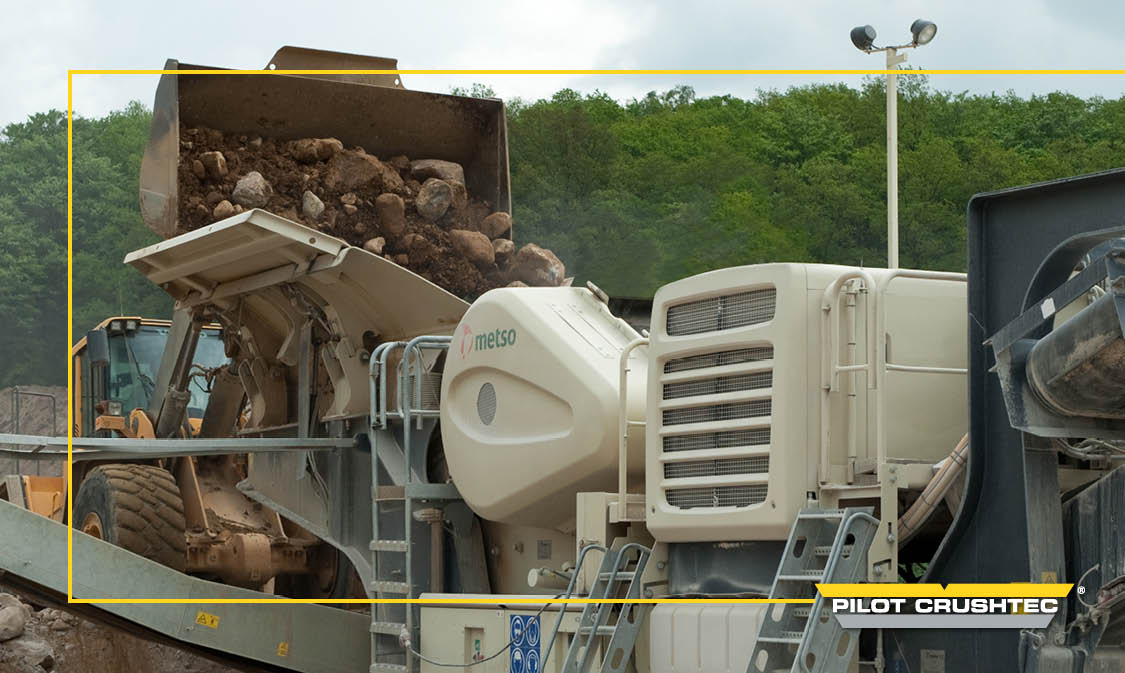

Large extended hopper enables the loading with either an excavator or wheel loader. Large surge capacity allows for smoother operation and a properly fed machine.

Hydraulic side walls with locking mechanism allows for easy set up, high quality safety and lined with wear resistant steel liners.

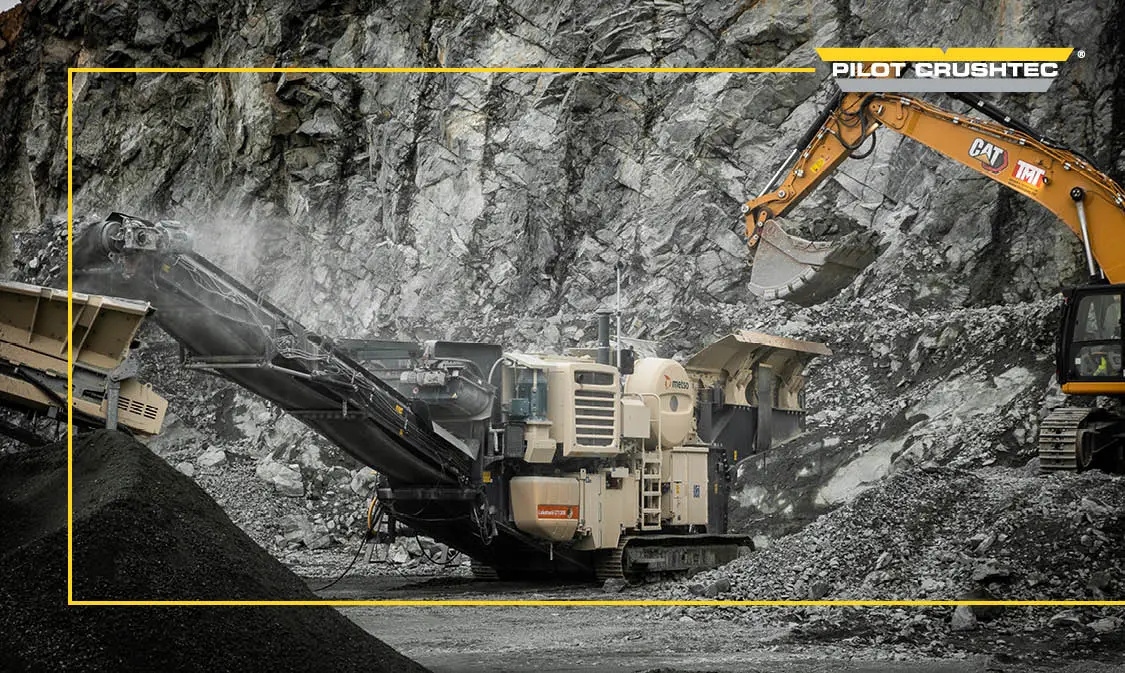

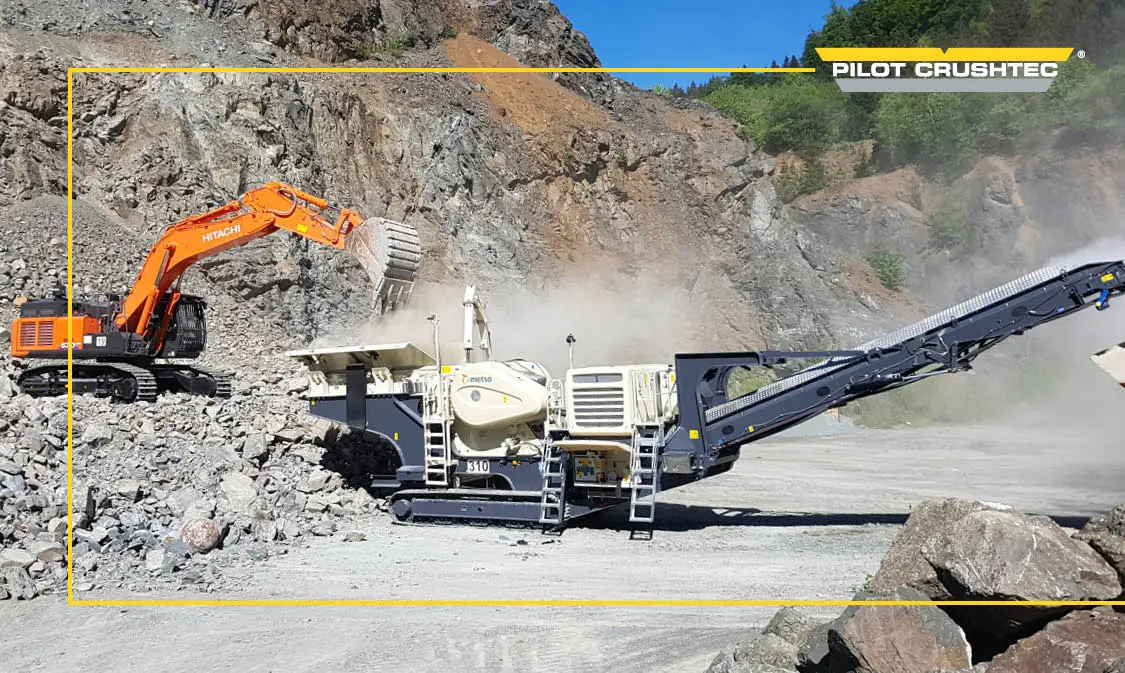

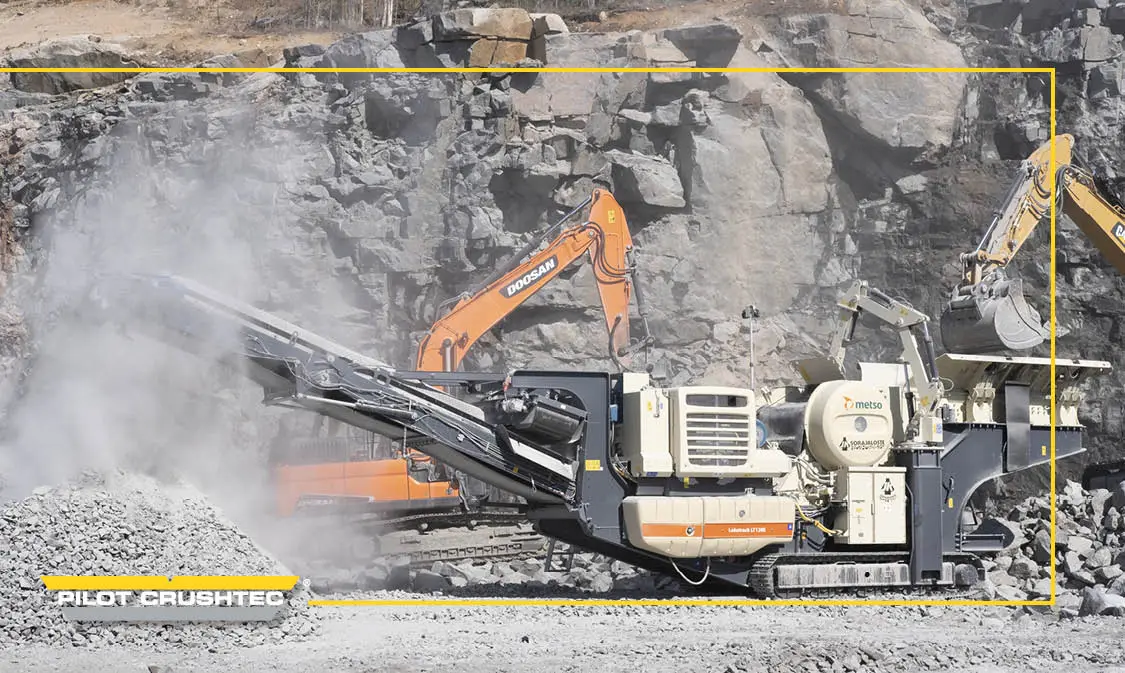

The Lokotrack® LT120E mobile jaw crusher is mounted on tracks, so it can be easily moved inside a quarry or construction site and transported between sites on a low bed truck.

The C120E Jaw crusher has an 1,200mm x 870mm feed opening to accept very large feed materials.

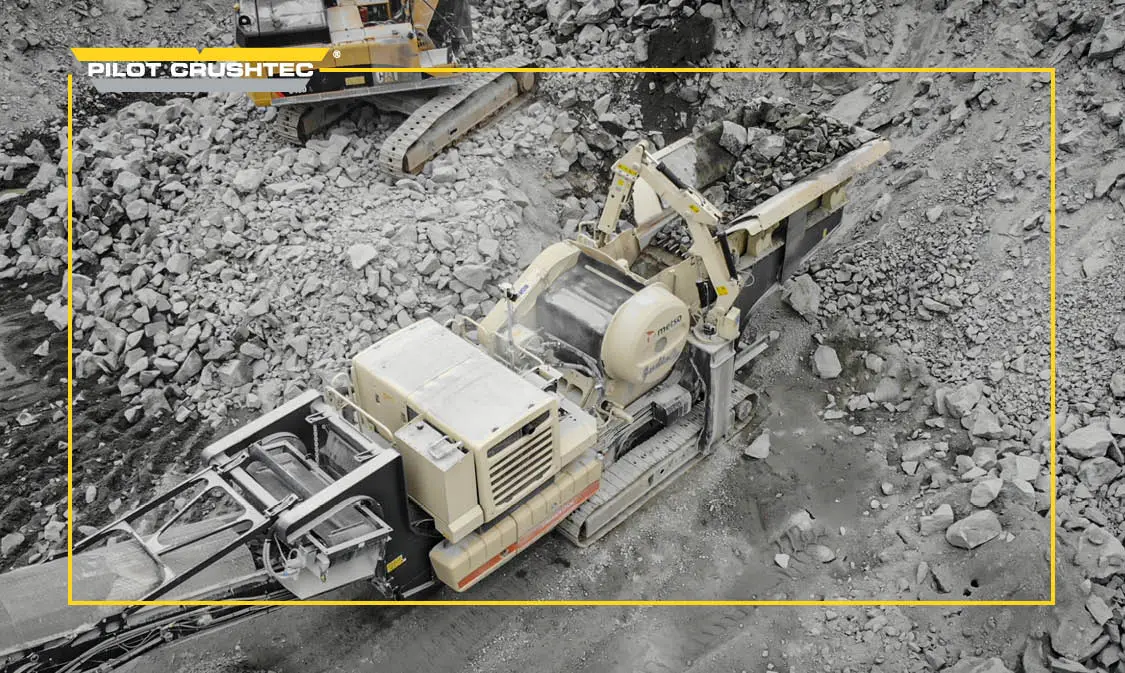

The hydraulic rock breaker is useful for improving the efficiency of operations where oversized rocks need to be broken down before further processing. This hydraulic rock breaker option includes a boom and hammer combination that is remotely controlled.

The extended discharge conveyor is used for larger stockpiles, reducing yellow metal cost or feeding other mobile crushers easily.

Heavy-duty magnetic separator for removing the iron waste from crushed material which ensures machines down the line are protected from uncrushable material

Fuel consumption is minimised by using flywheels of high inertia and optimal rpm (1600 rpm). High flywheel inertia means fewer power peaks and lower fuel consumption.

Extended Benefits

01Hard Rock Crushing

Equipped with a Metso C120E Jaw Crusher. The Nordberg® C120E™ jaw crusher is designed for hard rock applications. This jaw is a compact primary crusher engineered to perform for a long time. It is designed to be reliable and simple to operate.

025 Year / 10,000 Hour Warranty

No other warranty in the industry is as comprehensive as the Metso EPS Warranty. Extending the standard warranty from 1 year/2,000 to 2 years/4,000 hours and major components covered from year 1 to year 5.

03Super Stockpiles

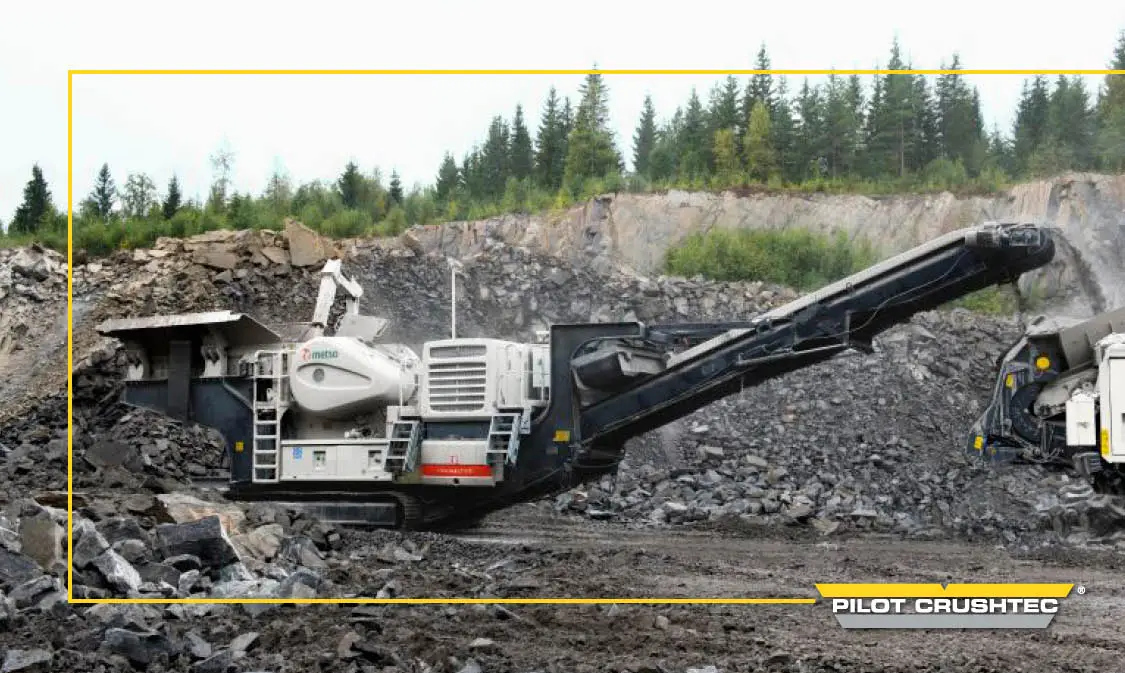

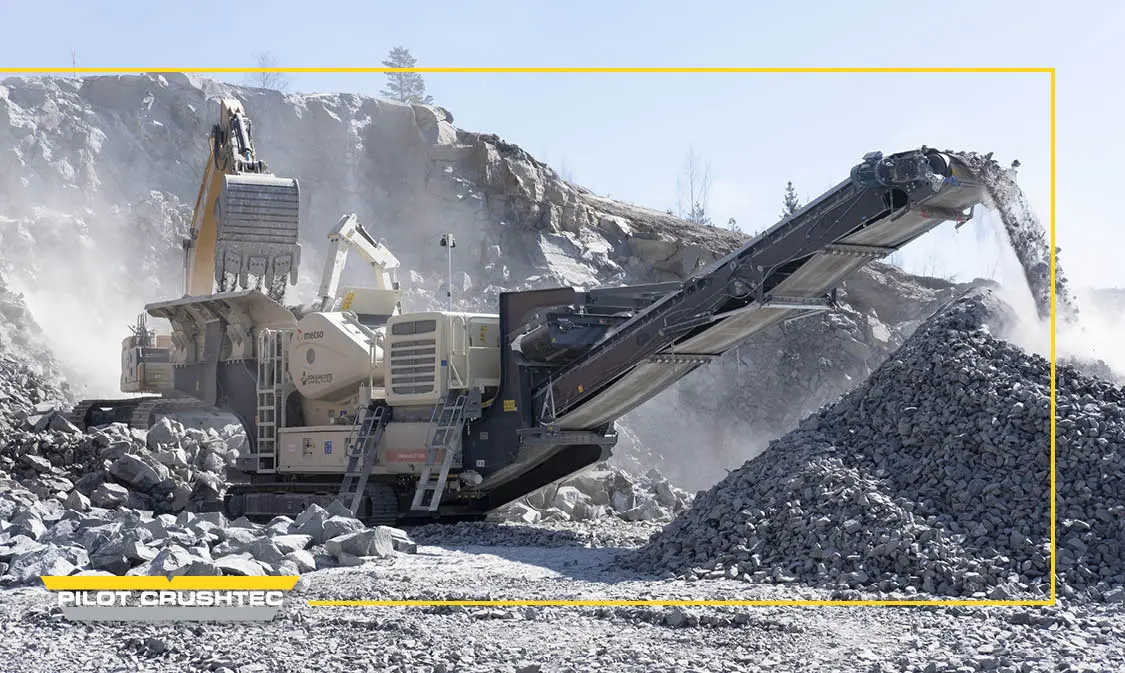

With an extended discharge conveyor, the LT120E extended discharge conveyor creates a stockpile height which is 28% greater than the standard conveyor height.

04Backup Support

With a large inventory of critical spare and wear parts available at our Jet Park premises, Pilot Crushtec has technical and spares support for the LT120E to ensure that you limit downtime, should a breakdown occur.

05Exceptional Jaw Crusher Performance

The C120E has the largest stroke in its class, excellent reduction rate, and kinematics that provides excellent capacity during crushing. The large variance of setting CSS enables flexibility for producing different end products.

06Super Safety comes Standard

Proper stairs with handrails, walkways and maintenance platforms. Several emergency buttons and pull wires fitted to the machine standard. The IC Controller unit provides delayed safety protocol start-up sequences.

Product Information

Feeding CONVEYOR
Feeder	The feeder is equipped with 2 grizzly sections at the discharge end and with hydraulic drive. The feeder control panel is mounted on the feeder service platform.
Feed Hopper	Extended 12 m3 Enables the loading of the Lokotrack LT120E either with an excavator or wheel loader and is made of wear resistant steel
CRUSHER
Crusher	Jaw crusher C120. Single toggle primary jaw crusher with non-welded construction. One of the most important Nordberg C120 features is an aggressive long stroke with effective direction which ensures an outstanding performance in any application.
Setting Adjustment	Hydraulic setting adjustment
Weight	65 000 kg
POWER UNIT
Diesel Engine	Cat Cat C9.3B or Volvo TAD1183VE power transmission Optimized hydraulic circuit for fuel efficiency Optimized hydraulic tank design for low hydraulic oil volume and efficient filtration
Emission Class	Tier 3
MAIN CONVEYORS
Magnetic Separator	Heavy-duty magnetic separator for removing the iron waste from crushed material.
ADDITIONAL EXTRAS

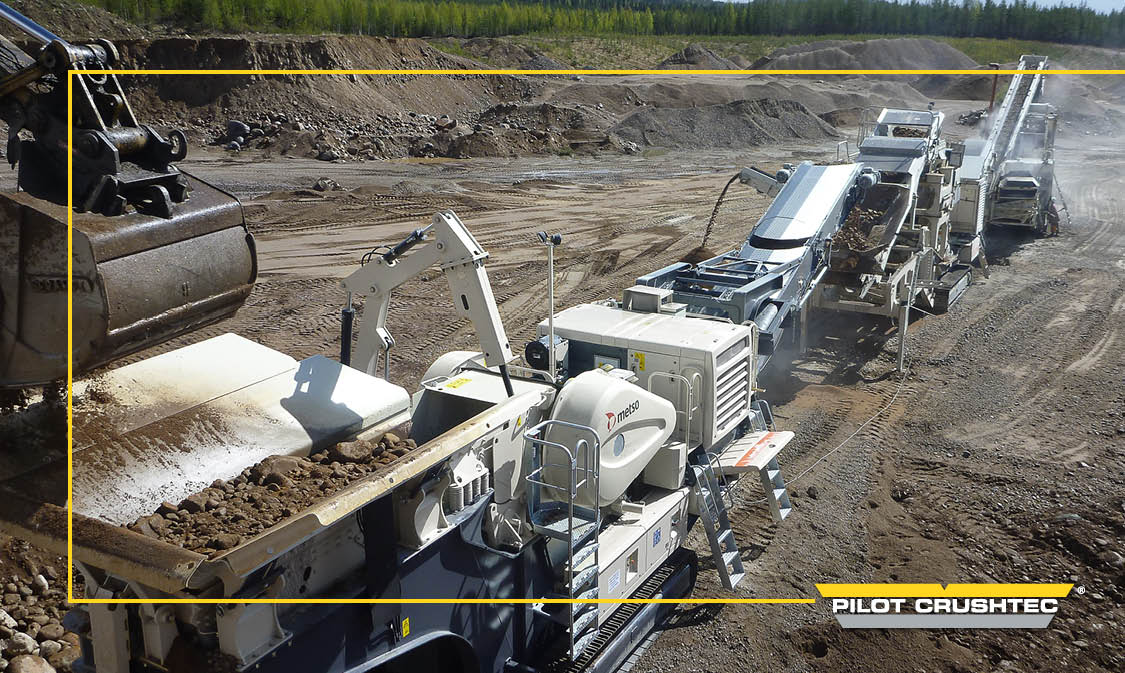

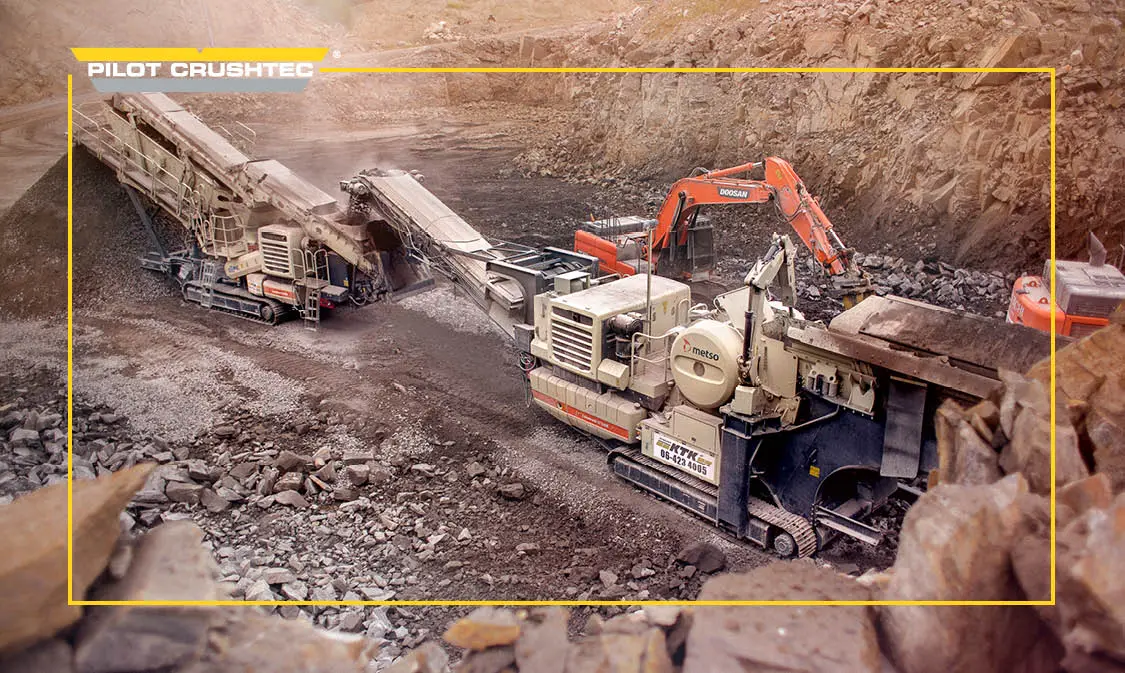

Interlocking	With Lokotrack interlocking solution operators crushing and screening process can be adjusted as Lokotrack automation systems are connected. Primary unit feeder automatically slows down, pauses or stops if secondary units crushing or screening process is either paused or stopped.
Hydraulic Breaker	Boom & hammer Hydraulic boom and hammer with remote radio control. For breaking oversize boulders at the crusher cavity. Hammer control is with remote radio control.
Water Spraying System	High pressure water spraying system with pump. For binding dust particles at the crusher cavity, under the crusher, at the discharge end of main conveyor. This system includes high pressure water pump.
