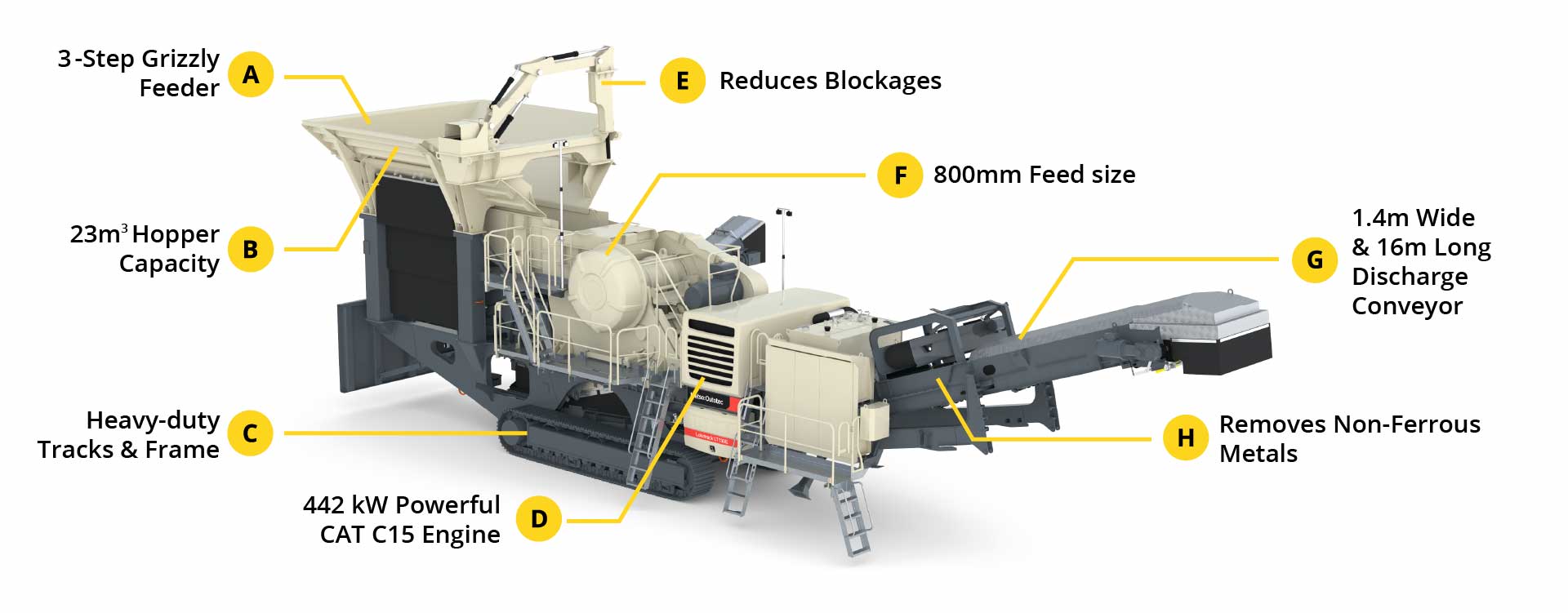

Product Features
Feeder is capable of handling high volumes with a horizontal feeder with a 3-steps grizzly for bypassing fines before crushing.
Enormous hopper capacity which can handle 8.1 tons of material in the 23m3 hopper.
Weighing 105 tons, this unit comes equipped with heavy-duty tracks that can manoeuvre the machine around site.
The powerful diesel engine is connected directly to a 500kva generator to power electric motors.
The standard hydraulic hammer, mounted on a boom is used to safely break oversized feed material which may block the jaw cavity.
The C130 Jaw crusher has an 1,300mm x 1,000mm feed opening to accept very large feed materials.
The wide 1.4M discharge belt has a total length of 16M for creating large stockpiles of crushed materials or for feeding additional crushers for further processing of materials.
The overband magnet fitted to the discharge belt removes iron from the crushed materials to protect downstream processing equipment.
