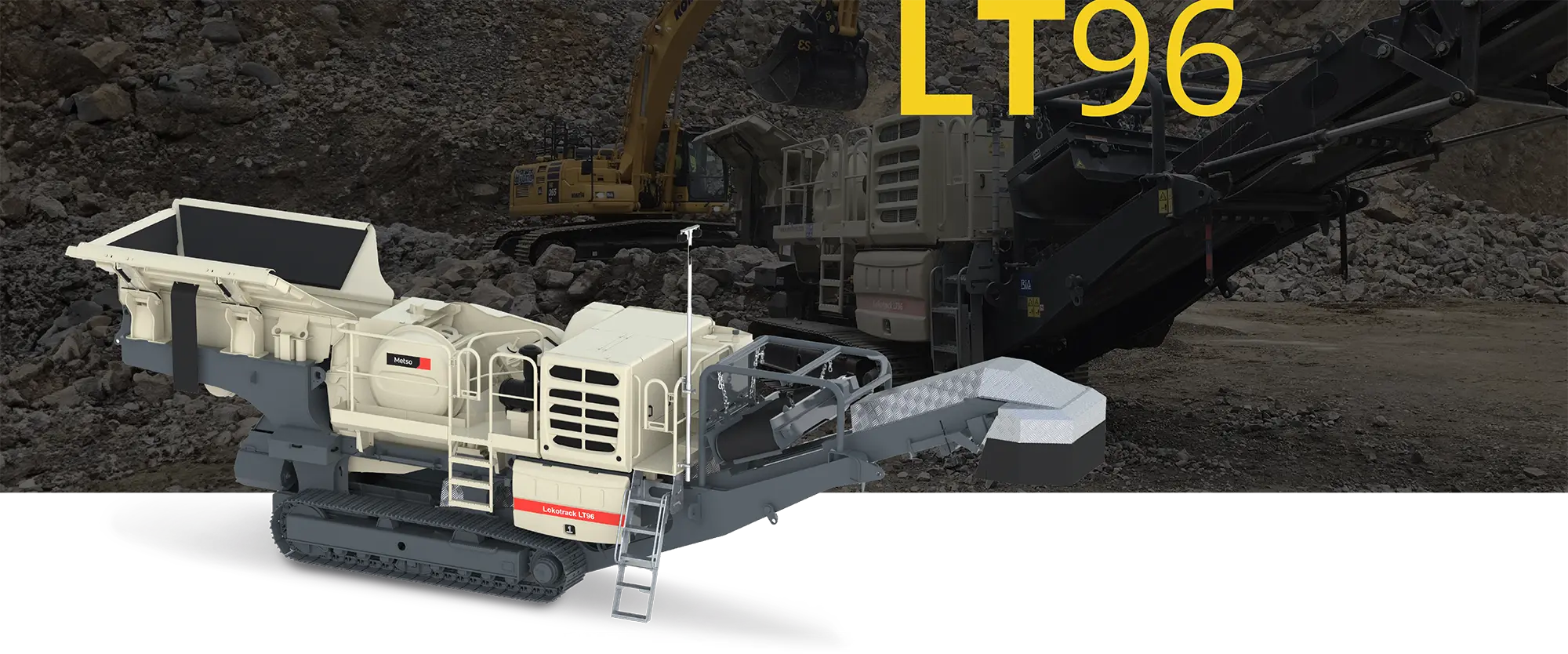

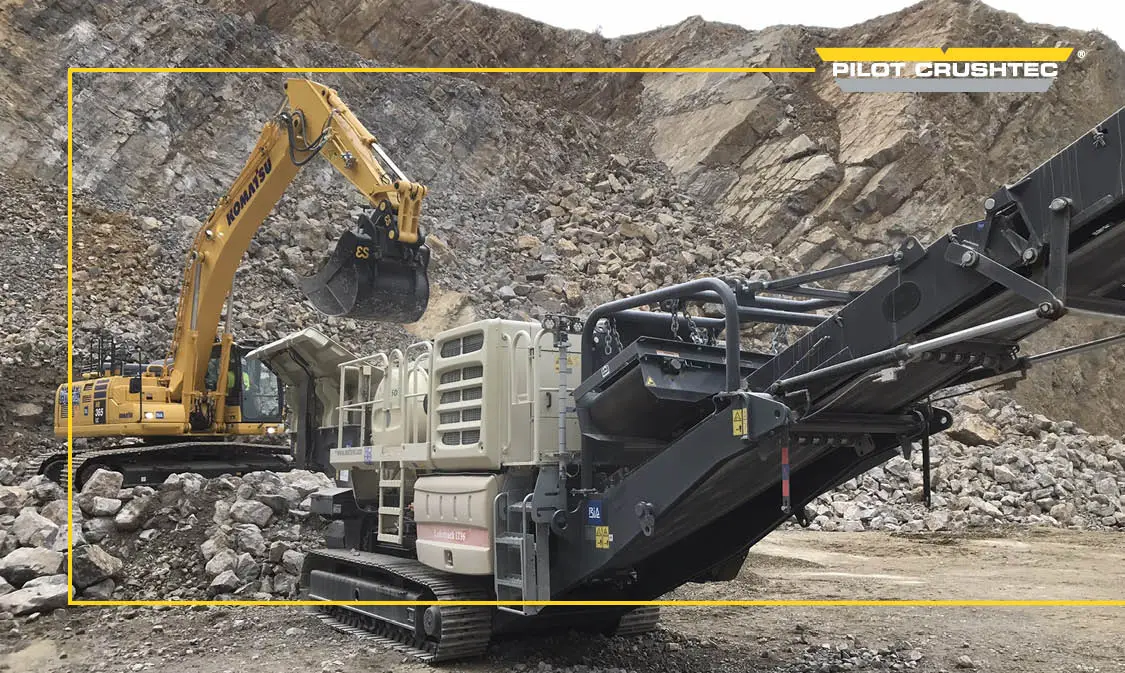

LT96Mobile Jaw Crusher

The Metso Lokotrack® LT96™ mobile jaw crusher, or mobile jaw crushing plant as it is also called, is often used as a primary crusher in a multistage crushing process or as a stand-alone unit. LT96 can operate as a primary crusher designed for crushing hard rock types.

Ideal for small scale on-site crushing in tight spaces, such as crushing demolition waste and aggregates production on construction sites. Perfect choice for small and medium size contractors, entrepreneurs, and rental.

Product Downloads

Download Brochure Speak to an Expert DOWNLOAD SPEC SHEET

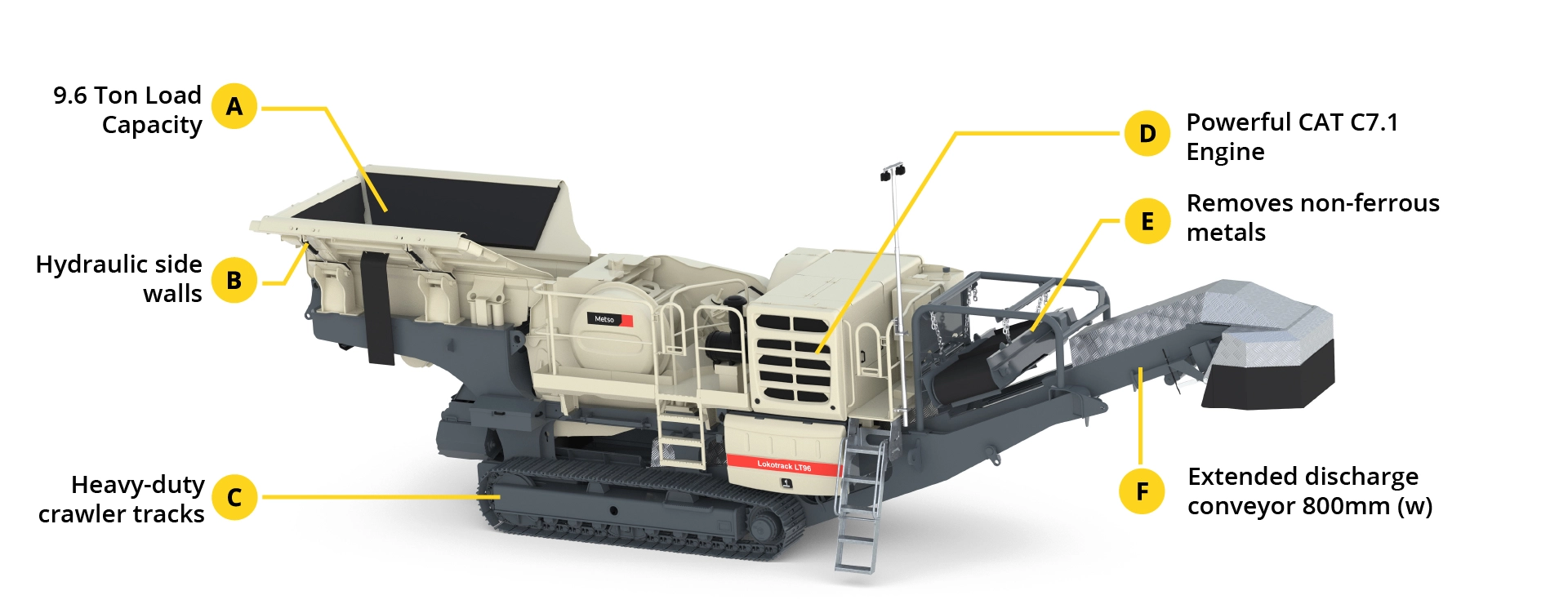

Product Features

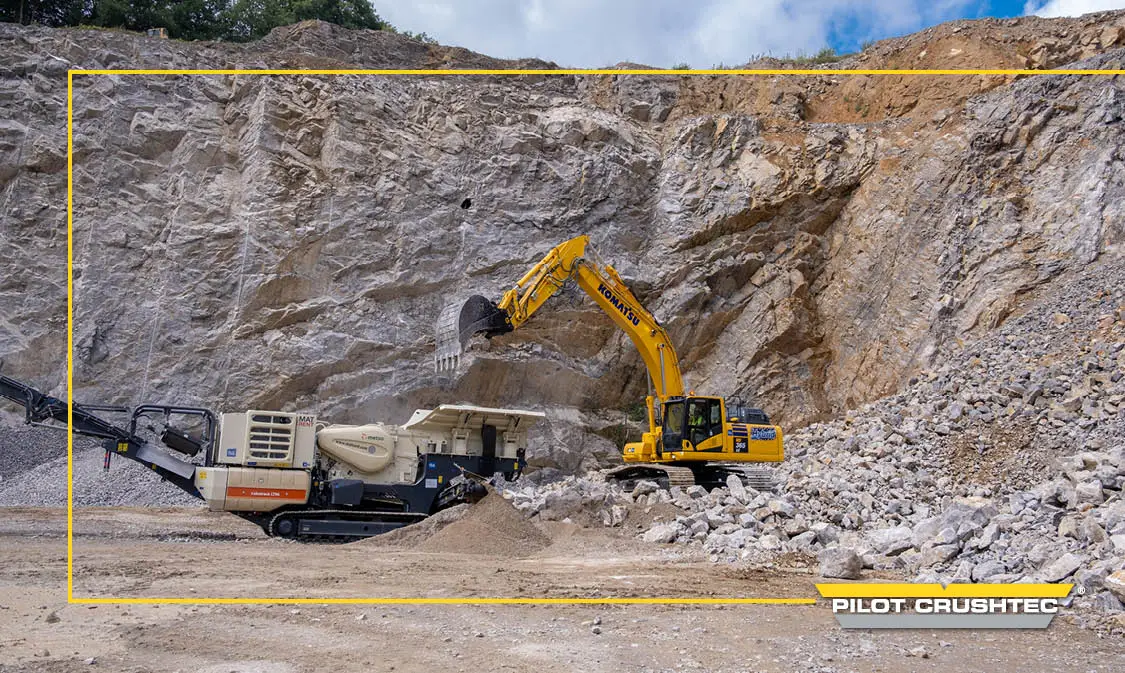

Large extended hopper enables the loading with either an excavator or wheel loader. Large surge capacity allows for smoother operation and a properly fed machine.

Hydraulic side walls with locking mechanism allows for easy set up, high quality safety and lined with wear resistant steel liners.

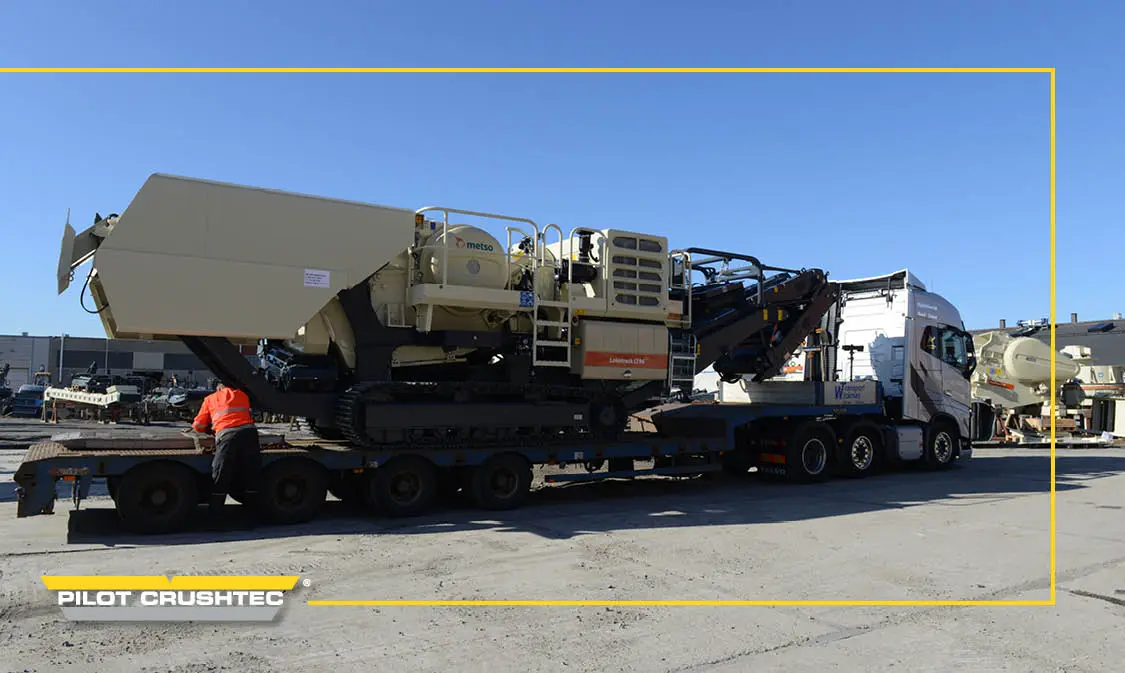

The Lokotrack® LT96 mobile jaw crusher is mounted on tracks, so it can be easily moved inside a quarry or construction site and transported between sites on a low bed truck.

Heavy-duty magnetic separator for removing the iron waste from crushed material which ensures machines down the line are protected from uncrushable material.

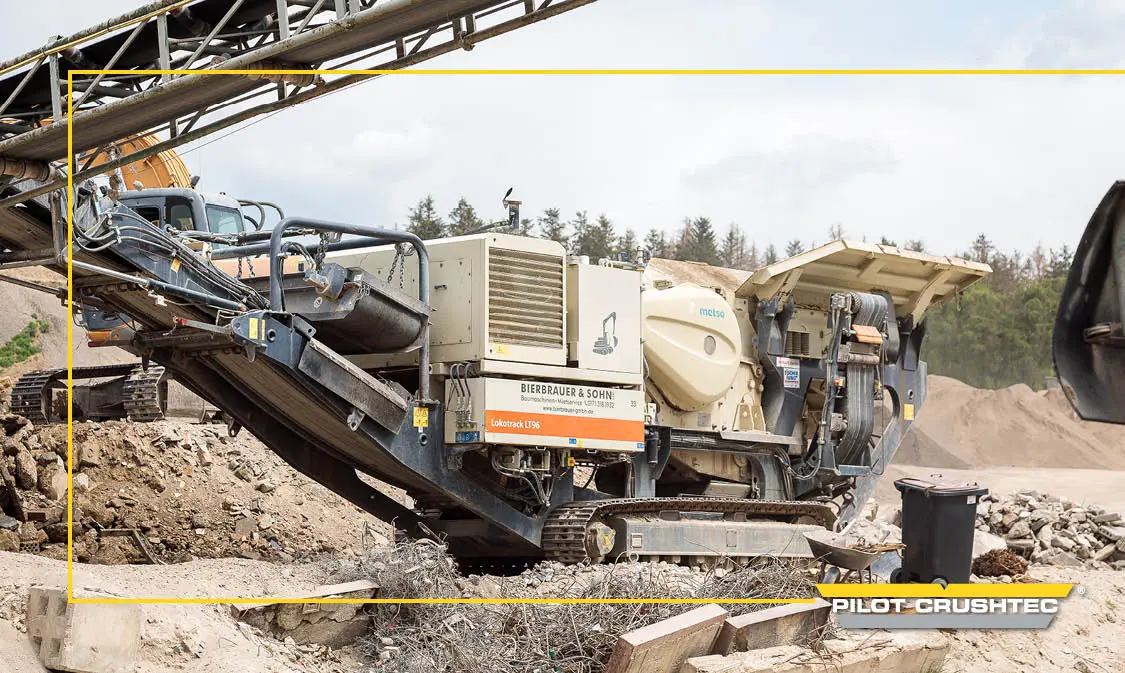

The extended discharge conveyor is used for larger stockpiles, reducing yellow metal cost or feeding other mobile crushers easily.

Hydraulic crusher drive with high inertia flywheels with optimised hydraulics efficiency and reduced hydraulic oil volume.

Extended Benefits

01Hard Rock Crushing

Equipped with a Metso C96 Jaw Crusher. The Nordberg® C96™ jaw crusher is designed for hard rock applications. This jaw is a compact primary crusher engineered to perform for a long time. It is designed to be reliable and simple to operate.

025 Year / 10,000 Hour Warranty

No other warranty in the industry is as comprehensive as the Metso EPS Warranty. Extending the standard warranty from 1 year/2,000 to 2 years/4,000 hours and major components covered from year 1 to year 5.

03Transportation

Compact transport dimensions enables even permanent transport permits. LT96 is Metso’s most compact mobile jaw crusher, and ideal for crushing and transporting in tight spaces.

04Backup Support

With a large inventory of critical spare and wear parts available at our Jet Park premises, Pilot Crushtec has technical and spares support for the LT96 to ensure that you limit downtime, should a breakdown occur.

05Exceptional Jaw Crusher Performance

Proven Nordberg C96 jaw crusher for multiple applications. Single toggle primary jaw crusher with non-welded construction. The crusher is mounted without a bolted connection. The sturdy bolted and pinned design increases the durability of the crusher against shock loads and enables LT96 to perform for a long period of time. Crusher’s excellent nip angle, stroke and kinematics gives LT96 outstanding performance.

06Super Safety comes Standard

Proper stairs with handrails, walkways and maintenance platforms. Several emergency buttons and pull wires fitted to the machine standard. The IC Controller unit provides delayed safety protocol start-up sequences.

Product Information

Feeding CONVEYOR
Feeder	Heavy-duty vibrating feeder having efficient material separation with proportionally controlled speed by IC control system. Strong solid shaft line with counterbalance weights causing the elliptical eccentric motion.
Feed Hopper	Extended 6 m³ Feed hopper has strong, curved hopper sidewalls made of wear resistant steel.
CRUSHER
Crusher	Jaw crusher C96
Feed Opening	930 x 600 mm
Recommended Feed Size	500mm
Setting Adjustment	Hydraulic setting adjustment 60-180mm
POWER UNIT
Diesel Engine	Cat C7.1 Tier 3 (151 kW)
MAIN CONVEYORS
Main Conveyor	Type H8-9 main conveyor as a standard with hydraulic driven belt conveyor. Option for type H8-12 main conveyor that enables larger stockpile capacity and Lokotrack combinations.
Magnetic Separator	Permanent magnet to remove the iron waste from the crushed material (Optional)
Metso Metrics System	Included Remote monitoring and reporting system for Lokotrack. Consists of modem and antenna installation. Access to the monitoring and maintenance scheduling system and reporting services can be ordered with a separate service contract.
IC Control System	LT96 operation and crushing process is controlled using purposely designed Lokotrack IC700 control system. The crushing process includes fully automatic process control, single button process start / stop and advanced fault diagnostics.
