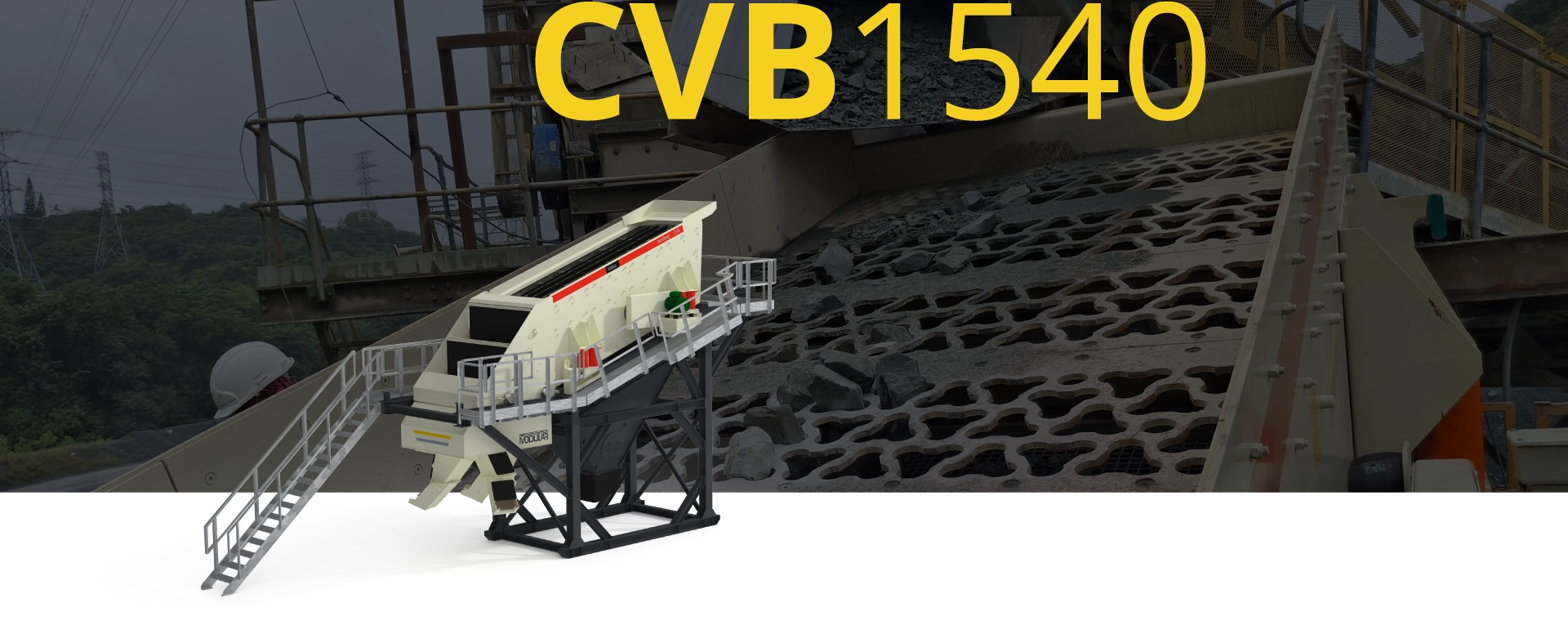

CVB1540 Triple Deck Vibrating Screen

The Pilot Modular CVB1540 Triple Deck Screen is a semi-mobile, skid mounted three-deck screening plant designed to operate as a secondary and tertiary screens using diverse screening media. The screening plant is supplied complete, mounted on a skid frame and includes an electrical drive pack, sand box and discharge chutes.

Mounted on a heavy-duty skid frame, the Metso screen box from the CVB range of screens, is designed to handle the harshest conditions and toughest material in all type of applications.

This field-proven unit ensures seamless integration with the full Pilot Modular ecosystem -including conveyors, feeders, hoppers, and crushers – for scalable, turnkey operations that grow with your business.

pilot modular

Product Downloads

Product Features
icon

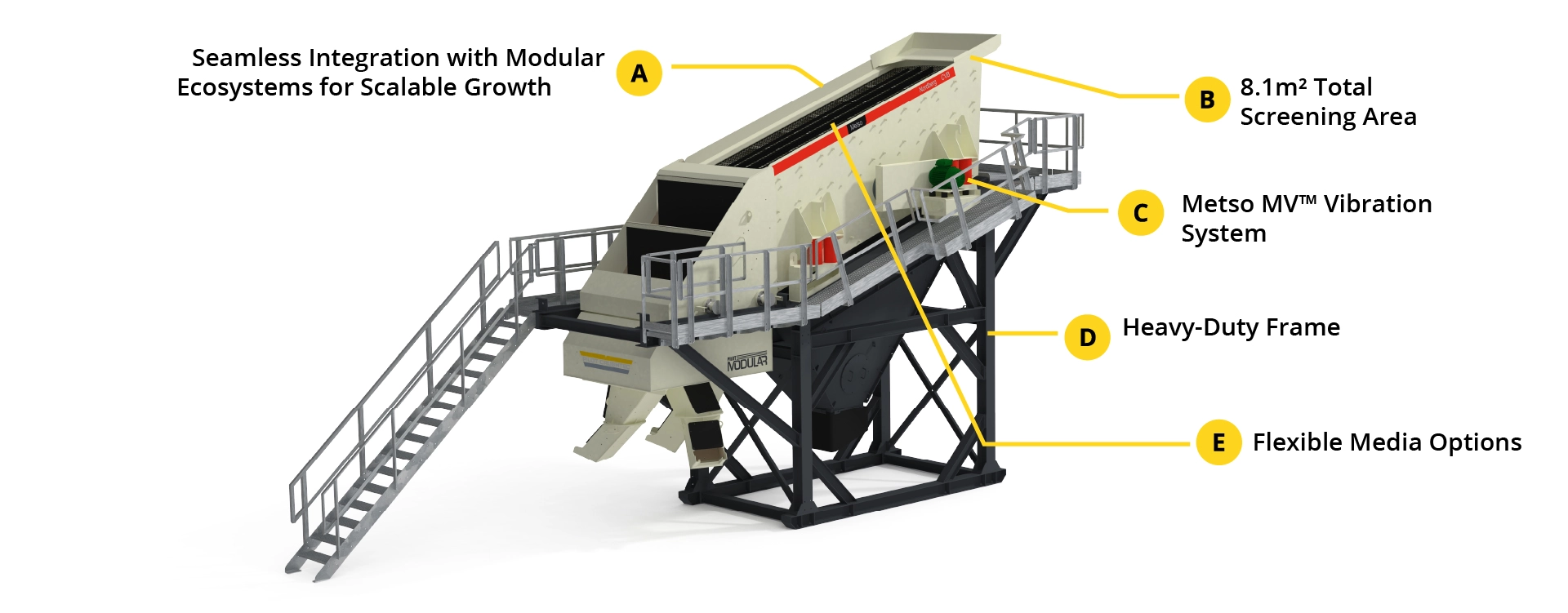

Seamless Integration with Modular Ecosystems for Scalable Growth

The Metso CVB1540 Screen Module is engineered to effortlessly connect with Pilot Crushtec’s full range of equipment, including conveyors, feeders, hoppers, crushers, and impactors, allowing customers to build customized, expandable processing plants without compatibility issues.

icon

8.1m2 Total Screening Area

The Metso inclined CVB1540 3M screen provides efficient, reliable, and compact performance for mid-range screening tasks. Equipped with a 1.5 m × 4.0 m screening surface it delivers balanced capacity and precision in a highly portable design.

icon

Metso MV™ Vibration System

Fitted with Metso’s proven MV2™ modular vibrators, flange-mounted to the side plates and linked by cardan shaft for smooth, low-energy circular motion and lasting dependability.

icon

Heavy-Duty Frame

Galvanised heavy-duty structure delivers outstanding rigidity and endurance in tough, high-impact environments.

icon

Flexible Media Options

Three decks accept a full range of screening media.

Extended Benefits

01Rapid Setup & Deployment

Engineered for fast installation and immediate operation. The compact design of the CVB1540 screen ensures seamless performance in both fixed plants and mobile fleets – ready to screen in minutes.

02Unmatched Uptime

Reliability Powered by Metso’s field-proven technology and high-grade components, the CVB1540 screen delivers consistent operation with minimal unplanned stops.

03Cost-Efficient Operation

Advanced vibration efficiency and low-maintenance architecture reduce power consumption, servicing needs, and total cost of ownership.

04Broad Application Flexibility

Adapts effortlessly to a wide range of materials – from fine sands and aggregates to recycling streams and industrial minerals.

05Superior Screening Accuracy

Optimised material stratification and precise cut points produce cleaner fractions – boosting product quality and downstream process efficiency.

065 Year/10,000-hour Warranty

No other warranty in the industry is as comprehensive as the Metso EPS Warranty. Extending the standard warranty from 1 year/2,000 to 2 years/4,000 hours and major components covered from year 1 to year 5.

07Seamless Plant Integration

Modular, plug-and-play construction fits effortlessly into new plants or retrofits into existing crushing circuits.

08Backup Support

With a large inventory of critical spare and wear parts available at our Jet Park premises, Pilot Crushtec has technical and spares support for the CVB1540 screen to ensure that you limit downtime, should a breakdown occur.

09 Safe & Service-Friendly

Design Intuitive access platforms, guarded moving parts, and quick-change components make maintenance safer and faster.

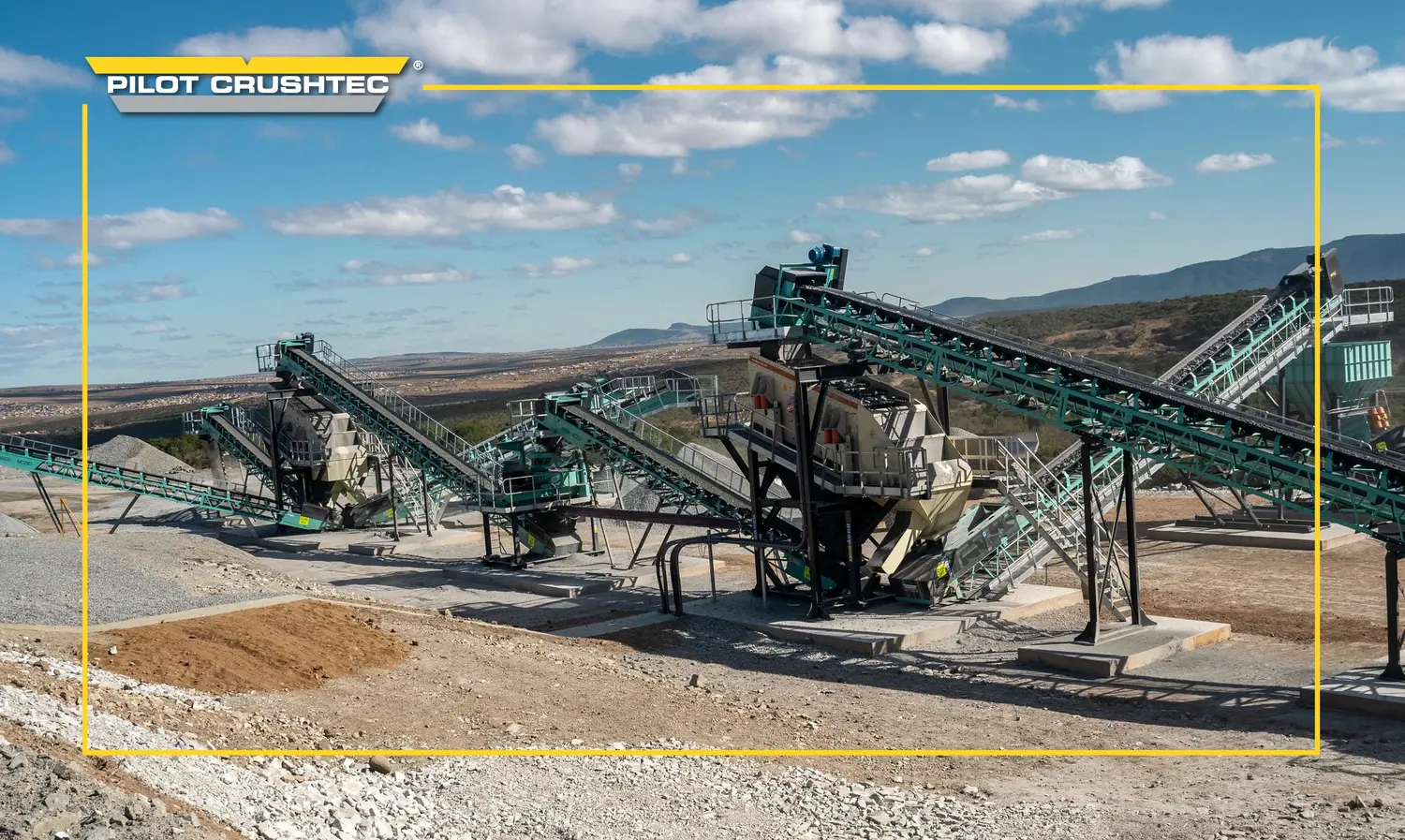

Modular vibrating screen and conveyors at plant

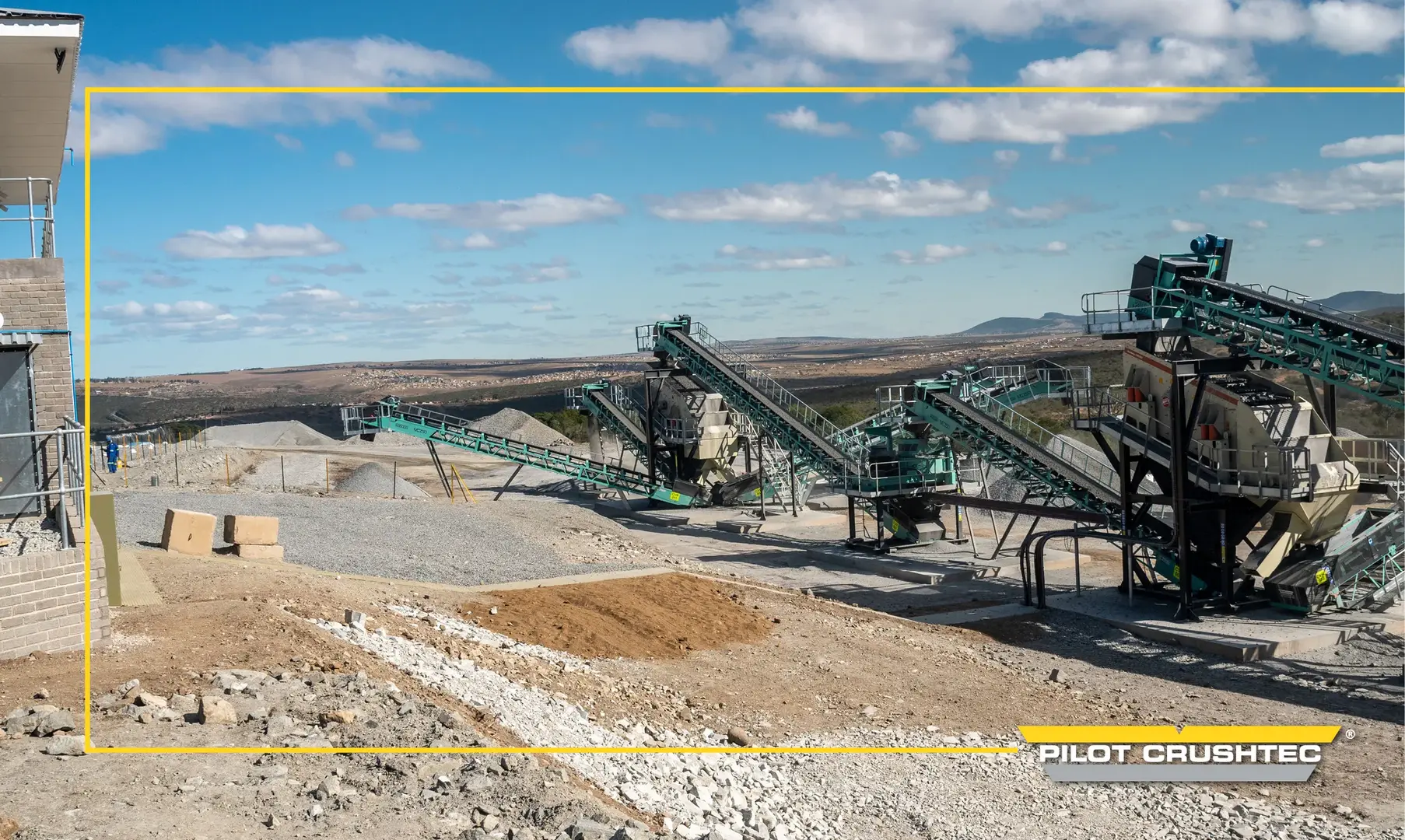

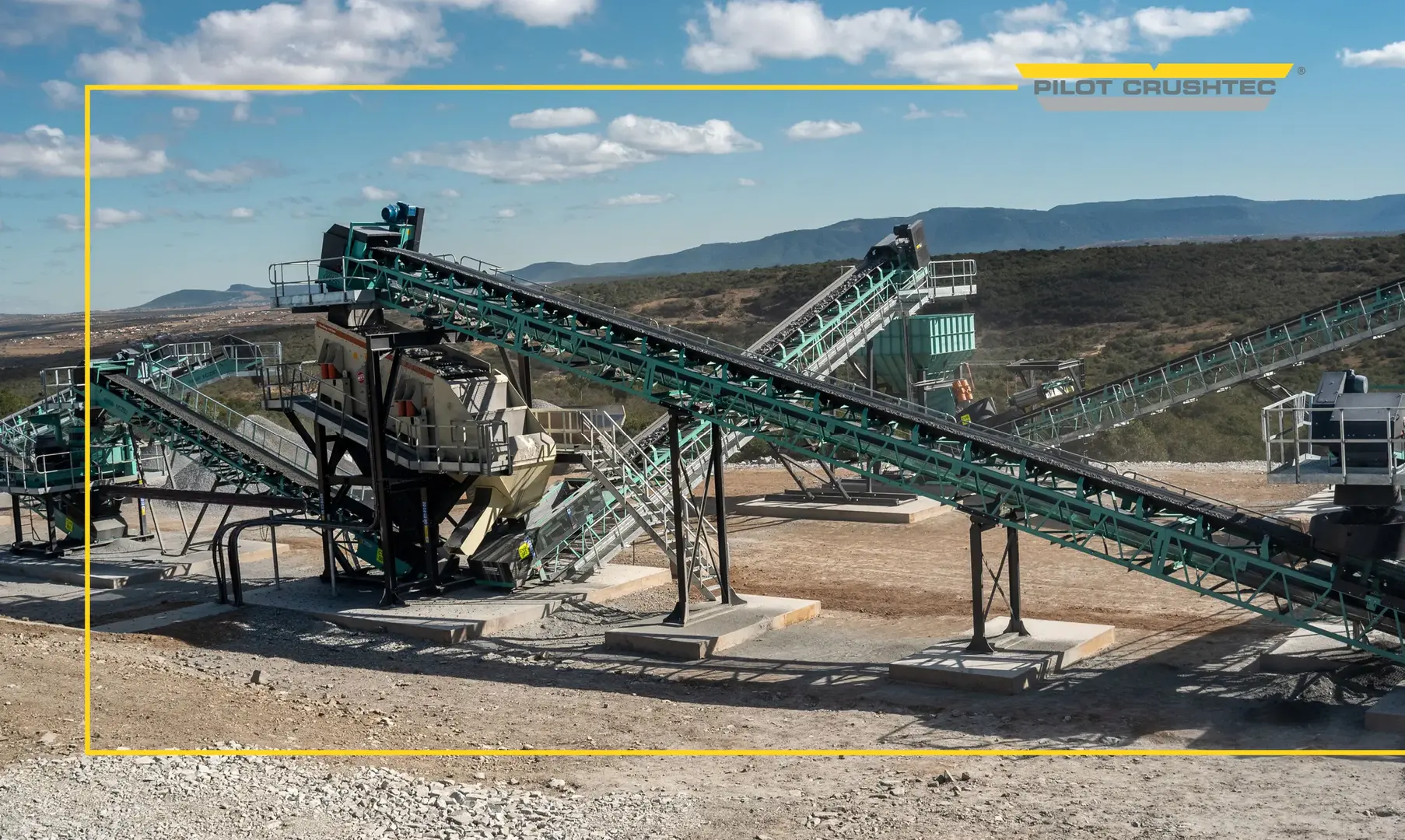

CVB1845 screen with MC750 conveyors
Conveyor head pulley and walkway platform
Modular vibrating screen with access platform

Product Information

PILOT MODULAR CVB1540-3M TRIPLE DECK VIBRATING SCREEN SPECIFICATIONS: METSO CVB1540-3M
Number of Decks 3
Type MV Modular flange mounted vibrator, synchronized by cardan shaft
Support System 4 Spring supports complete with 8 springs
Size 4000mm X 1500mm (13’ X 5’) open screen area
Revs Per Minute 1500rpm
Screen Angle 18 Degrees
Top Deck Square mesh, side tensioned
Bottom Deck Square mesh, side tensioned
Impact Feed Area Steel lined feed plate extension
Drive 15kW, 380V electric motor, pulleys and v-belts, mounted to a self-tensioning Rosta-pivot base
SKID-FRAME
Frame Heavy-duty support structure
Support Structure Inclined adjustable screen angle support frame
Access Wrap around walkways with inclined access ladder
Sandbox Single, centralised outlet
Chutes Roll-away discharge chute for access to decks.
Adjustable chute outlets to suit plant layout requirements.
ESTIMATED WEIGHT
Total 16 000 kg
