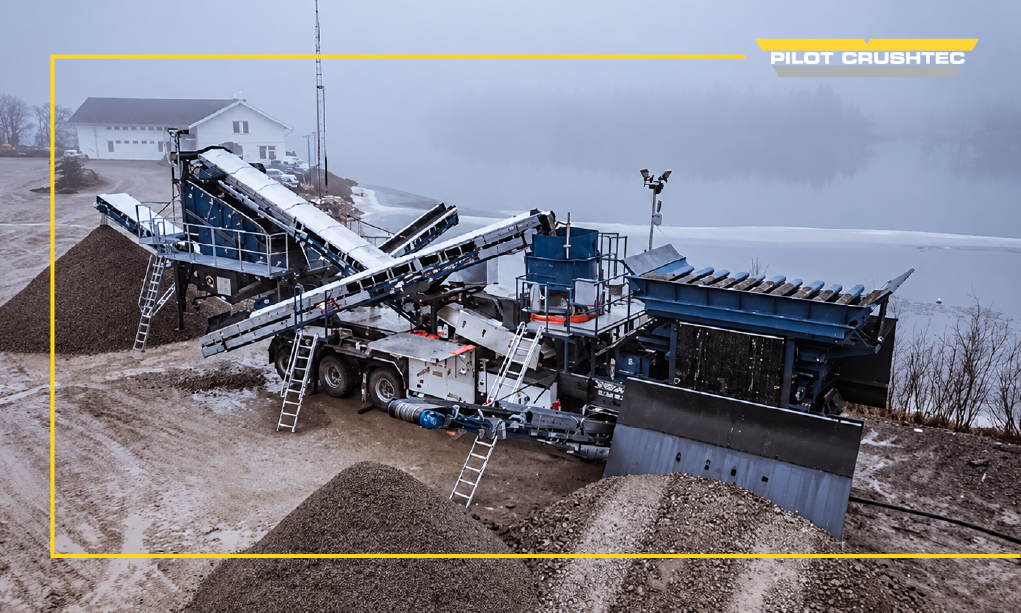

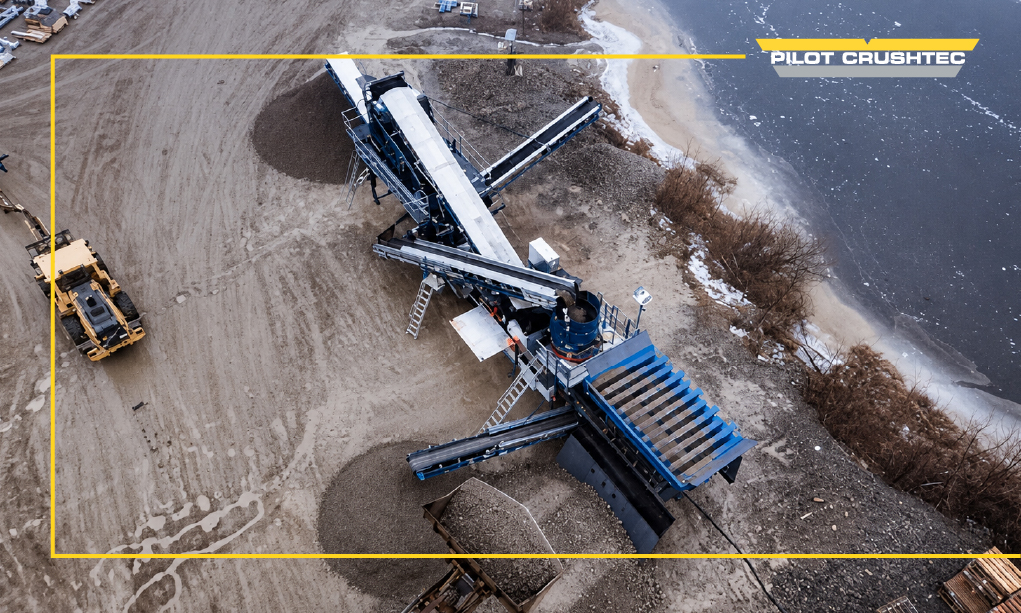

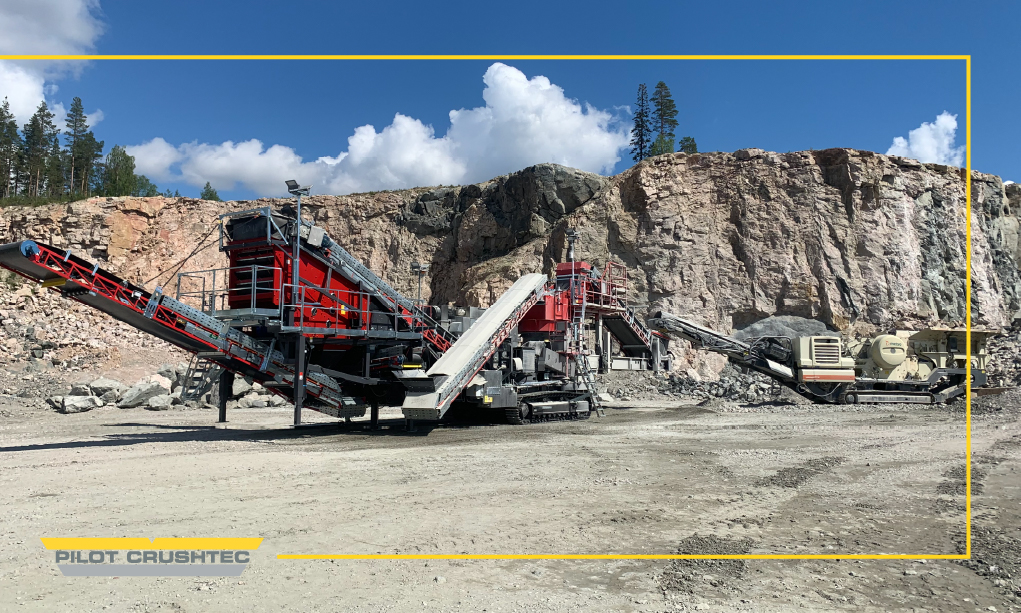

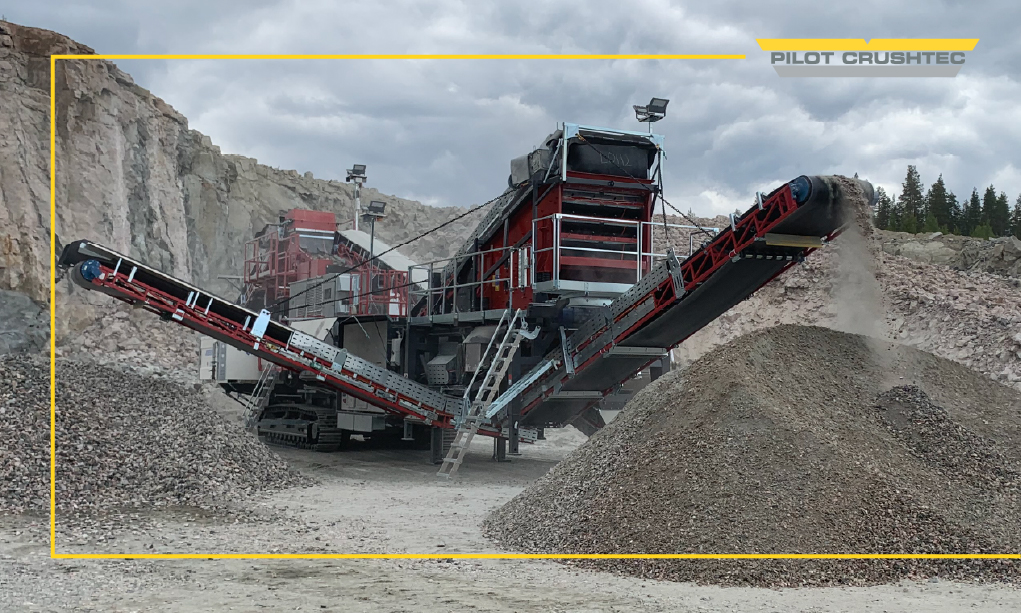

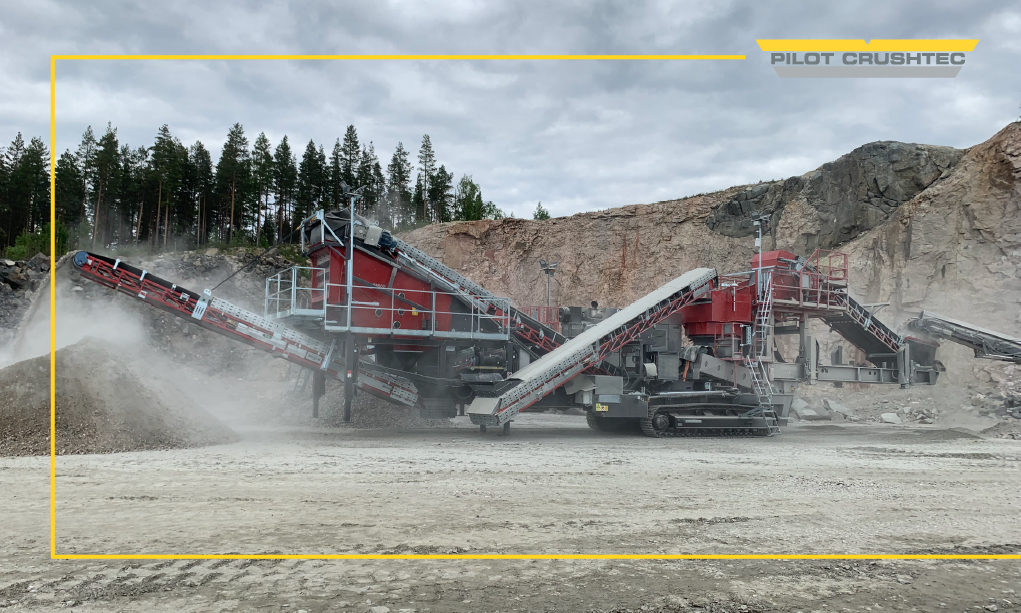

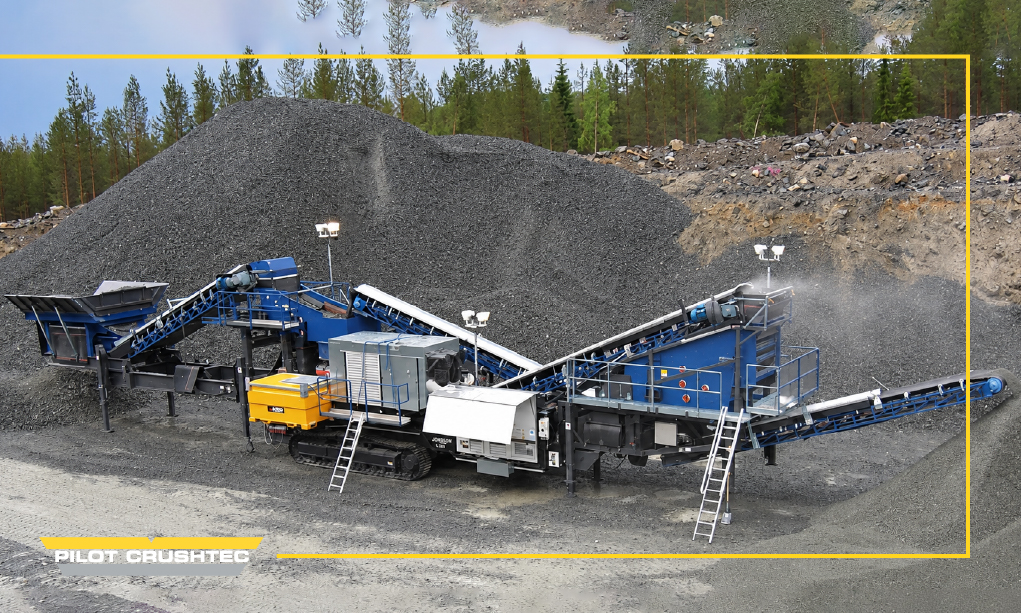

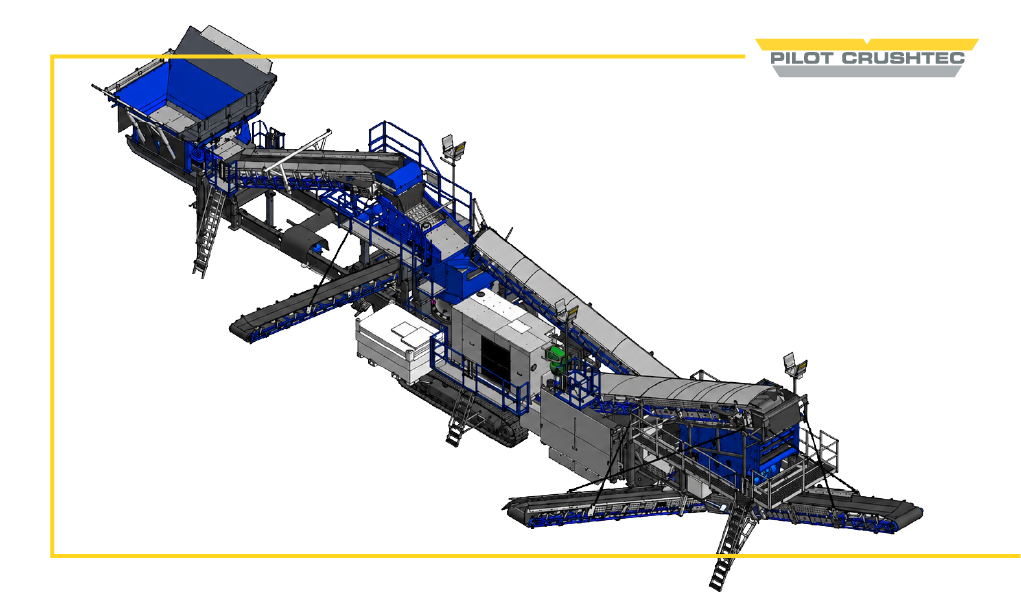

Jonsson L330 Mobile Cone Crusher

The Jonsson L330 Mobile Cone Crusher is a high-capacity mobile crushing and screening solution designed for demanding secondary, tertiary, and quaternary applications. Combining the proven performance of the Nordberg® GP330™ cone crusher with integrated feeding, pre-screening, production screening, and material recirculation, the L330 delivers efficient processing and consistent product quality in a single mobile system.

The L330 combines adjustable crushing performance, intelligent machine control, and a flexible dual-power drive system. The machine can operate from its onboard diesel generator or connect directly to the local electrical grid, allowing operators to select the most economical power source for each site.

Product Downloads

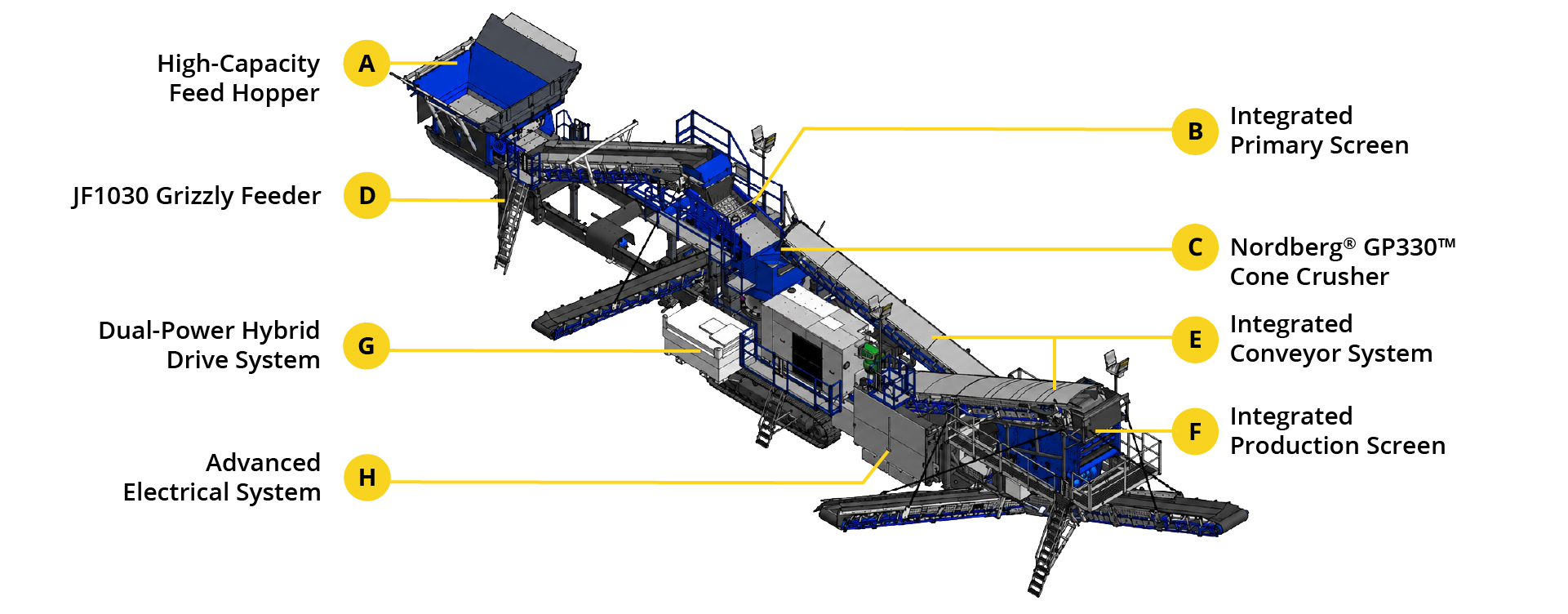

Product Features
icon

High-Capacity Feed Hopper

Hydraulically folding hopper designed for efficient loading and controlled material flow.

icon

Integrated Primary Screen

Pre-screening system removes fines before crushing to improve process efficiency and reduce unnecessary crusher loading.

icon

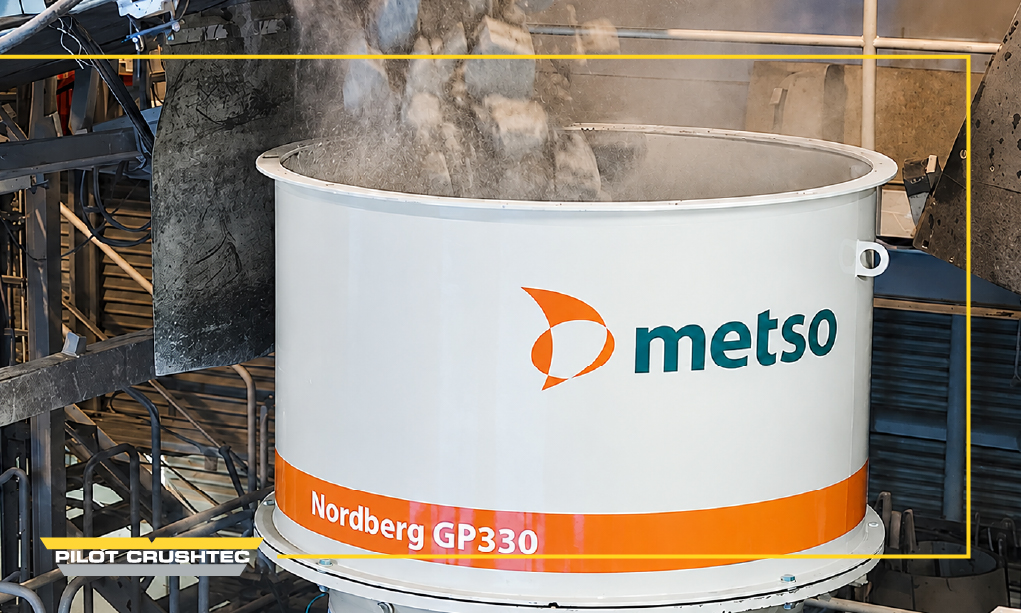

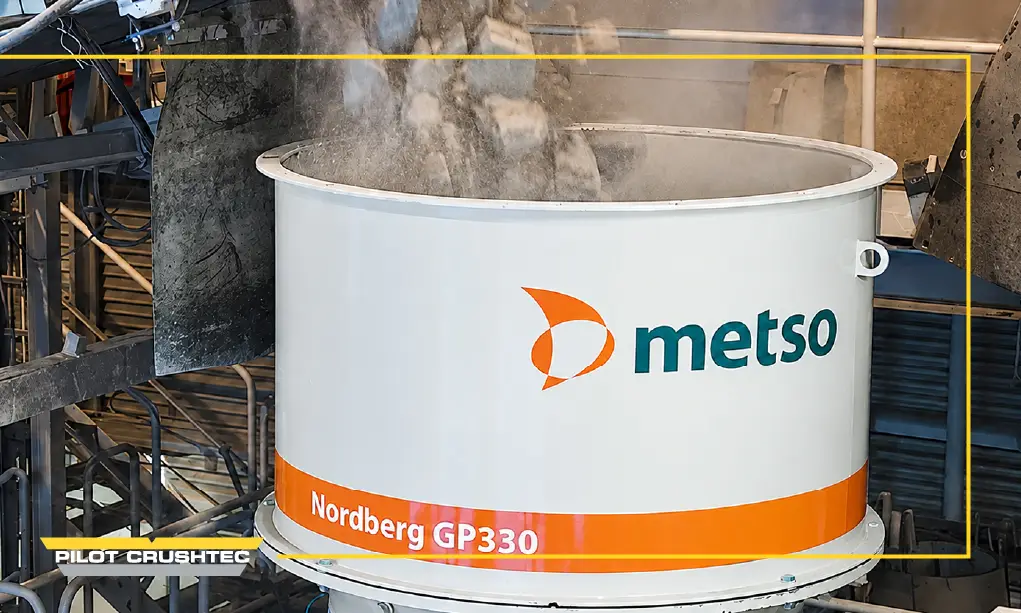

Nordberg® GP330™ Cone Crusher

Versatile cone crusher with hydraulic adjustment and an adjustable stroke for optimised crushing performance.

icon

JF1030 Grizzly Feeder

Heavy-duty feeder with variable speed control and integrated fines removal for consistent crusher feed.

icon

Integrated Conveyor System

Multiple conveyors manage material transfer, product separation, and recirculation throughout the crushing process.

icon

Integrated Production Screen

Production screen supports efficient product sizing and closed-circuit crushing for consistent finished material.

icon

Dual-Power Hybrid Drive System

Flexible diesel-electric drive system allows the most economical power source to be selected for each operating environment.

icon

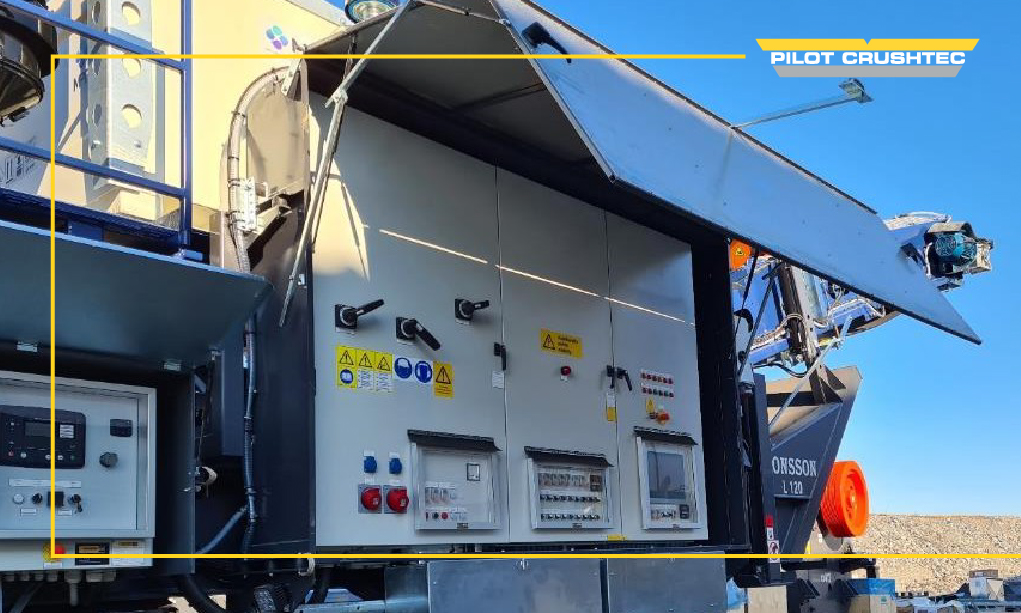

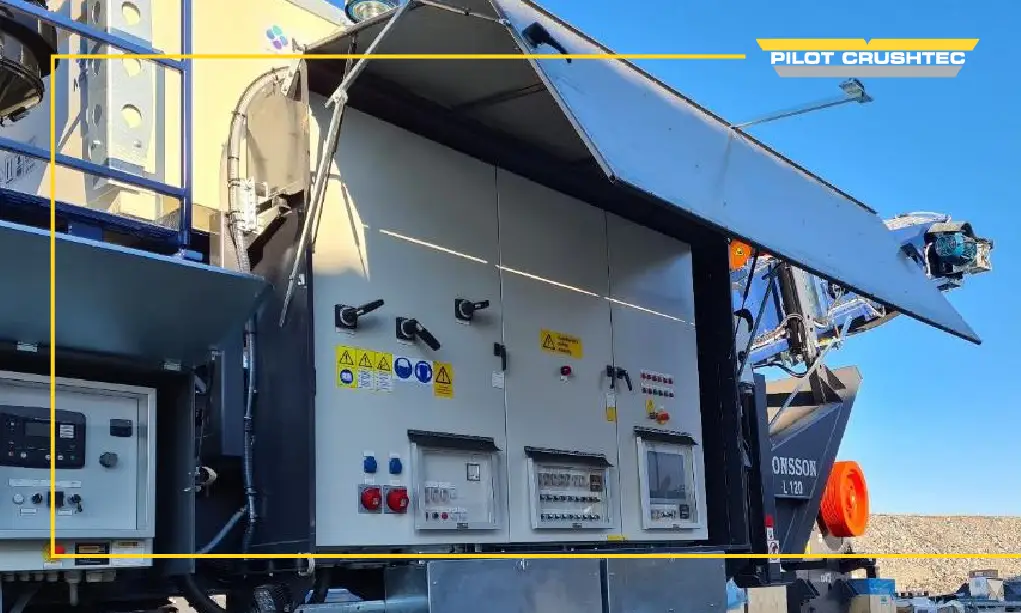

Advanced Electrical System

Protected electrical components, coded wiring, and durable cabling support reliable performance in harsh operating conditions.

Extended Benefits

01Versatile Crushing Applications

The Nordberg® GP330™ can be configured for secondary, tertiary, or quaternary crushing, providing flexibility across a wide range of applications.

02Integrated Crushing and Screening

Feeding, pre-screening, crushing, production screening, and recirculation are combined into one mobile process for streamlined material handling.

03Optimised Product Quality

Adjustable cavity, stroke, and operating parameters enable the crushing process to be configured for the required capacity and finished product.

04Flexible and Cost-Efficient Power Options

The L330 can operate from the onboard diesel generator or connect to the local electrical grid, allowing operators to select the preferred power source.

05Enhanced Operational Control

The JonSys control system allows production settings to be adjusted while displaying production data, fuel consumption, utilisation, and active alarms.

06Reliable Heavy-Duty Construction

Wear-lined material handling areas, protected electrical modules, and durable heat-resistant cabling support reliable operation in demanding conditions.

07Improved Operator Efficiency

The optional vehicle screen allows the crusher to be monitored and controlled from an excavator or tractor, reducing the need for the operator to leave the cabin.

08Production Visibility

The optional JMS platform provides machine status, production information, operating data, reporting support, and access to digital documentation.

09Sustainability-Focused Operation

Direct connection to grid electricity provides an alternative to diesel-generated power where a suitable electrical supply is available.

Product Information

CRUSHER
Crusher Nordberg® GP330™ Cone Crusher
Crushing Application Secondary, tertiary, and quaternary
Crusher Power 250 to 315 kW
Bare Crusher Weight 15 700 kg
Maximum Feed Opening 215 mm
Hydraulic Adjustment Standard
Stroke Adjustable
Stroke Options 18, 22, 25, 28, 32, 36, and 40 mm
Maximum Crusher Capacity Up to 420 mtph, application dependent
FEEDER
Feeder Jonsson JF1030
Feeder Width 1 000 mm
Feeder Length 3 000 mm
Grizzly Length 2 x 750 mm
Feeder Vibrating Units 2 x 5.5 kW
PRIMARY SCREEN
Primary Screen JS1214/3
Primary Screen Size 1 220 x 1 400 mm
Primary Screen Area 1.68 m²
Primary Screen Power 2 x 2.5 kW
PRODUCTION SCREEN
Production Screen JS1632/3W
Production Screen Size 1 630 x 3 200 mm
Production Screen Area 5.12 m²
Production Screen Power 2 x 10 kW
HOPPER
Feed Hopper Capacity 12.5 m³
Hopper Feed Width 3 000 to 4 000 mm
PLANT SYSTEM
Control System JonSys
Drive System Hybrid dual-power, diesel generator or grid connection
Generator Engine Volvo
Mobility Tracked
