Product Features

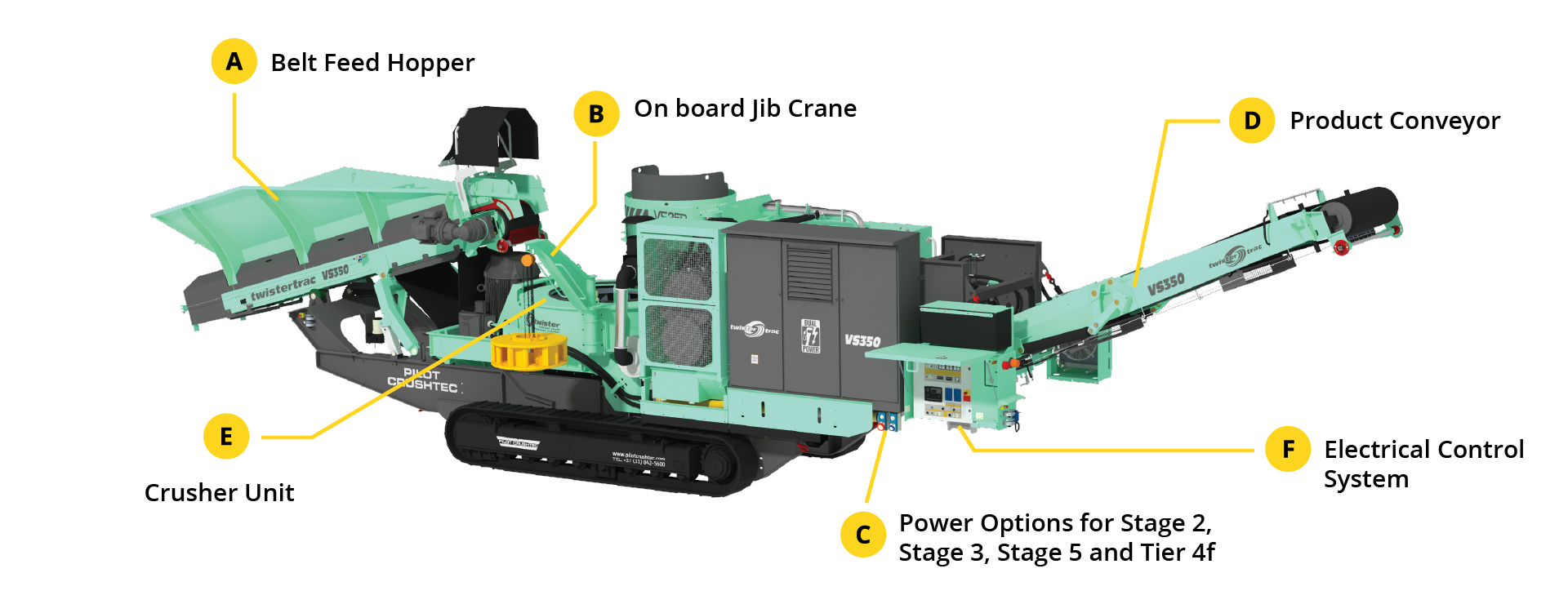

Belt Feed Hopper
The 6m3 Belt Feed Hopper is a heavy-duty, high torque electric feeder which is equipped with a variable speed drive to control feed ratio to the crusher for optimal performance. This feed hopper can be fed by a front end loader or ideally from the rear by another crusher or screen.
On board Jib Crane
The TwisterTrac VS350 is equipped with an on-board, heavy-duty jib crane to improve convenience during maintenance when inspecting the rotor or performing maintenance on the rotor.
Power Options for Stage 2, Stage 3, Stage 5 and Tier 4f
The TwisterTrac VS350 has Diesel/Electrical or Diesel/Hydraulic drive configurations with different emission options to suit local requirements to drive the VSI crusher and auxiliary systems, ensuring high efficiency and compliance with stringent emissions standards.
Product Conveyor
The discharge conveyor is a 1.2m wide belt which reaches a height of 3.7m for stockpiling crushed materials or discharge into a screen. This conveyor includes a heavy-duty high torque electric drive and has belt adjustment at both the drive and Tail end.
Crusher Unit
The VS350 Vertical shaft autogenous crusher is a high tonnage VSI which features a heavy-duty grease lubricated bearing shaft, a heavy-duty tapered shaft, a variety of rotor options – application dependant, rubber mountings and a rotor bypass system for power management in high tonnage applications.
Electrical Control System
The control system is a simple and intuitive control panel which displays critical operational information on a display panel.
