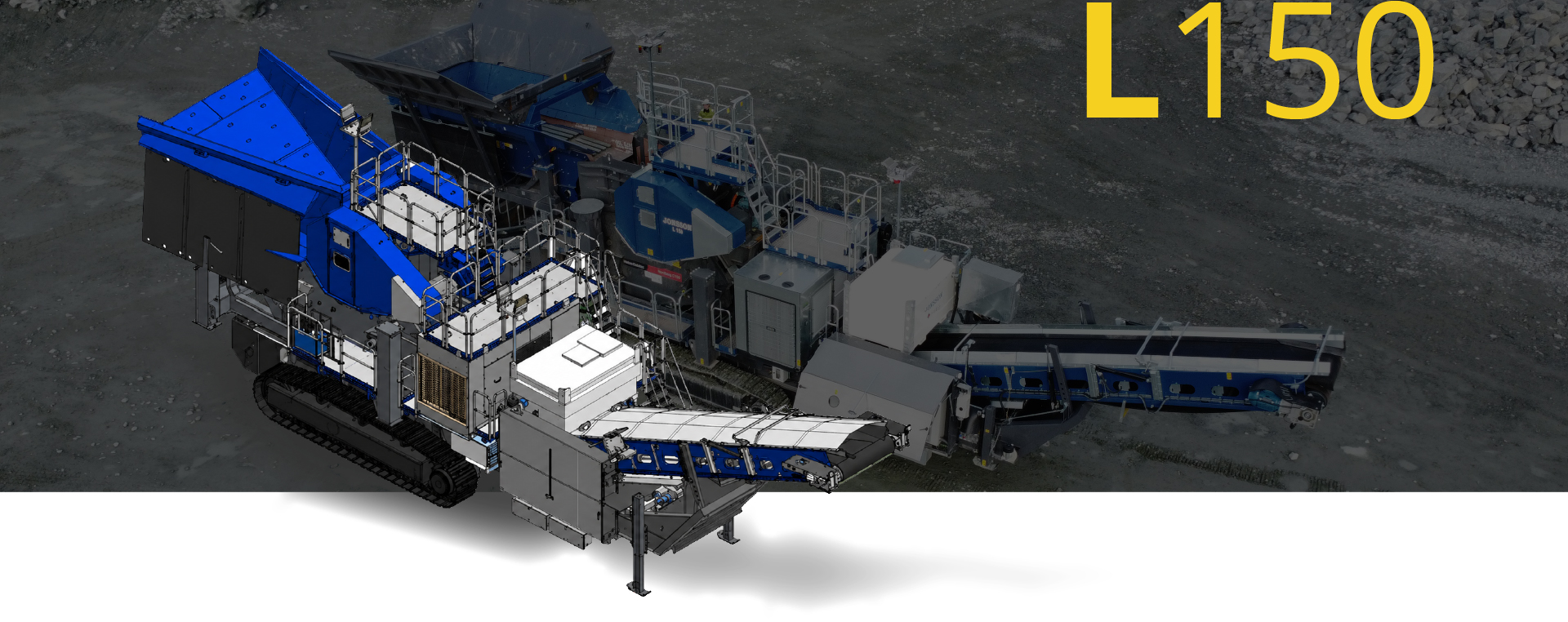

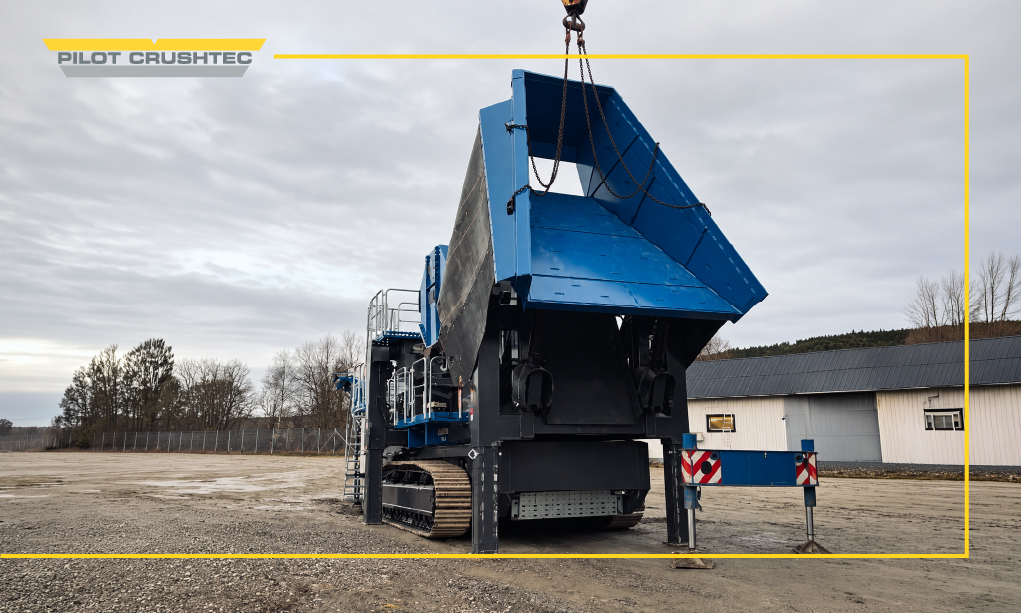

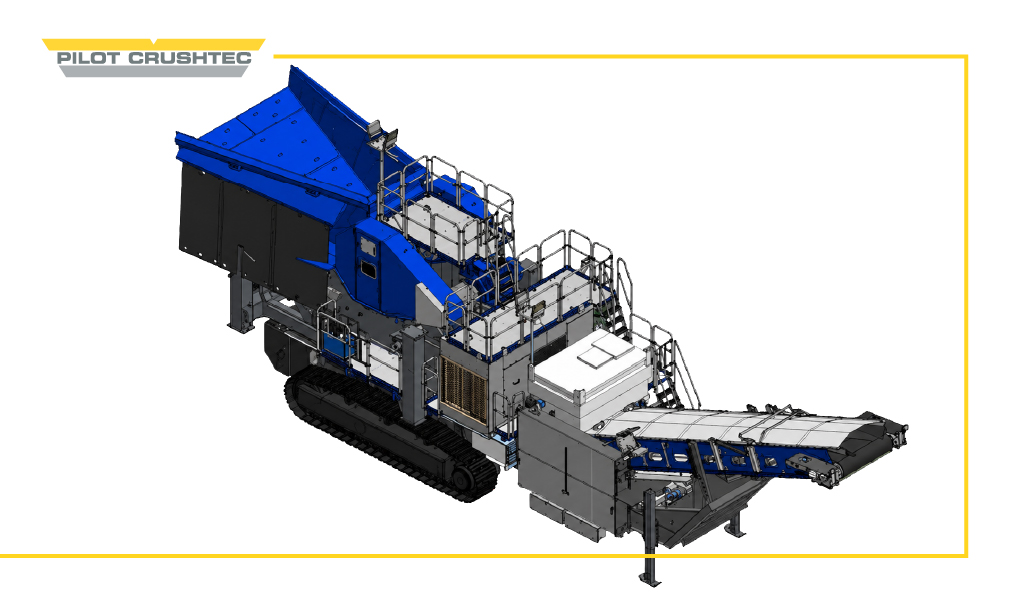

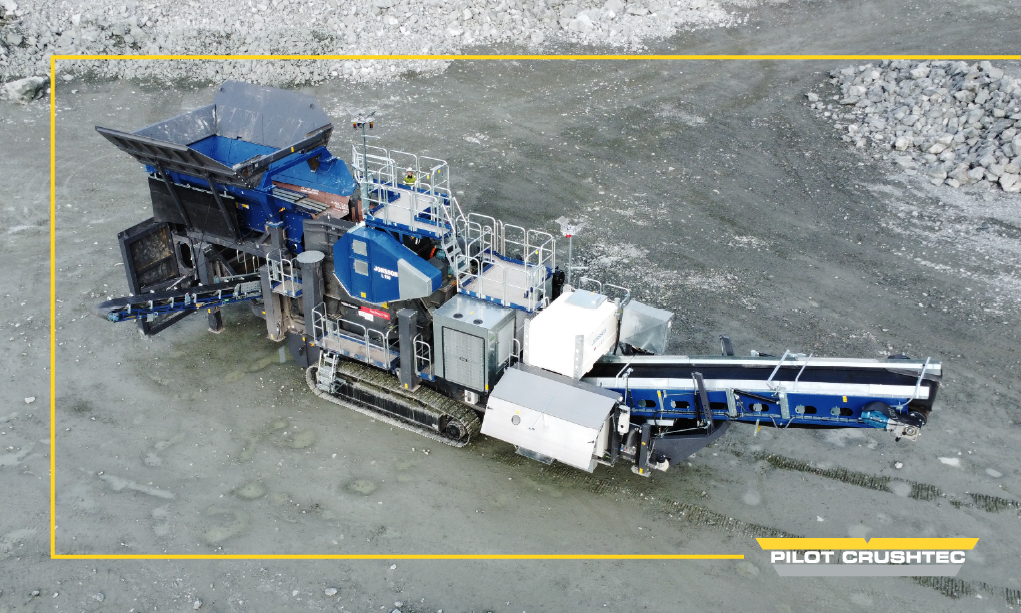

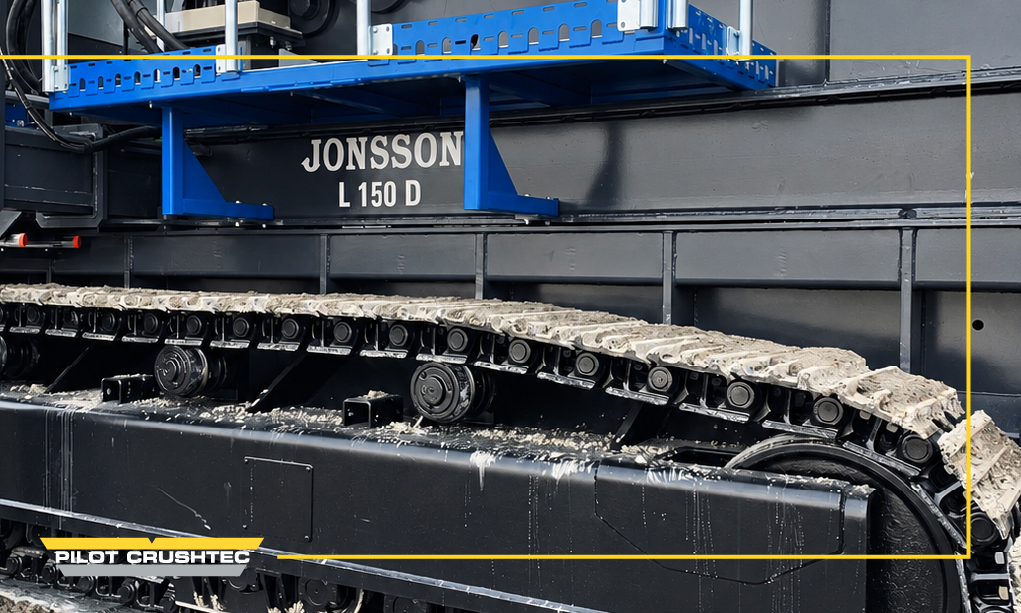

Jonsson L150 Mobile Jaw Crusher

The Jonsson L150 Mobile Jaw Crusher is a heavy-duty mobile crushing solution designed for demanding primary crushing applications. Combining the proven performance of the Nordberg® C150 jaw crusher with Jonsson’s hybrid drive technology, the L150 delivers powerful crushing performance, operational flexibility, and reliable material handling.

The L150 combines robust components, intelligent control, and flexible power options to support efficient operation in demanding mining, quarrying, and aggregate environments. Operators can run the machine from the onboard diesel generator or connect it directly to the local electrical grid.

Product Downloads

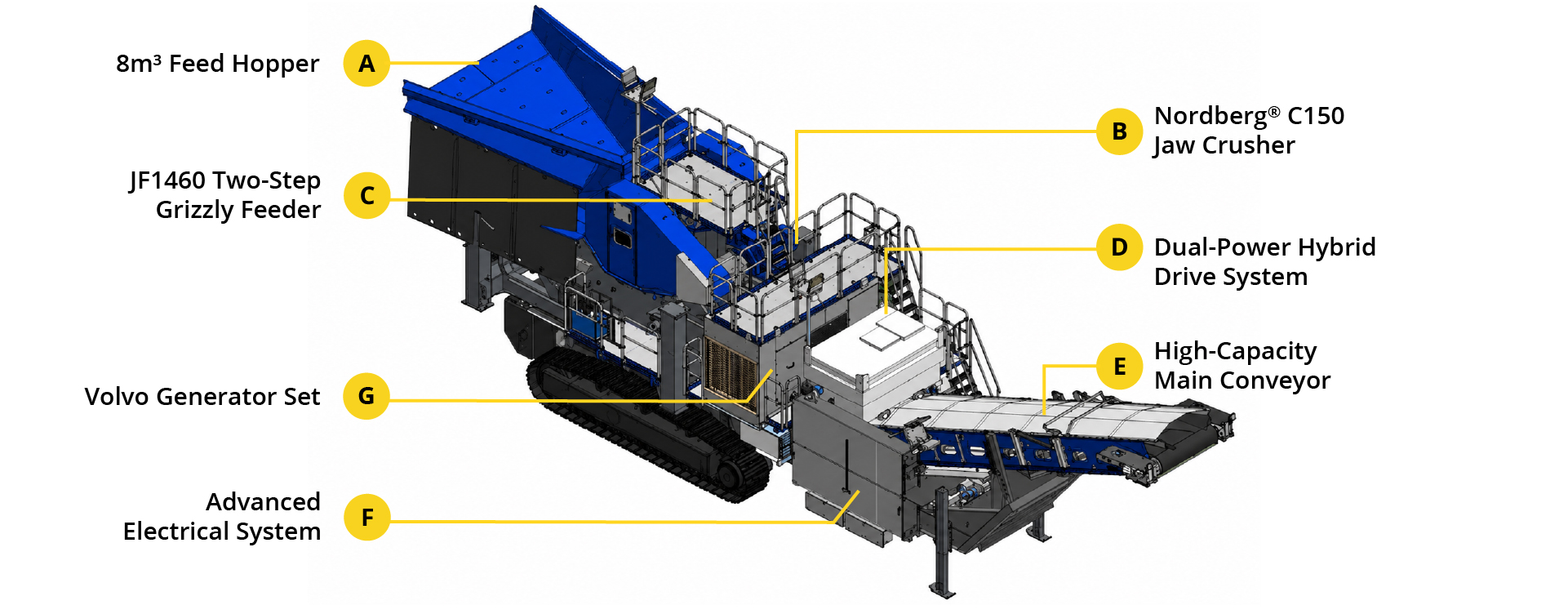

Product Features
icon

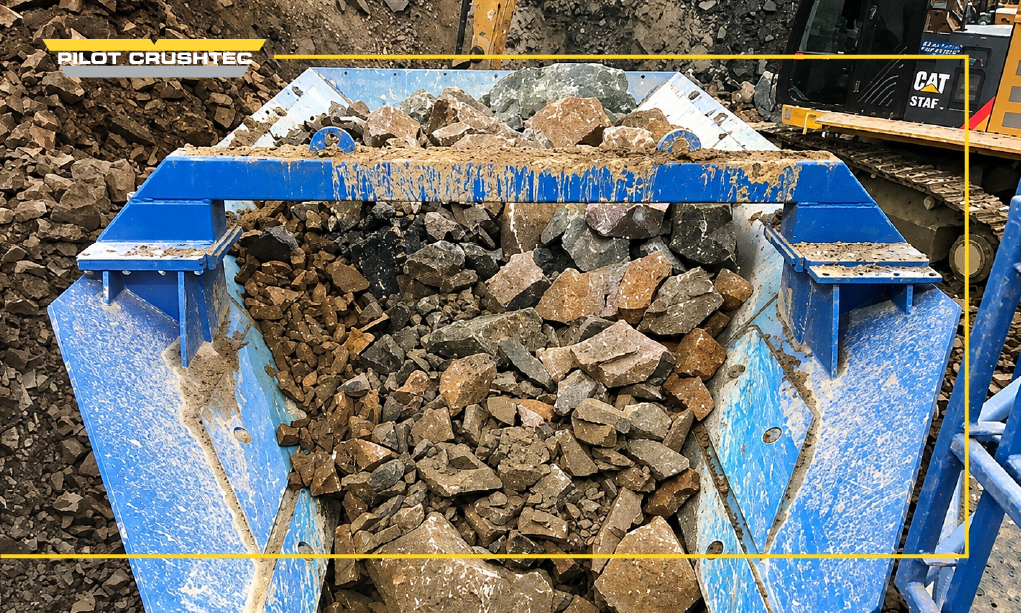

8m3 Feed Hopper

Expandable feed hopper designed for efficient loading and uninterrupted material flow.

icon

Nordberg® C150 Jaw Crusher

Heavy-duty jaw crusher engineered for powerful and reliable primary crushing performance.

icon

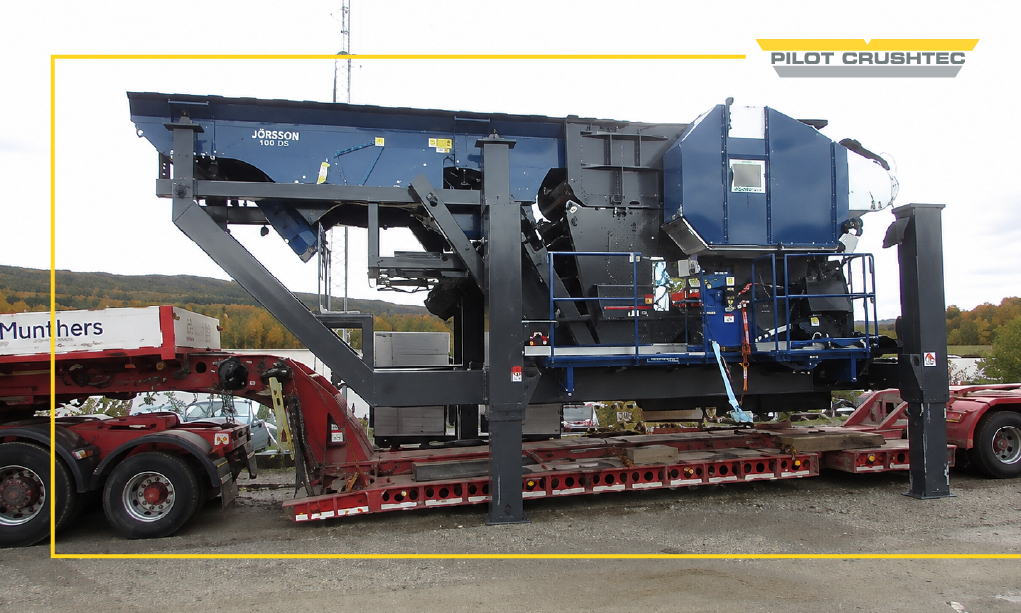

JF1460 Two-Step Grizzly Feeder

Heavy-duty feeder with variable speed control and integrated fines removal for consistent crusher feed

icon

Dual-Power Hybrid Drive System

Flexible diesel-electric drive system that allows the most economical power source to be selected for each operating environment.

icon

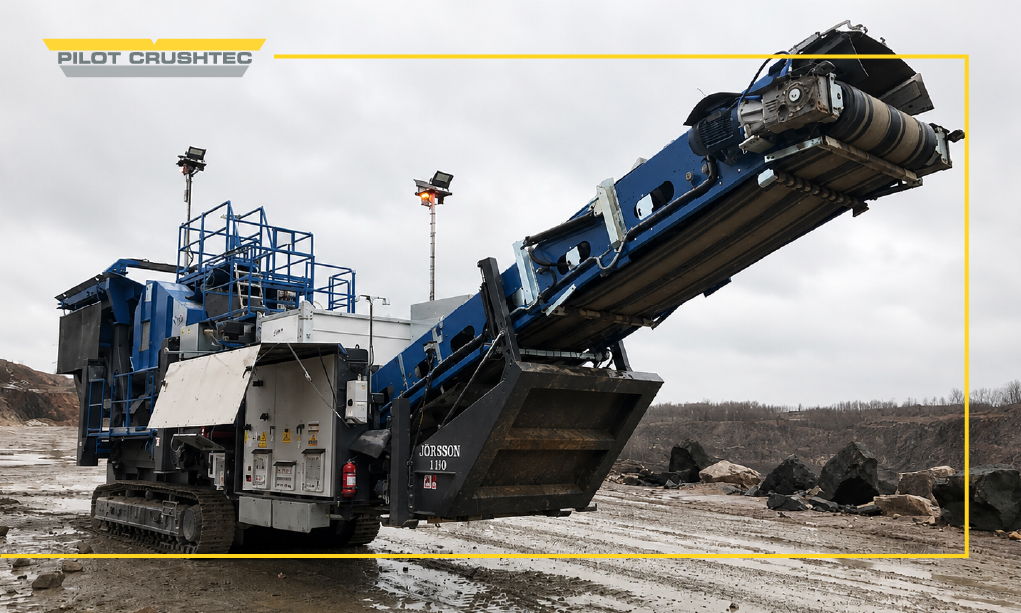

High-Capacity Main Conveyor

Heavy-duty conveyor system with dual electric drive for efficient material transfer and optional production monitoring.

icon

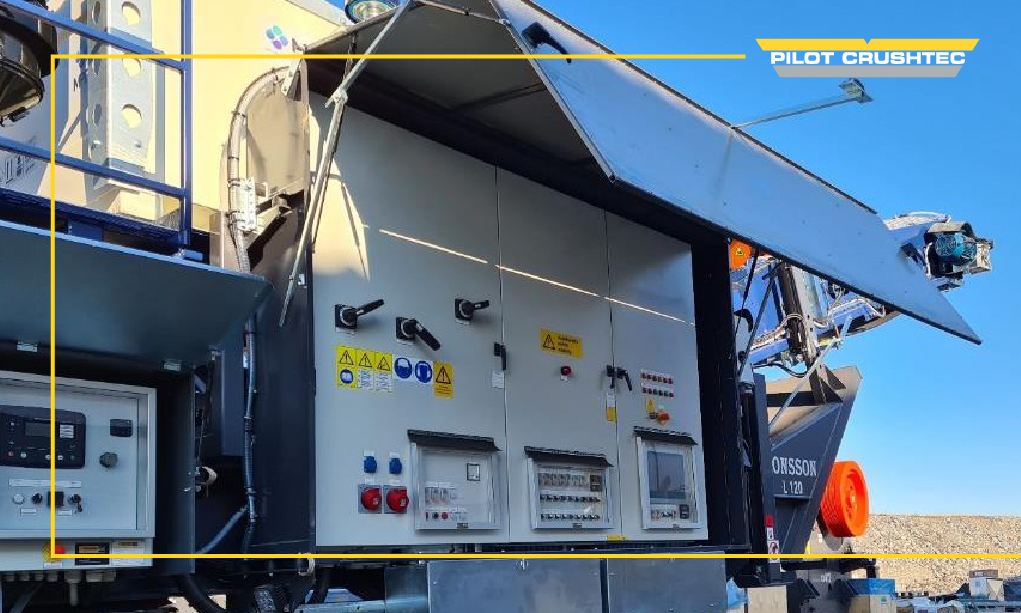

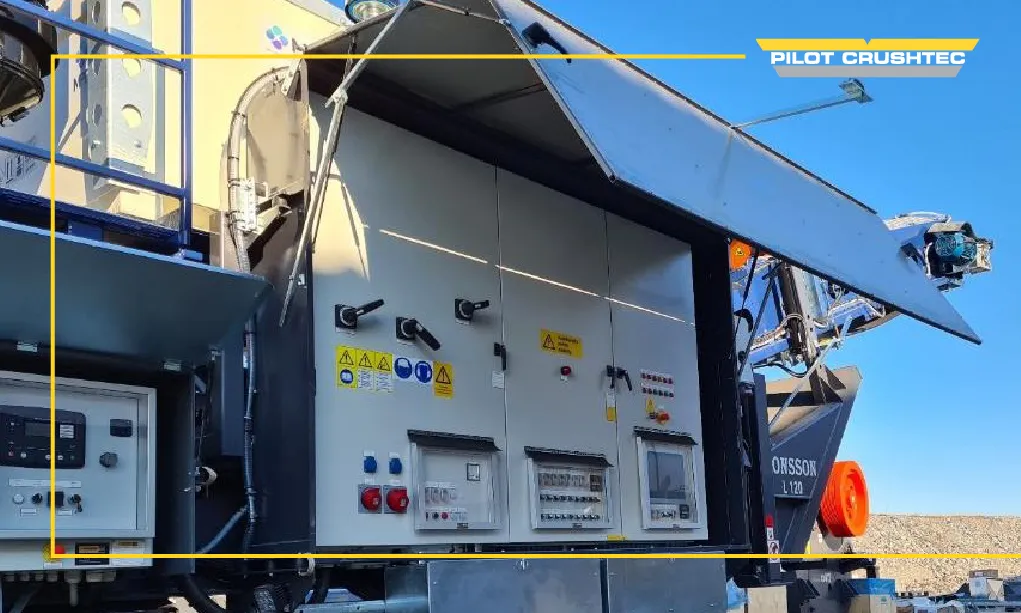

Advanced Electrical System

Protected electrical components and durable cabling ensure reliable performance in harsh operating conditions

icon

Volvo Generator Set

Reliable power unit designed for efficient operation and extended runtime.

Extended Benefits

01High-Capacity Primary Crushing

The Nordberg® C150 jaw crusher and heavy-duty feeding system provide powerful primary crushing for demanding applications

02Flexible and Cost-Efficient Power Options

The machine can operate from the onboard diesel generator or connect directly to the local electrical grid, allowing the most economical power source to be selected.

03Enhanced Operational Control

The JonSys control system provides access to production data, fuel consumption, machine utilisation, and active alarms while allowing production parameters to be adjusted.

04Reliable Performance in Harsh Conditions

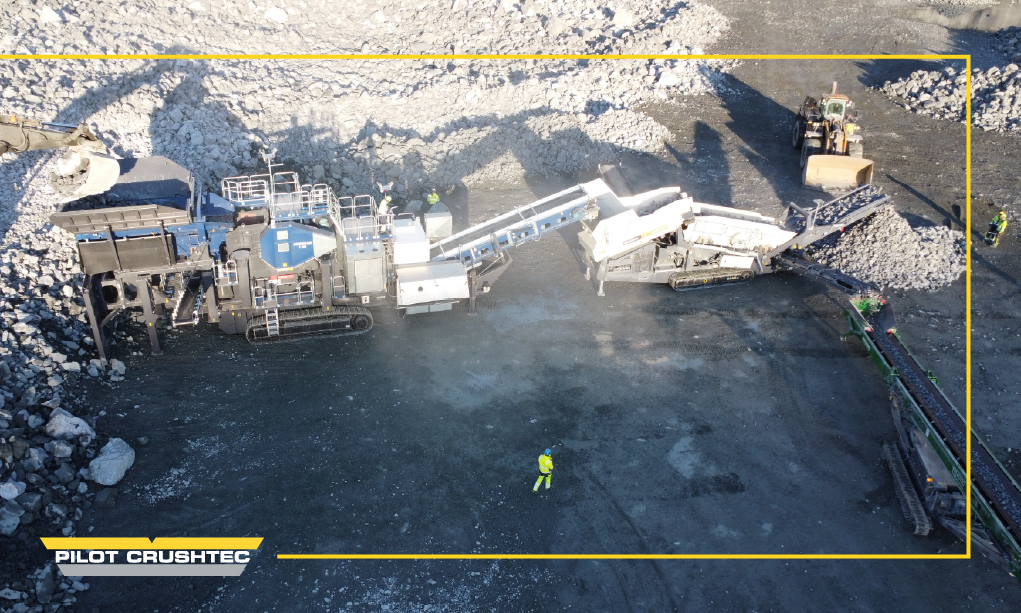

Engineered for mining, quarrying, recycling, demolition, coal, sand, and aggregate applications, the machine delivers dependable performance even in tough, high-wear operating environments.

05Improved Operator Efficiency

The optional vehicle panel allows operators to monitor and control the machine from an excavator or tractor, reducing the need to leave the cab.

06Production Visibility

The optional JMS monitoring system provides machine status, production information, operating data, reporting support, and access to digital documentation.

07Sustainability-Focused Operation

Connection to the electrical grid provides an alternative to diesel-generated power and supports more economical energy use where grid power is available.

Product Information

CRUSHER
Crusher Nordberg® C150 Jaw Crusher
Feed Opening 1400 mm x 1200 mm
Crusher Power 200 kW
Crusher Speed 220 rpm
Basic Crusher Weight 50 950 kg
FEEDER
Feeder Jonsson JF1460
Feeder Width 1400 mm
Feeder Length 5600 mm
Grizzly Length 2 x 1200 mm
Standard Grizzly Spacing 100 mm
Vibrating Units 2 x 13 kW
HOPPER
Feed Hopper Capacity 8 m³, extendable to 18 m³
Feed Width 3200 mm, extendable to 5450 mm
MAIN CONVEYOR
Main Conveyor Length 16 580 mm
Main Conveyor Width 1600 mm
Main Conveyor Drive 2 x 18.5 kW electric
Main Conveyor Discharge Height 4050 mm to 5000 mm
PLANT SYSTEM
Drive System Hybrid dual-power, diesel generator or grid connection
Control System JonSys
Engine Volvo
